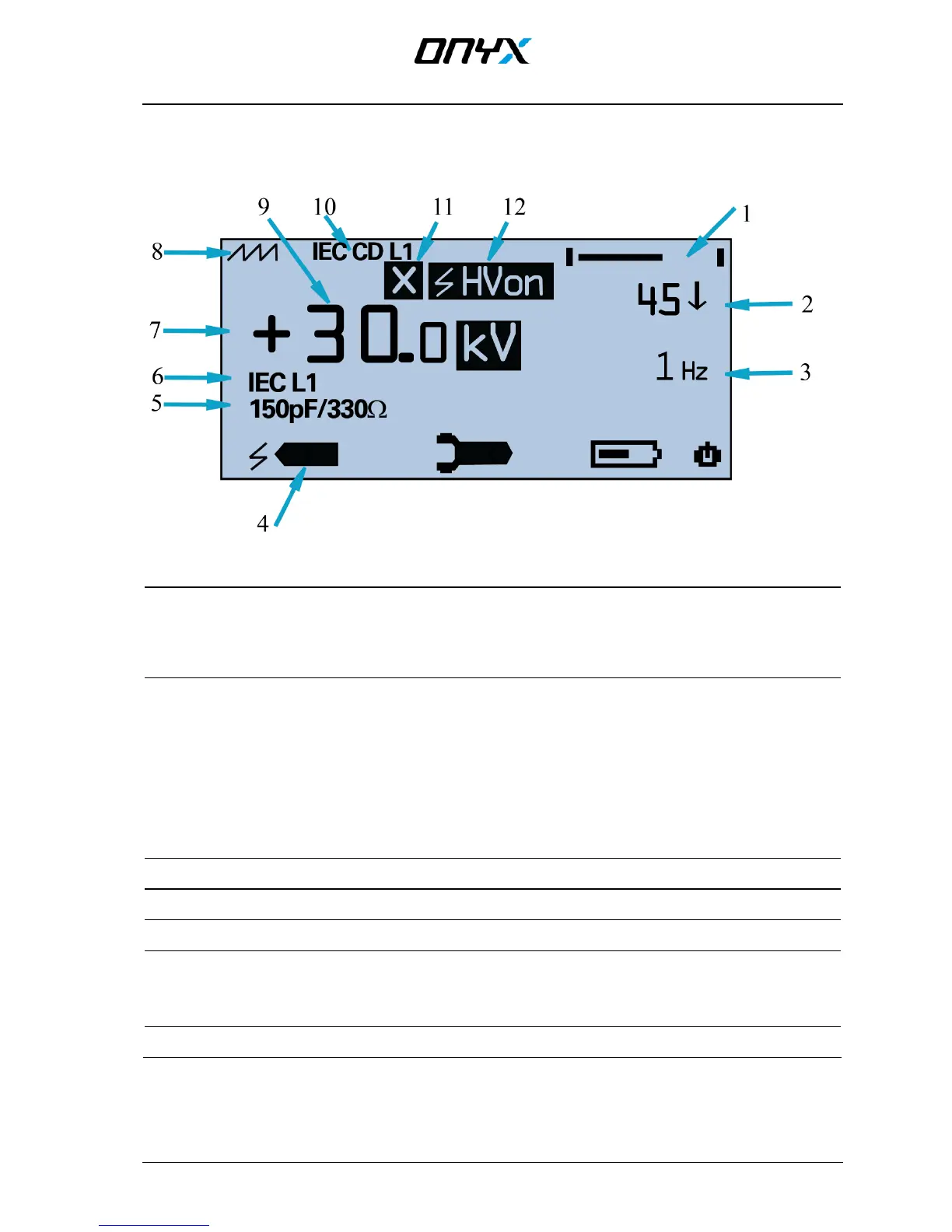

Fig. 12 during testing display
(1)
Bar graph Displays sequence progress if “Alt.Polarity” and/or “Sweep U” function has
been selected.
If sequence is finished, beeper beeps thrice.
Releasing and pressing again the Trigger will reset the bar graph an restart
the sequence
(2)
Discharge counter
The display counter will count up or down depending on the settings
" " will count up, indicating the current number of discharges.
Once the trigger button is released, the test will stop. When the trigger is
pressed again, the counter will continue to count up from the previous value.
Resetting the counter is possible via the Counter menu or the smart key
" " will count down from the user preselected value, indicating the value of
the remaining discharges. When the Counter reaches “0”, the test will stop
and beeper beeps thrice. Resetting the Counter is possible via the Counter
menu or the smart key
(3)
Repetition / frequency Displays selected frequency
(4)
Discharge mode Displays discharge mode
(5)
RC module Displays current RC module
(6)
IEC level If a certain test level (L1/L2/L3/L4) according to IEC 61000-4-2 is selected, this
is indicated in the display.
Please note that according to the standard, test levels are different for air
discharge and contact discharge mode
(7)
Polarity Displays current polarity
