ONYX Electrostatic Discharge Simulator

5.7 Test setup

To find out more about test levels and test setups, please refer to the relevant standards.

Accessories such as VCP, HCP, test table, 2x470 kOhm resistor cable, etc. are available from Haefely.

Please refer to section "Accessories and Options".

5.7.1 Test setup example according to IEC/EN 61000-4-2 edition 2

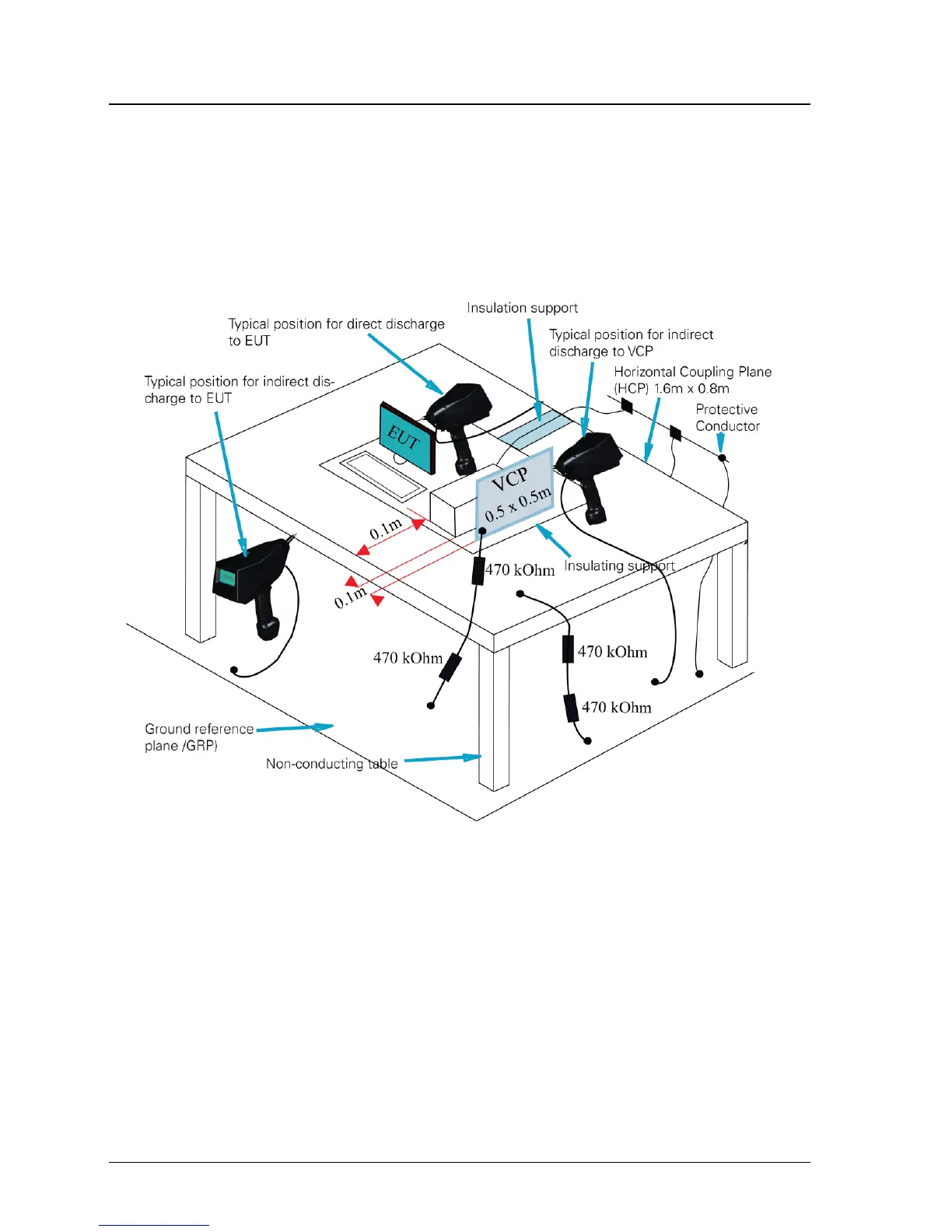

Fig. 14 test setup example for table-top equipment according to IEC 61000-4-2 edition 2
