14
ONYX Electrostatic Discharge Simulator
5.4.1 Sub-menu 1
The sub-menu section enables you to change ONYX settings, define, save and open pre-defined tests, as well as view
environmental conditions, define smart key functions, display system info etc.
To enter the menu pages follow the instructions in figure 10. To scroll through menus and make selections, please use
the instructions mentioned in figure 11.
Alt.Polarity Switch to “ON” position to activate automatic polarity switching. Polarity will toggle
when “Pulses/Steps” impulses are finished
Can be used in combination with "Sweep U" function
Sweep U "ON" position activates the sweep voltage function
Can be used in combination with "Alt.Polarity" function
Start U Enter the starting voltage of your "Sweep U" sequence
(1-16kV ONYX 16 / 1-30kV ONYX 30)
Delta U Enter the voltage step of your "Sweep U" sequence
(0,1kV … 10kV / 0.1kV steps
Stop U
Final test voltage level of your "Sweep U" sequence
(1-16kV ONYX 16, 1-30kV ONYX 30)
Pulses/Step
Number of pulses per test step of your "Alt.Ploarity" and/or "Sweep U" sequence
(1 … 999)
Save Setup
Save and/or rename current setup
Note that to save a setup, you will need to overwrite one of the 8 factory-predefined
setups.
To change the name:
(1) enter “Save Setup” page
(2) touch the name displayed in the middle of the screen
(3) use the Up/Down and Left/Right keys to make name changes
(4) press “√”to save changes or “X” to exit without changing

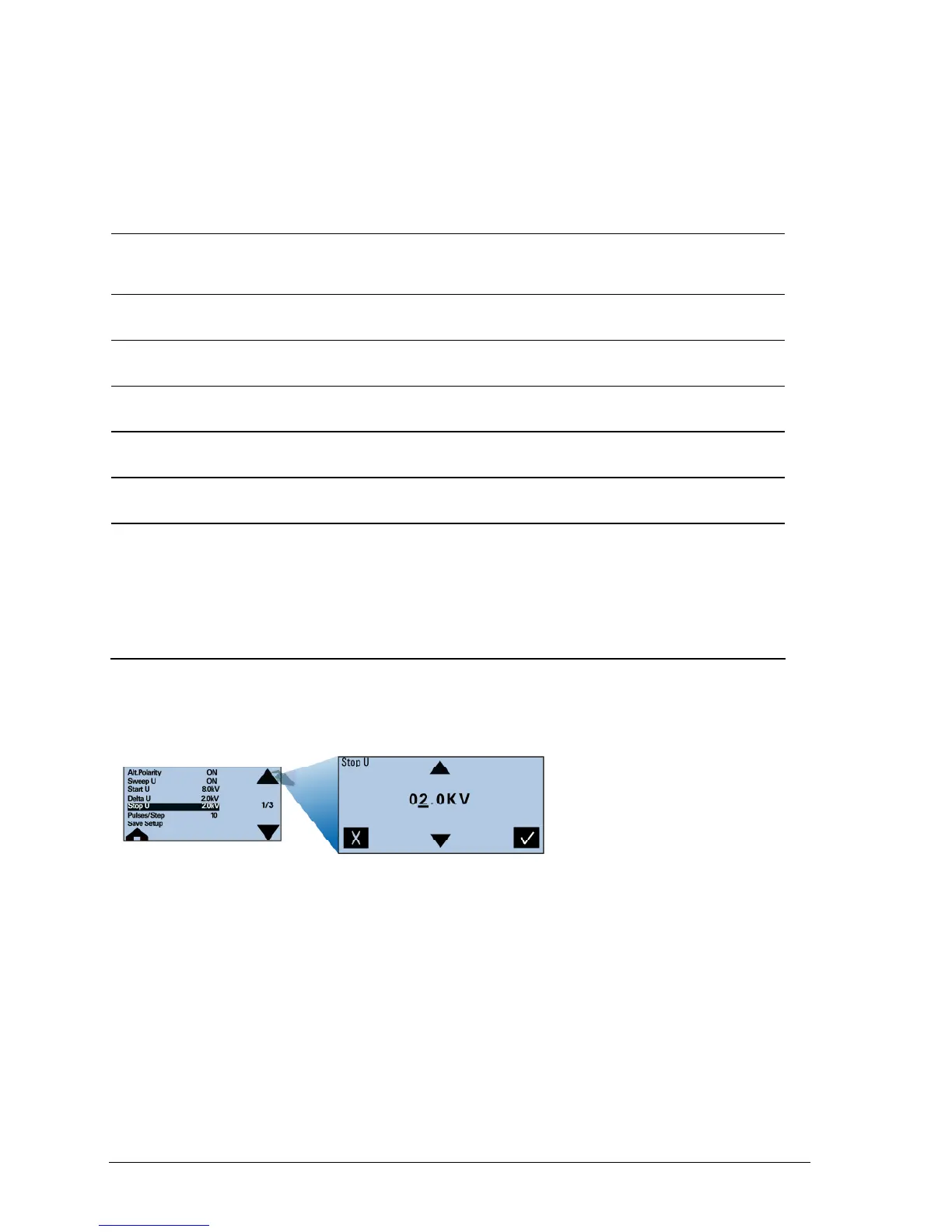

Example of a test sequence using "Alt.Polarity and "Sweep U" function
Enter the values as displayed on
the menu page 1/3 on the left, and
return to main menu.
By pressing the trigger button the
ONYX will perform the following
test sequence:
(1) 10x impulses at +8kV
(2) 10x impulses at -8kV
(3) 10x impulses at +6kV
(4) 10x impulses at -6kV
(5) 10x impulses at +4kV
(6) 10x impulses at -4kV
(7) 10x impulses at +2kV
(8) 10x impulses at -2kV
To Next Page
