ZOOM: Setting the Flash Coverage and Using
the Wide Panel
The flash coverage can be set automatically or manually. It can be set
to match the lens focal length from 24 mm to 105mm. Also, with the
built-in wide panel, the flash coverage can be expanded for 14mm
wide-angle lenses.
• If you set the flash coverage manually, make sure it covers the lens
focal length so that the picture will not have a dark periphery.

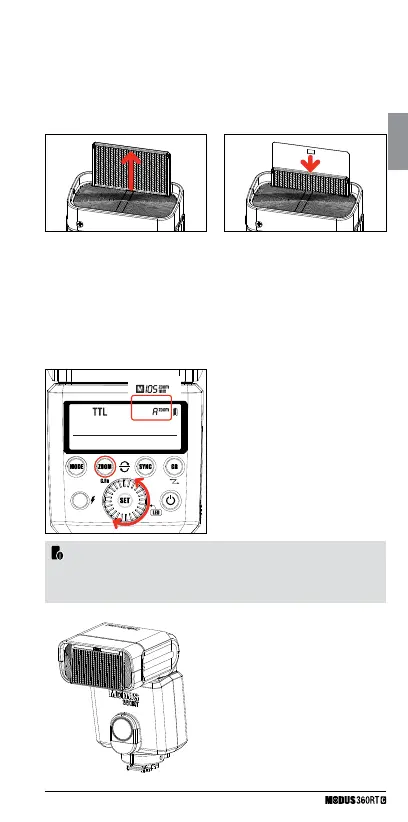

1. Point the flash head upward by 90°
2. Pull out the wide panel. The catchlight panel will come out at the same time
3. Push the wide panel back in
• Push in only the wide panel
• Follow the same procedures as for bounce flash
For Manual Zoom mode, press the
<ZOOM/C.Fn> button.
• Turn the Select Dial to change the
flash coverage
• If < A > is displayed, the flash
coverage will be set automatically
Using the Wide Panel
Pull out the wide panel and place
it over the flash head as shown.
The flash coverage will then be
extended to 14 mm.
• The catchlight panel will come
out at the same time. Push the
catchlight panel back in.
