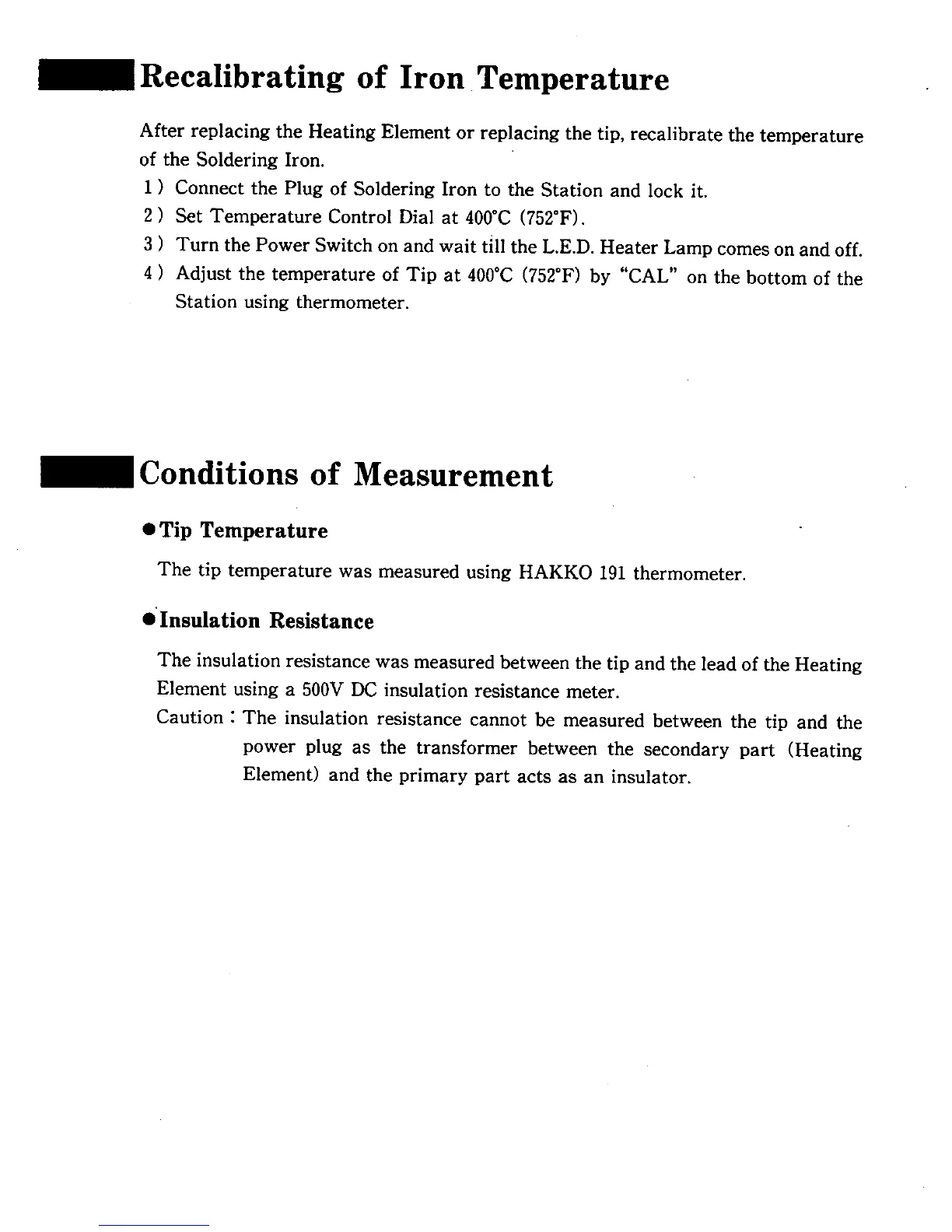

Recalibrating of Iron Temperature
After replacing the Heating Element or replacing the tip, recalibrate the temperature
of the Soldering Iron.
1 ) Connect the Plug of Soldering Iron to the Station and lock it.
2 ) Set Temperature Control Dial at 400"C (752°F).
3 ) Turn the Power Switch on and wait till the L.E.D. Heater Lamp comes on and off.
4 ) Adjust the temperature of Tip at 400"C (752"F) by "CAL" on the bottom of the
Station using thermometer.
Conditions of Measurement
• Tip Temperature
The tip temperature was measured using HAKKO 191 thermometer.
• Insulation Resistance
The insulation resistance was measured between the tip and the lead of the Heating
Element using a 500V DC insulation resistance meter.
Caution : The insulation resistance cannot be measured between the tip and the
power plug as the transformer between the secondary part (Heating
Element) and the primary part acts as an insulator.
