1
Heat resistant pad
Iron holder
FP-101Soldering station
Control card
Card chain
Tip tray
Tip (not included)
FM-2021 Connector assembly
Sleeve assembly*
7.5
6.5
8.0
7.0
M
O
D
E
L
FP
-101
*Yellow, orange or blue sleeve
assembly is included.

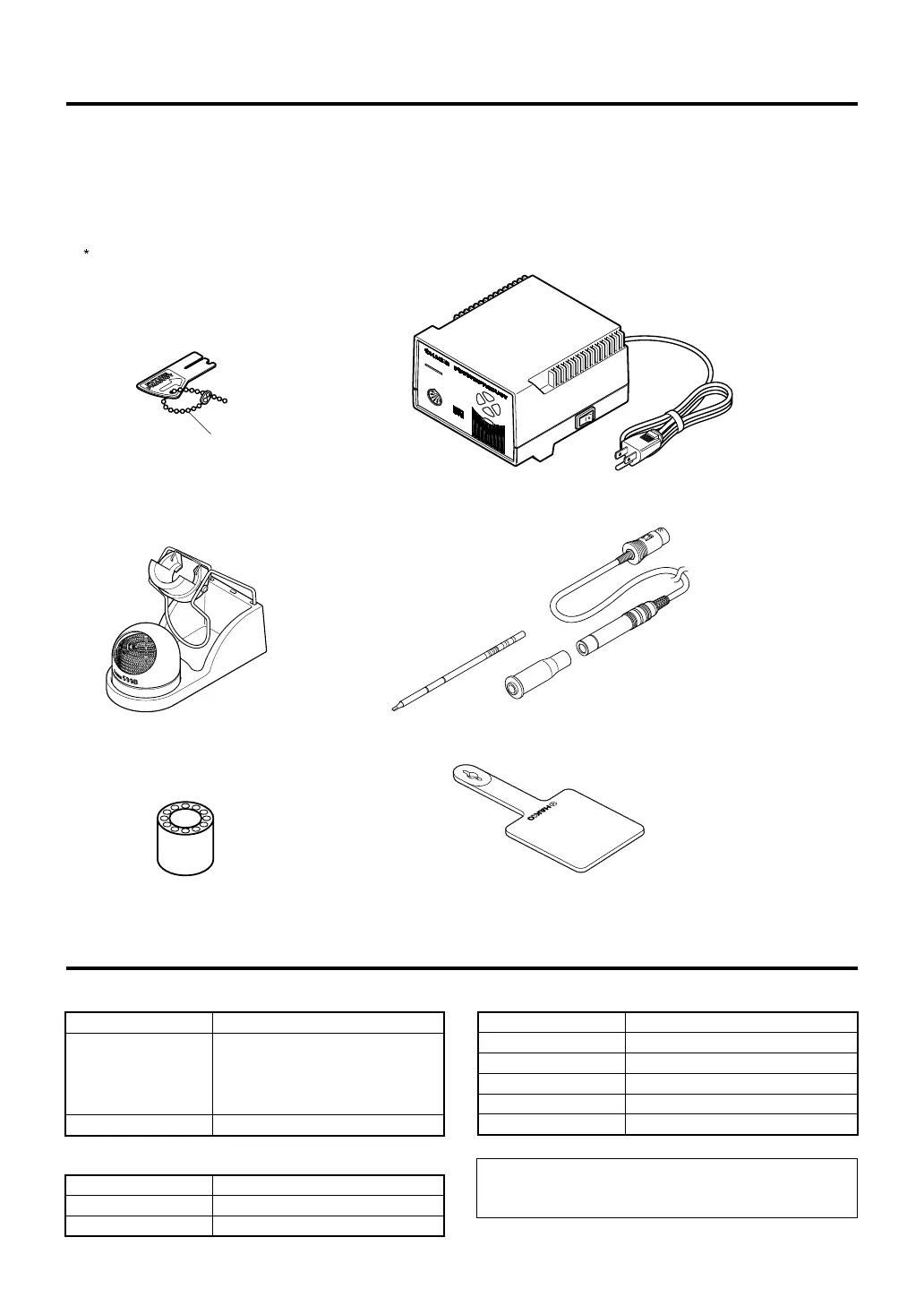

1. PACKING LIST
FP-101 soldering station ................................. 1
FM-2021 connector assembly ..................... 1
Sleeve assembly ............................................ 1
Control card, with chain .................................. 1
Sticker of LED lighting pattern.........................1
Heat resistant pad ........................................... 1
Tip tray ............................................................ 1
Iron holder ....................................................... 1
Cleaning wire .................................................. 1
Instruction manual .......................................... 1
2. SPECIFICATIONS
● FP-101 soldering station
Power consumption
Temperature range
Temperature stability
75 W
The four segment lights on the front
panel indicate the heat range selected
for the FP-101 (6.5 = ~650°F. [343°C];
7.0 = ~700°F. [371°C]; 7.5 = ~750°F.
[399°C]; 8.0 = ~800°F. [427°C]).
±9°F (±5°C) at idle temperature
Power consumption
Tip to ground resistance
Tip to ground potential
Length, less cord
Weight, less cord
Length of cord
70 W (24 V)
< 2 Ω
< 2 mV
188 mm (7.4 in.) with 2.4D tip
30 g (0.067 lb./1.07 oz.) with 2.4D tip
1.2 m (4 ft)
● Soldering iron
Output
Dimensions(W × H × D)
Weight (w/o cord)
24 V
120 × 93 × 140 mm (4.7 × 3.7 × 5.5 in.)
1,400 g (3.1 lb.)
● Station
NOTE:
This product is protected against electrostatic discharge.
Specifications and design are subject to change without notice.
Please check to make sure that all items listed below are
included in the FP-101 package.
This sticker is a chart showing the 7 patterns of
LED lighting. Keep it in a convenient place or attach it
to the FP-101.
To Next Page
