Halton KVE-WW - Capture Jet Fan System Installation and Wiring; Capture Jet Fan Package Installation; Capture Jet Fan System Wiring Diagram

12
Capture Jet
®
Water Wash
Operation & Maintenance & Service Manual
CJOWWM/012009/rev1/EN
Capture Jet
®
Fan Installation

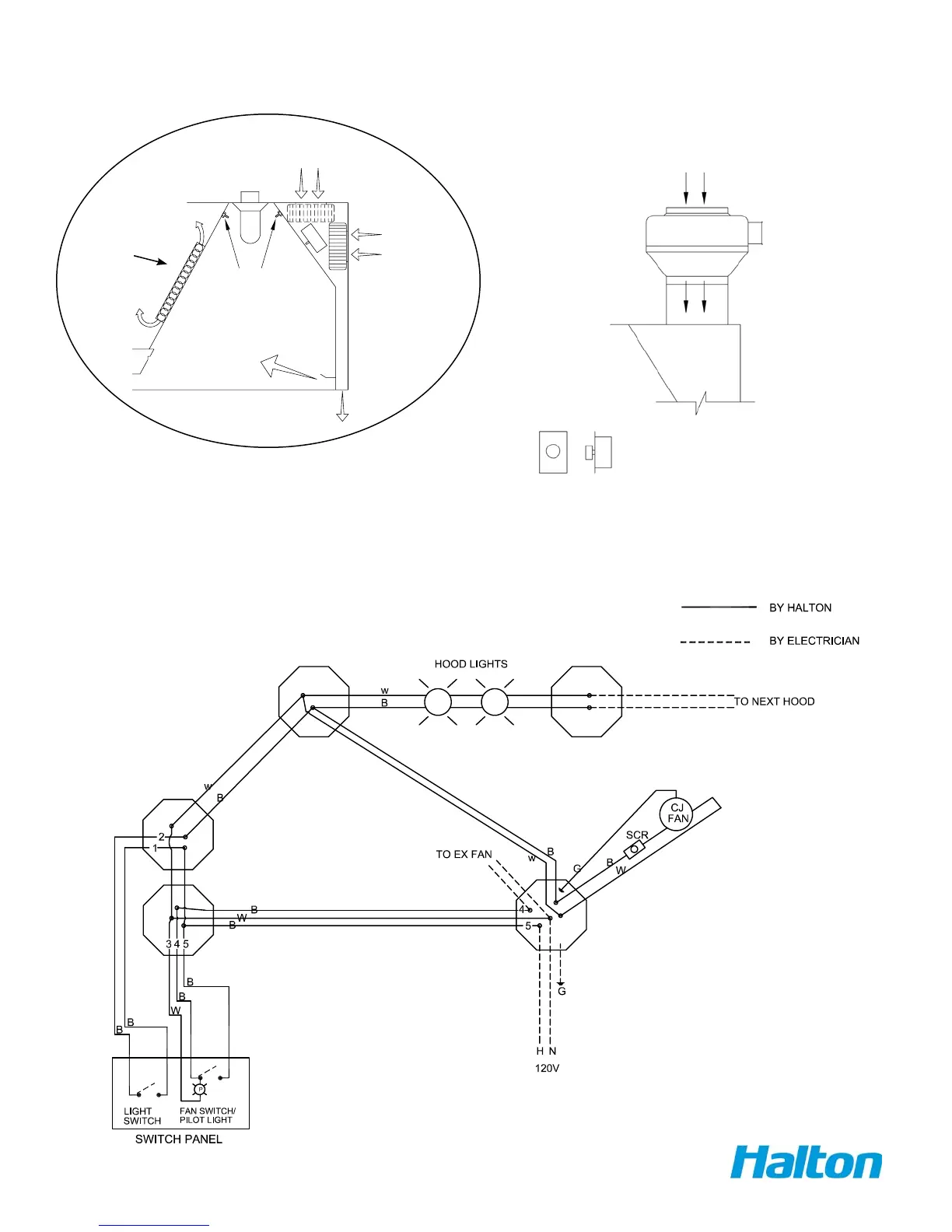

Typical Wiring of Capture Jet
®
Fan
T.A.B. Ports
KSA Filter
Integrated Capture Jet
®
fan
(Standard)
(Optional)
Speed
Controller
5 AMP Speed Controller wired on
top of hood or located in the Control
Panel
Capture Jet
®
Plenum
Capture Jet
®
Fan
This style is standard for Model KVL
Top of Hood
Front of
Hood
w/ Halton supplied Switch Panel
Models KVE, KVC are equipped with an
Integrated Capture Jet fan package, as
shown above.
