Every 6 months (typically) the Capture Jet fan will need to be serviced by a qualified technician� Contact Stoddart at 1300 307 289 for
assistance�

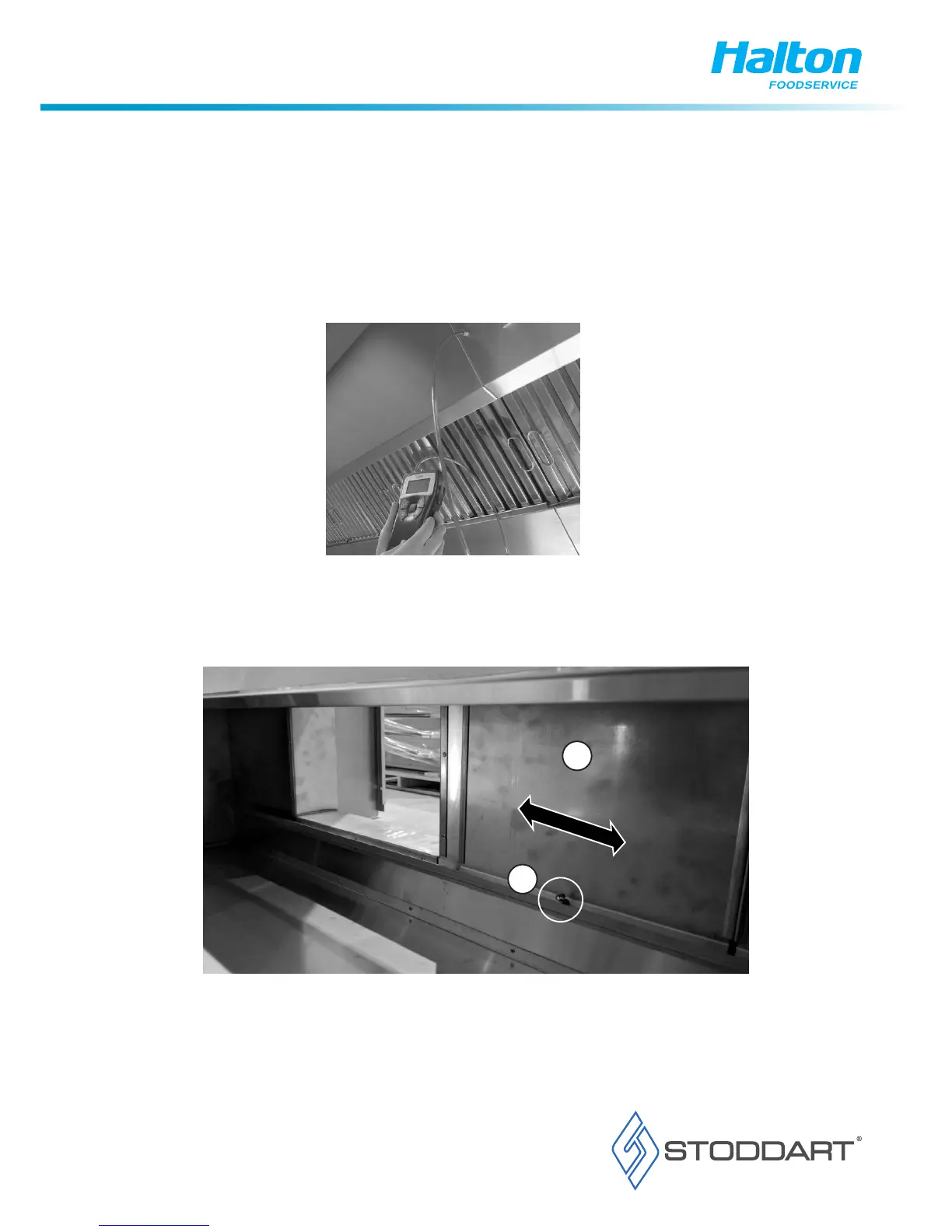

Testing and Balancing Pressure and Airflow - Exhaust Air Flow
Before measuring airflows check the exhaust and supply fan are on and functioning normally� Airflows are balanced in each hood section by
adjusting the sliding dampers� It is important for the hood to have a balanced airflow, to ensure exhaust and supply function efficiently�
1� Using a manometer measure the pressure at the T�A�B� (Testing and Balancing) point� Do this for each exhaust plenum�
2� Compare results to the rating plate� Values must be within ±10% of specified value� If the value is correct, skip to the next section� If the
value is incorrect, continue with the following steps�
3� Remove the filters to open or close the sliding dampers to increase/decrease pressure as required�
Loosen the screw (A), then slide the damper (B) as required�
4� When the damper is in the final position re-fit the filters
5� Re-measure the pressure at the T�A�B point, if required continue adjusting the dampers and taking measurements until the specified
values are reached
B
A
Cleaning and Maintenance
