2. Description of accessories
a. Steps or stepless capacity control system
Please refer to chapter 2.6 and 2.7 for the detail of step or stepless capacity control system.
b. Compatible steps and stepless capacity control system
For customers’ ease of stock control, possible modification of capacitycontrol logic in the future, or other special
requirements of capacity control, Hanbell deliberately designs devices for stepless/step dual capacity control as
nonstandard accessory for customers’ choices. Logic of stepless/step dual capacity control is basically identical to
those of stepless or step capacity control respectively. Please refer to Chapter 2.6, 2.7, & 2.8 for further details.
c. Suction and discharge check valve
Hanbell standard check valve (vertical type) is gravitydriven with characteristics of large flow volume and low
pressure differential. After shutdown of compressor, Teflon taper guider inside can simultaneously seal up the
precisely machined base of check valve by gravity force to effectively prevent return of highpressured gas to
compressor. The gravitydriven check valve is equipped vertically. Due to limitation of space or piping requirements,
alternative horizontal check valve is also available.

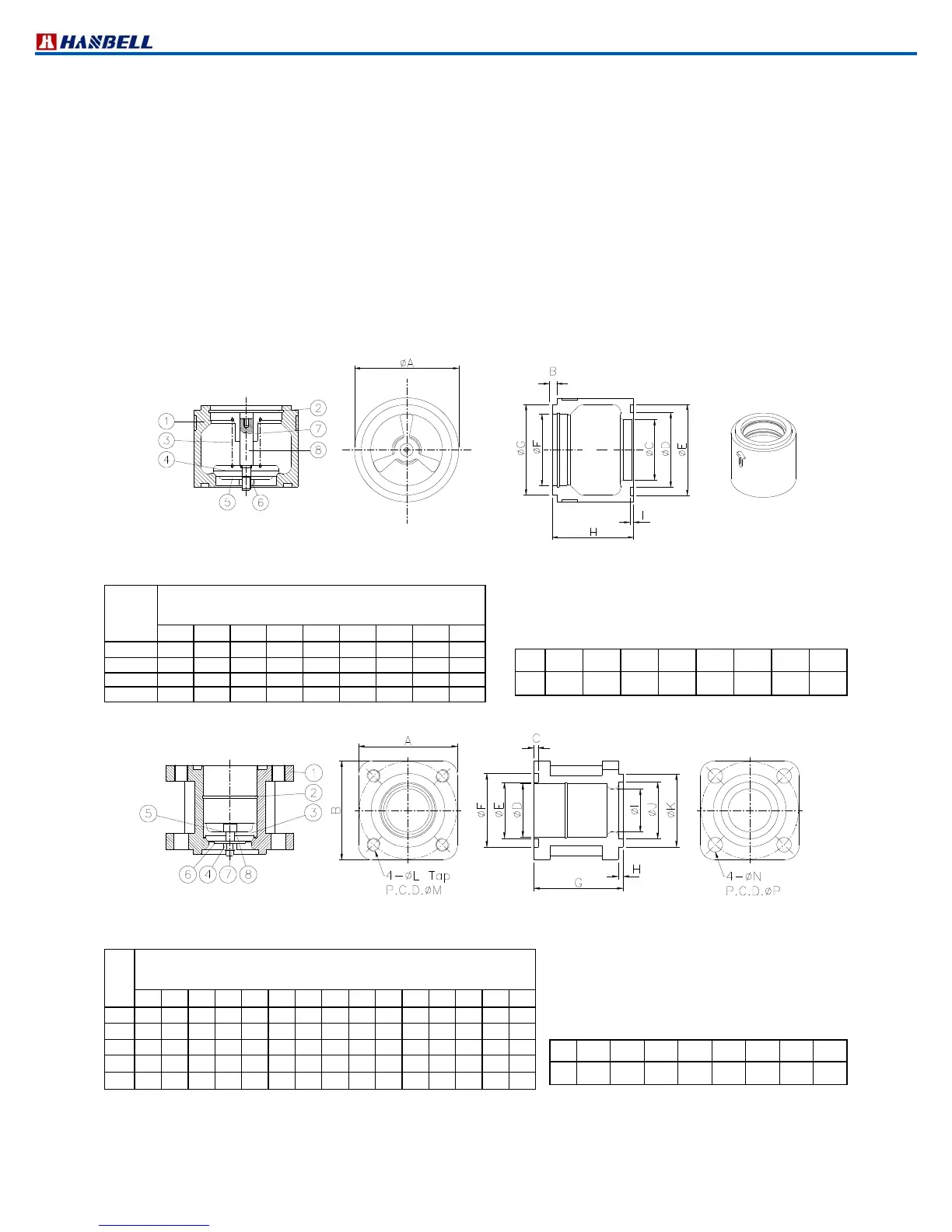

Figure 24 Suction check valve outline drawing (Horizontal type)
Dia.
Dimension unit: mm
A B C D E F G H I
2” 102 6 53 69 91 65 90 85 5
2 1/2″
″″
″
122 6 69 89 111 85 110 97 5
3″
″″
″
138 6 80 99 121 95 120 108 5
4″
″″
″
163 6 96 124 146 120 145 123 5

Figure 25 Discharge check valve outline drawing (Vertical type)
Dia.
Dimension unit: mm
A B C D E F G H I J K L M N P
1 1/2″
″″
″
109 109 5 55 59 76 105 6 34 60 75 M16x2 105 18 105
2” 122 122 5 65 69 91 110 6 46 70 90 M16x2 120 18 120
2 1/2″
″″
″
134 134 5 85 89 111 125 6 55 90 110 M16x2 140 18 140
3″
″″
″
153
153 5 95 99 121 135 6 66 100 120
M20x2
.5
160
22 160
4″
″″
″
171
171 5 120 124 146 135 6 80.5 125 145
M20x2
.5
185
22 185
No. 1 2 3 4 5 6 7 8
Item Body C clipper Spring
Valve
plate
Gasket
Nut
Guide
seat
Shaft
No. 1 2 3 4 5 6 7 8
Item Body
C
clipper
Guide
seat
Nut
Valve
plate
Gasket
Bolt Washer
