Hanbell RC2-930A - Page 54

Technical Manual VERSION 2.0 -10-18-2018
54

 


( ) Technical dataⅠ ：
Model Type
Oil Volume (Liter) Range of application based on
Displacement (m
3
/hr)
(Recommended)
Shell Diameter
High level Low level
OS40 Vertical 17 9 205 14”
OS50 Vertical 22 12 206~270 16”
OS65 Vertical 31 18 271~440 18”
OS80 Horizontal 33 20 441~705 20”
OS100 Horizontal 40 27 706~1120 20”
OS125 Horizontal 50 30 1121~1310 24”
OS150 Horizontal 60 36 1311~1835 24”
( ) AccessoriesⅡ ：
No. Description OS40 OS50 OS65 OS80 OS100 OS125 OS150
1 Refrigerant inlet 1 1/2” 2” 2 1/2” 3” 4” 5” 6”
2 Refrigerant outlet 1 1/2” 2” 2 1/2” 3” 4” 5” 6”
3 Oil outlet 5/8” Flare 5/8” Flare 5/8” Flare 1” PF 1” PF 1 1/4” PF 1 1/4” PF
4 Oil charge valve 1/4” Flare
5 High oil S.G. 1 PCS
6 Low oil S.G. 1 PCS
7 Oil level switch 1 PCS
8 Oil heater 150W 150W 150W 150W 150W 300W 300W
9 Oil drain valve 1/4” Flare
10 Oil temp. protection (option) 1/8” NPTF
11 Safety valve (option) 1/2” 1/2” 1/2” 1” 1” 1 1/2” 1 1/2”
( ) DimensionsⅢ ：
No. OS40 OS50 OS65 OS80 OS100 OS125 OS150
A 930 1050 1110 1297 1637 1829 2229
B 505 585 595 650 1000 1080 1480
C 240 275 300 359 354 409 409
D 300 350 350 300 300 400 400
E 18 22 22 23 23 23 23
F 320 360 360 688 698 830 830

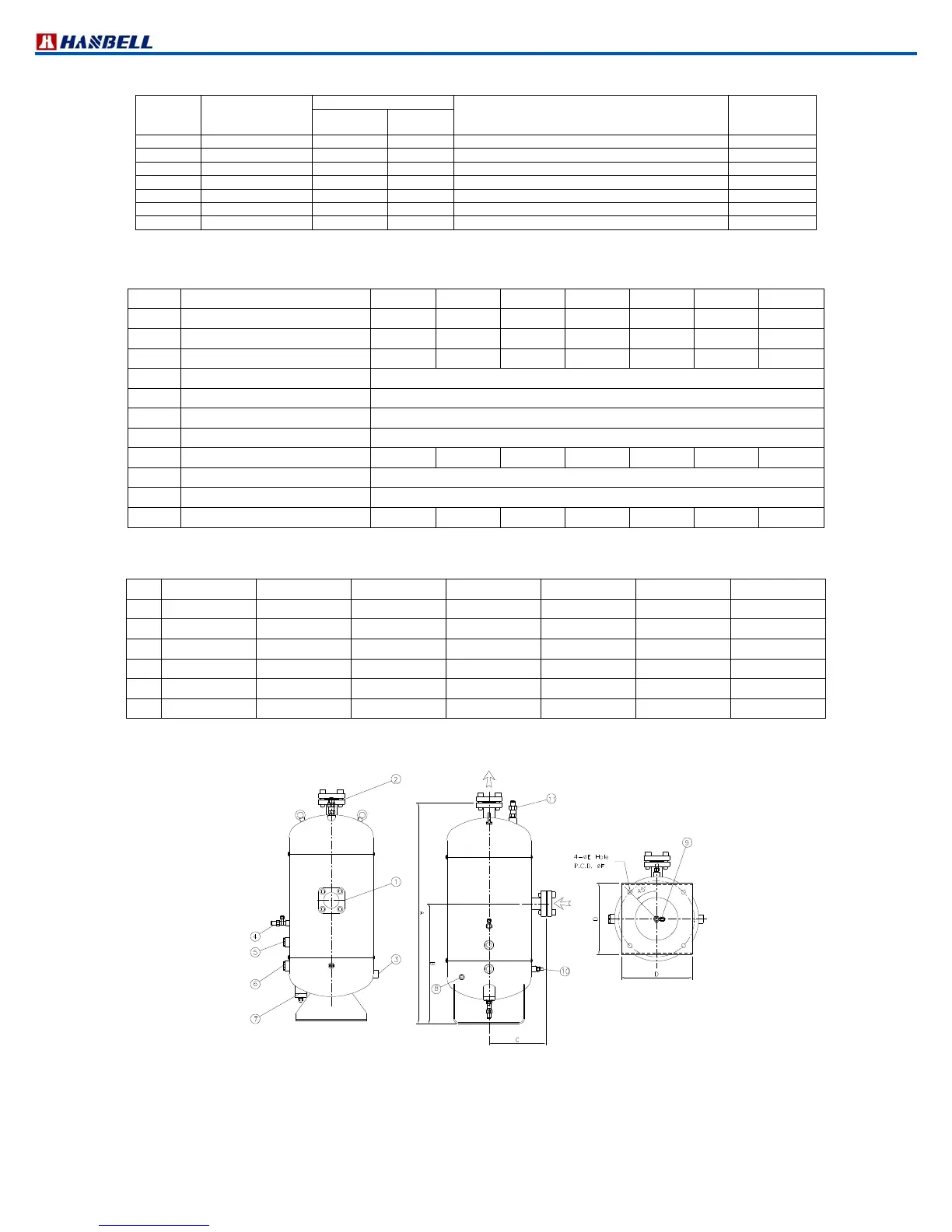

(Ⅳ) Drawing：
Vertical OS40, OS50, OS65 (Figure 42)
