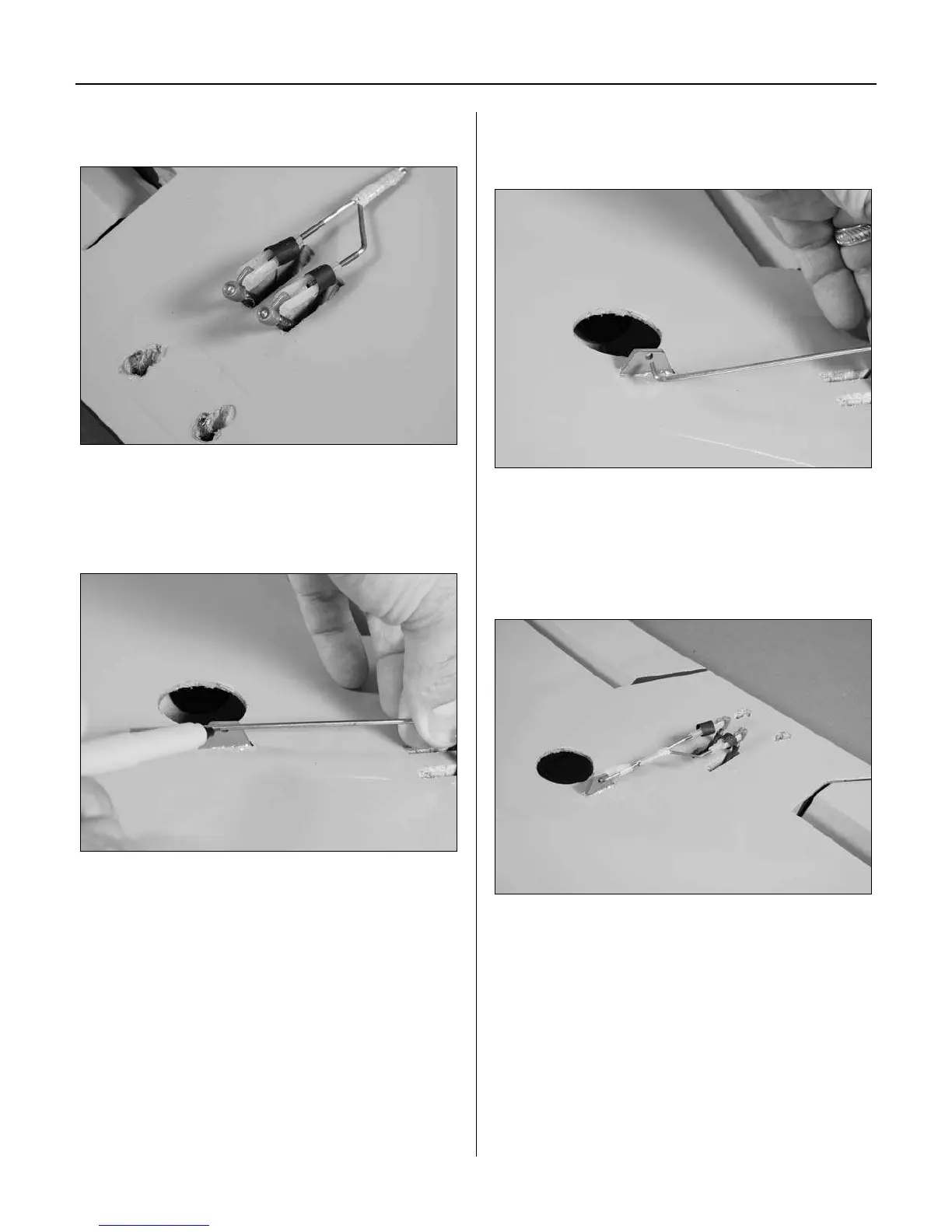

Step 5
Attach the clevises to the flap control horns.
Step 6
Hold the flap so it is aligned in the centered position. Use
a felt-tipped pen to mark where the pushrod crosses the
flap stay.
Step 7
Bend the pushrod wire 90 degrees at the mark made in the
previous step.
Step 8
Use the pushrod connector to secure the linkage to the
flap stay. Adjust the position of the clevises to center the
flaps in the up position. Use a heat gun to shrink the heat
shrink tubing to secure the clevis closed.
Step 9
Repeat Steps 1 though 8 for the remaining wing panel.
