Required Parts
• Assembled wing panel (right and left)
• Assembled engine nacelle (right and left)
• 8-32 blind nut (4) • #8 washer (4)
• Nacelle support plate (2)
• Nacelle cover (right and left)
• 8-32 x 1-inch socket head screw (4)
• 1
1
/
8
x 1/4-inch (28mm x 4mm) dowel (4)
Required Tools and Adhesives
• 30-minute epoxy • Hobby knife
• Masking tape
• Ball driver: 9/64-inch

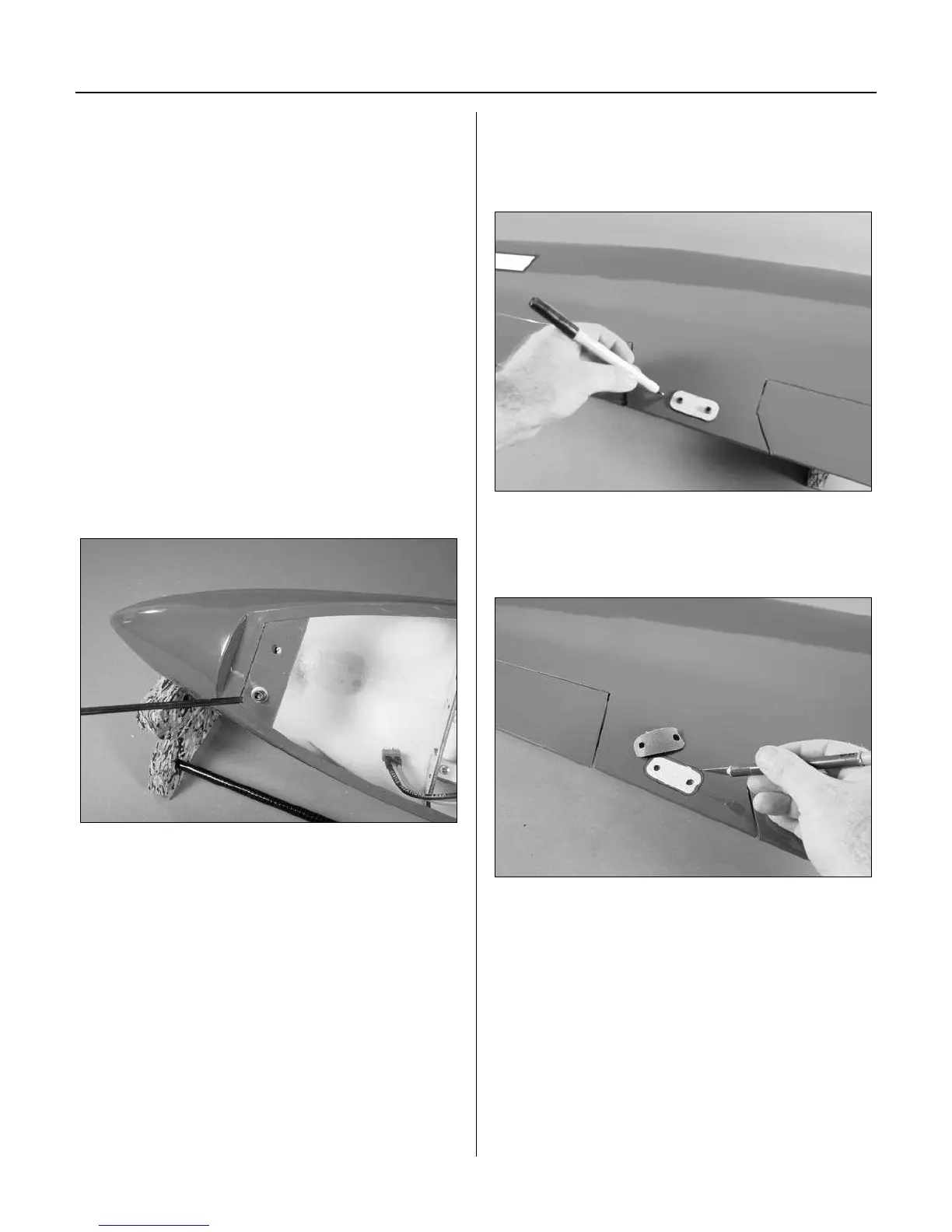

Step 1
Use a short 8-32 socket head bolt and 9/64-inch ball
driver to draw the two blind nuts up into the engine
nacelle mounting plate.
Step 2
Place the nacelle support plate over the holes in the
trailing edge of the wing and trace the outline of the plate
onto the wing.
Step 3
Use a sharp hobby knife to remove the covering where the
plate will be secured to the wing.
Section 10: Engine Nacelle Installation
