20

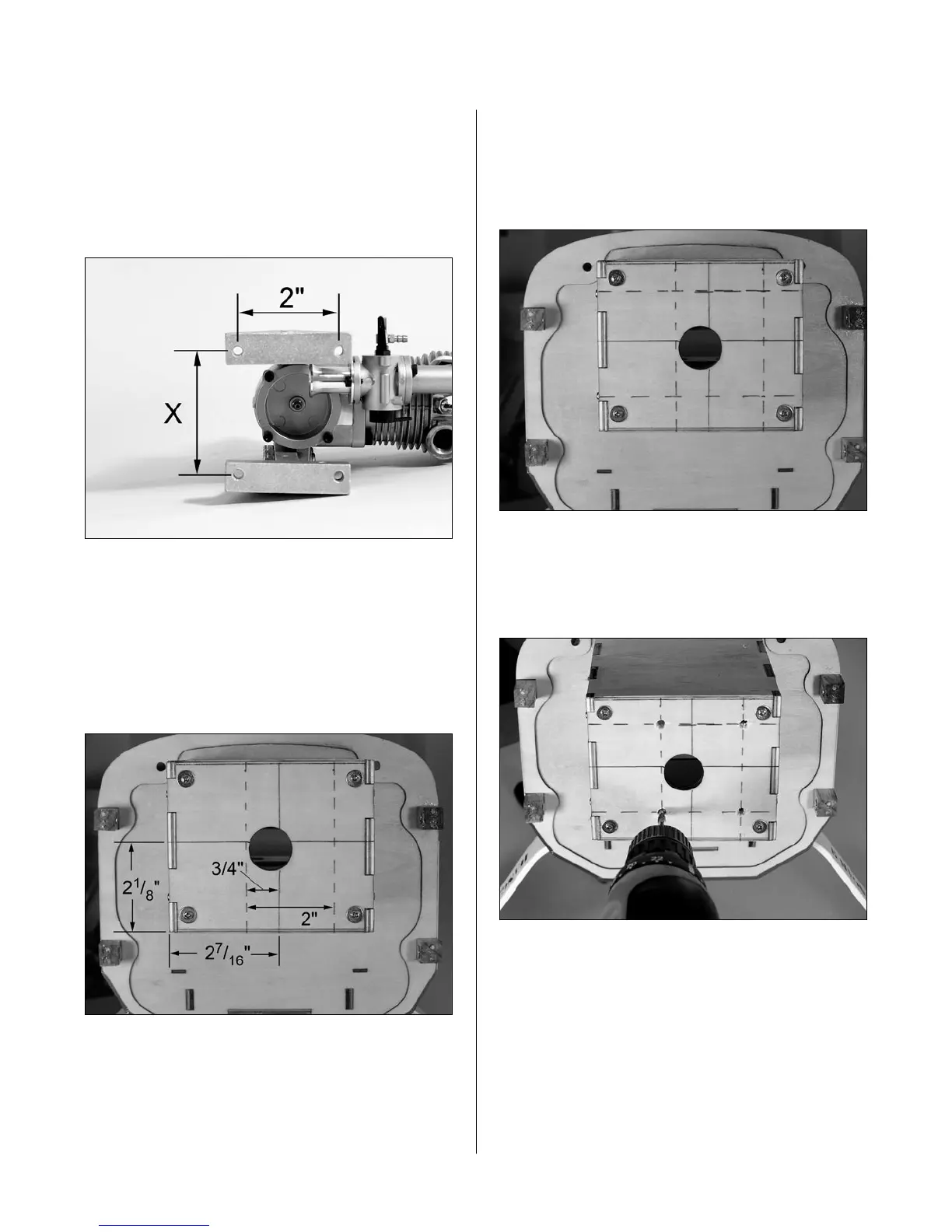

Step 5
Measure and record the measurements as shown.
Hint: A Saito™ 1.80 should be 2
3
/
8
" between
the mounts. The distance from the centers on
the mounts is 2".
Step 6
Mark the centerline for the engine onto the firewall.
Note the vertical centerline is offset to the right side
of center as viewed from the front due to the built-in
right-thrust. Mark the positions for the mount halves
as shown. These will be the same no matter what
engine if you are using the supplied mount.
Note: The engine is not centered between the
engine mount holes. The lines drawn for the
mount reflect this.
Step 7
Take the measurement from Step 5 and divide it
by two. (For the Saito, this will be 1
3
/
16
".) Use this
measurement to mark the positions above and below
the centerline for the engine mount.
Step 8
Use a drill and a 7/32" drill bit to drill four holes at
the intersections of the lines drawn for the engine
mount bolts.
Section 7A – Engine Installation: Saito
