13 Functional & LCD Description
Status Area
Admin
1%
10:23:14 09/16/2022
Display Brightness
50%
Users
Measurement
Settings
Log Recall
Help
System
Settings

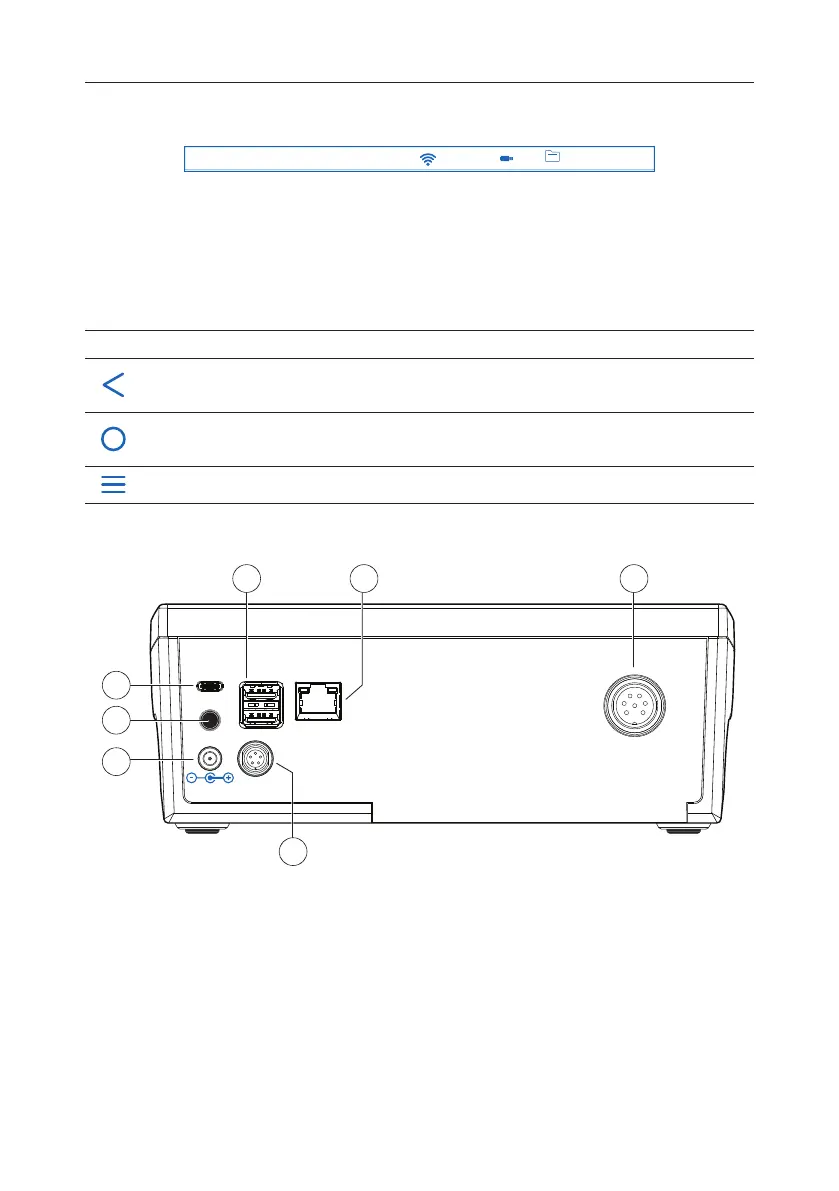

Continuously displayed after powering the unit, status area runs horizontally across the top of the LCD screen.
• Top left – current time & date
• Middle – connectivity status
• Top right – storage space availability & username
Direct keys
Icon Name Function
Back
• returns user to previous hierarchical menu level
• exit or escape function
Home
• access to measurement screen
• exit or escape function
Menu • access to Users, System Settings, Measurement Settings, Log Recall, Help
Rear view
Scale = 1:2
ON/OFF
USB-C
USB-A Ethernet
HHII66442211
Extension
Power
24Vdc
Dissolved Oxygen
DO
4 5 6
3
2
1
7
1. Input for power cable
2. Power button
3. Input for USB‑C flash or PC cable
4. Input for USB‑A flash (x2) or keyboard
5. Ethernet port
6. Dissolved Oxygen probe DIN connection port
7. Peripherals port
To Next Page
