User Interface – Icons 4

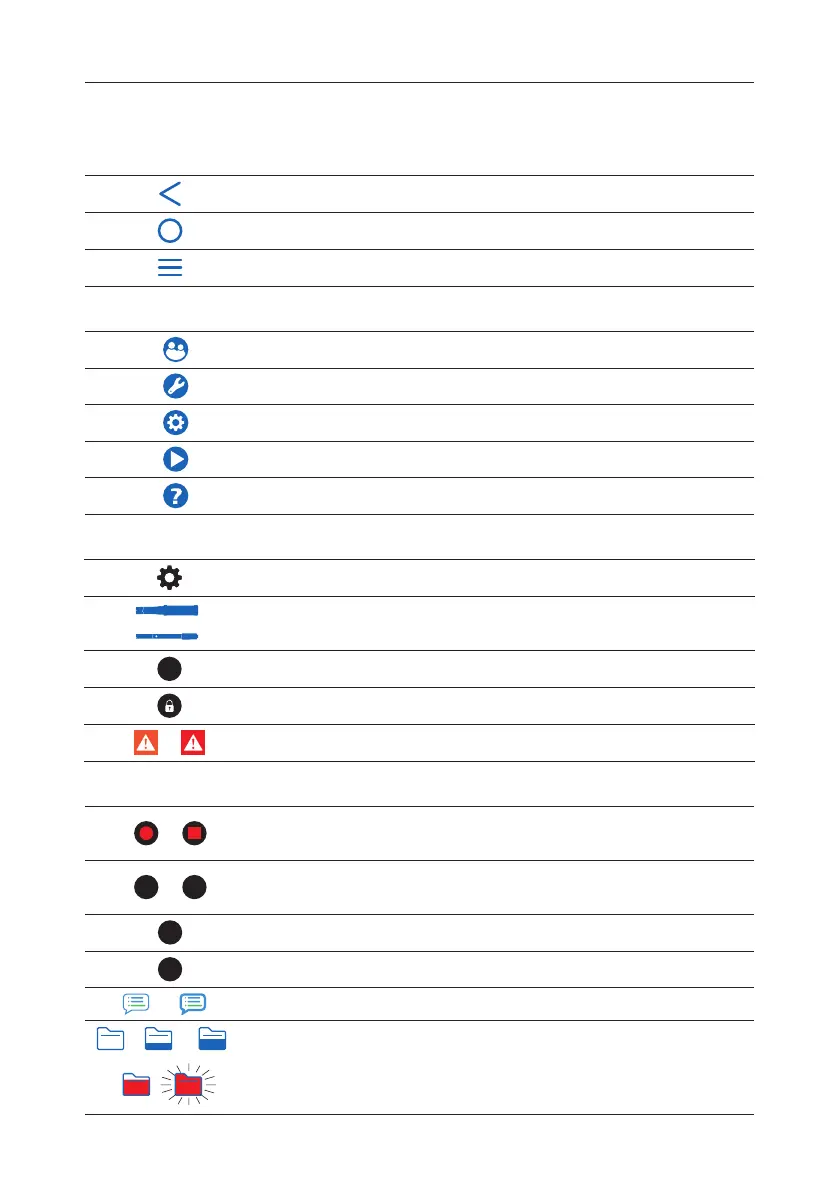

3. USER INTERFACE – ICONS
Capacitive keys Description
Back – return to a previous hierarchical menu level
Home – access to measurement screen & configured profile
Menu – access to Users, System Settings, Measurement Settings, Log Recall, Help
Main menu Description
Users – user configuration & login
System Settings – system configuration, connectivity & printing items
Measurement Settings
Log Recall – access logged measurement data
Help – access support
Measurement Description
Measurement Menu, accessed from measurement screen
opdo
®
probe
Polarographic probe
DO
Autohold applied
Autohold, waiting stable DO measurement
Warning on standby / active function
Logging Description
# 00002
00:00:12
Start / Stop logging (current index and time since log started)
M
M
# 00012
Manual logging (current index)
D
Triggers log session, pending next stable measurement
A
Autohold logging in progress
/
Annotated text / Annotated text in use
0 % 25 % 50 %
75 % 100 %
Available storage capacity
(at full capacity the icon displayed blinking)
