Hydraulic pump belt adjustment
The hydraulic pump is driven by a synchronous belt. The belt does not require any tension, however the belt should not have any

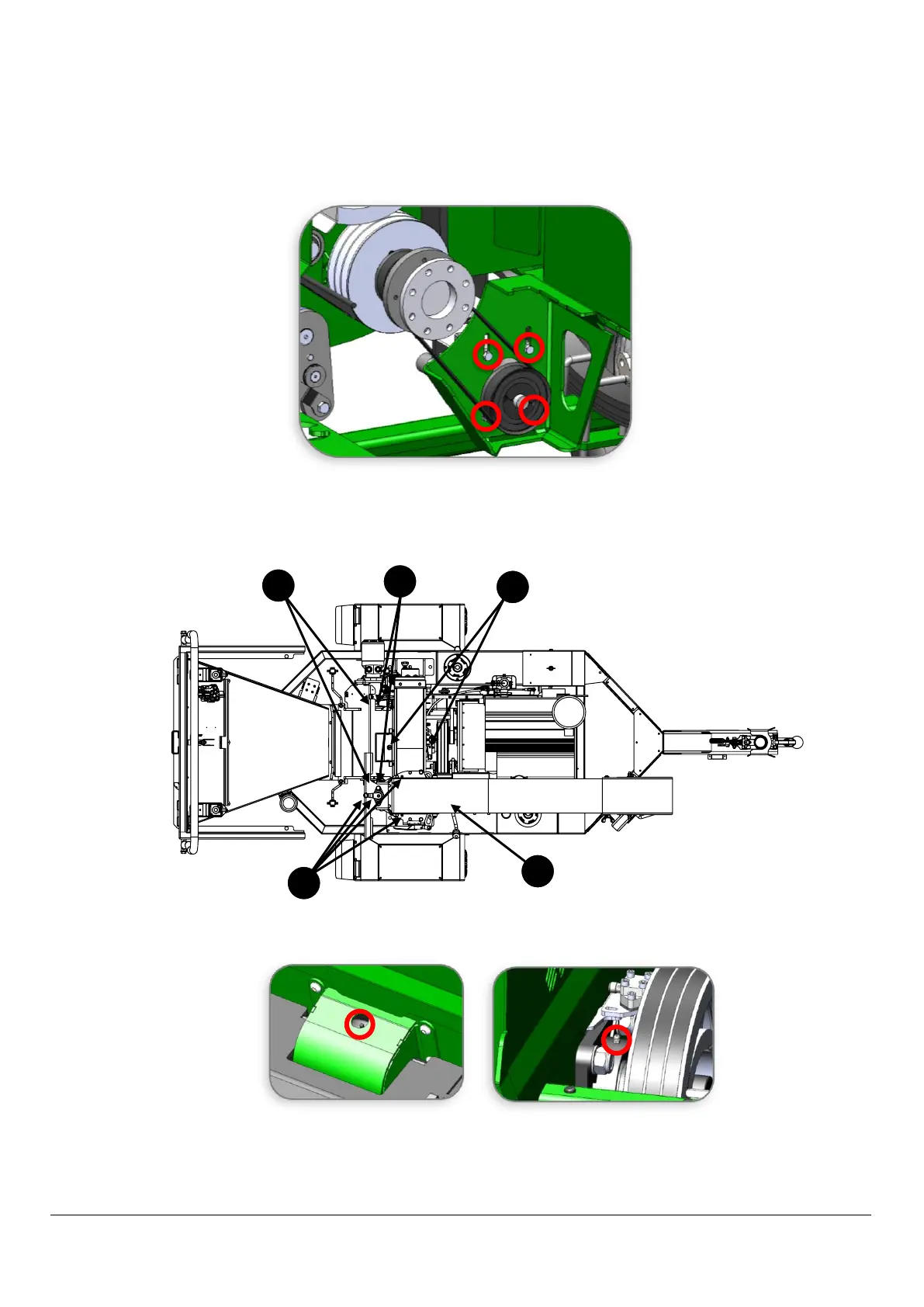

slack either. The belt can be adjusted by loosening the four mounting bolts (using a 13 mm spanner) and moving the pump/pulley
up or down the slotted holes (as per the image below). The lower two bolts are best accessed from beneath the machine. If the
belt is damaged in any way, contact Hansa for a replacement.
Greasing bearings & pivot points
Points that need to be greased are as follows (as per the diagram on the following page):
1. Two bearings on the rotor shaft, one under the engine cover and the other above the inlet opening
