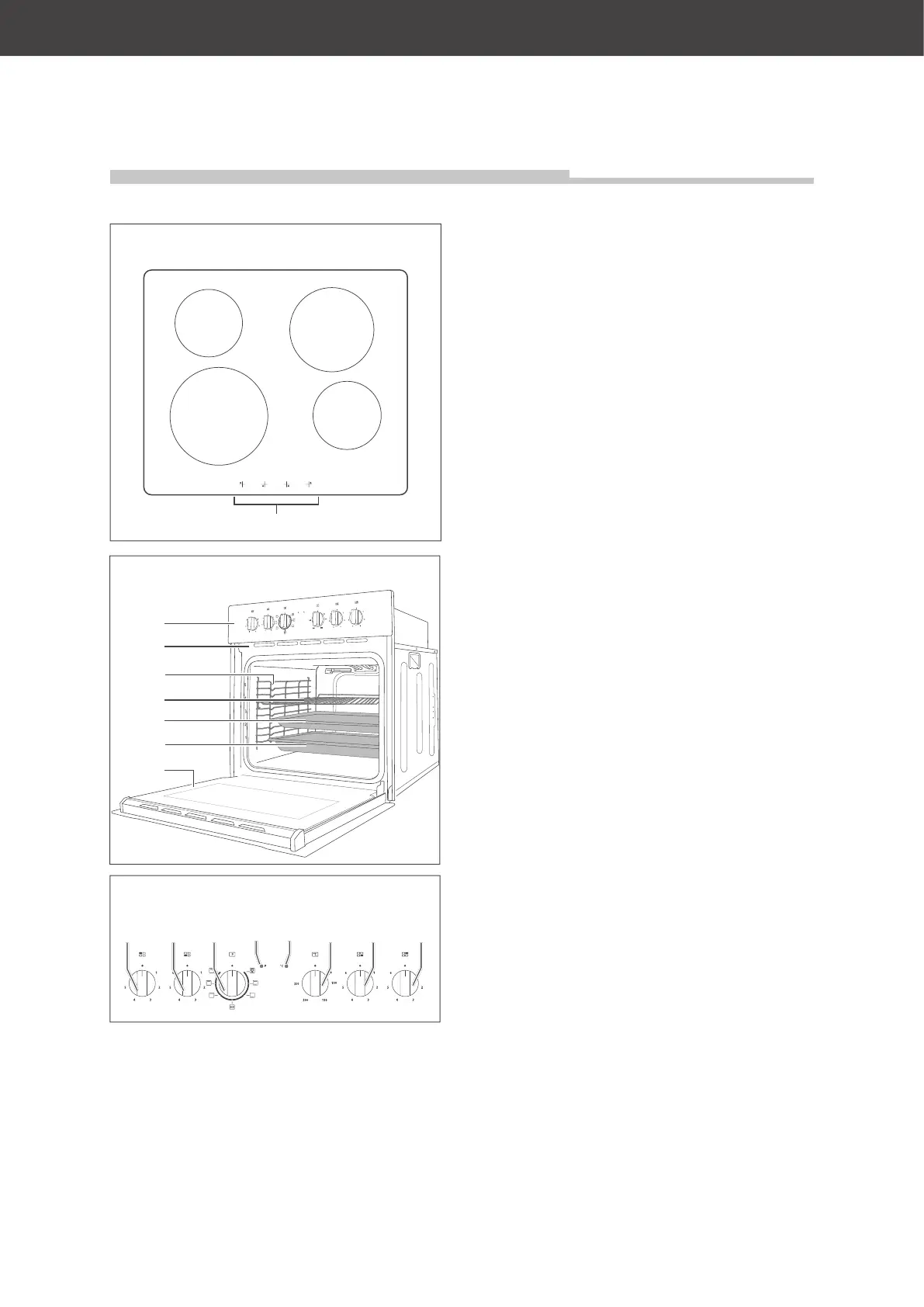

Page EN-12 Appliance parts and control elements
Appliance parts and control elements
Oven
(6) Control panel
(7) Extraction hood (ventilation)
(8) Baking tray guides
(9) Oven rack
(10) Baking tray
(11) Dripping pan
(12) Appliance door
Control panel
(13) Temperature controller for cooking
zone (1)
(14) Temperature controller for cooking
zone (3)
(15) Function switch
(16) Control light (yellow)
(17) Oven light (red)
(18) Temperature controller for the oven
(19) Temperature controller for cooking
zone (4)
(20) Temperature controller for cooking
zone (2)
Hob
(1) Cooking zone Ø 165 mm / 1200 W
(2) Cooking zone Ø 200 mm / 1800 W
(3) Cooking zone Ø 200 mm / 1800 W
(4) Cooking zone Ø 165 mm / 1200 W
(5) Residual heat indicator for the
individual cooking zones
(1)
(2)
(4)(3)
Hob
(5)
(13) (14) (15) (18) (19) (20)(17)(16)
Control panel
1
2
3
4
5
(8)
(9)
(10)
(11)
(12)
(7)
Oven
(6)
