Fitting and installation
Page EN-29

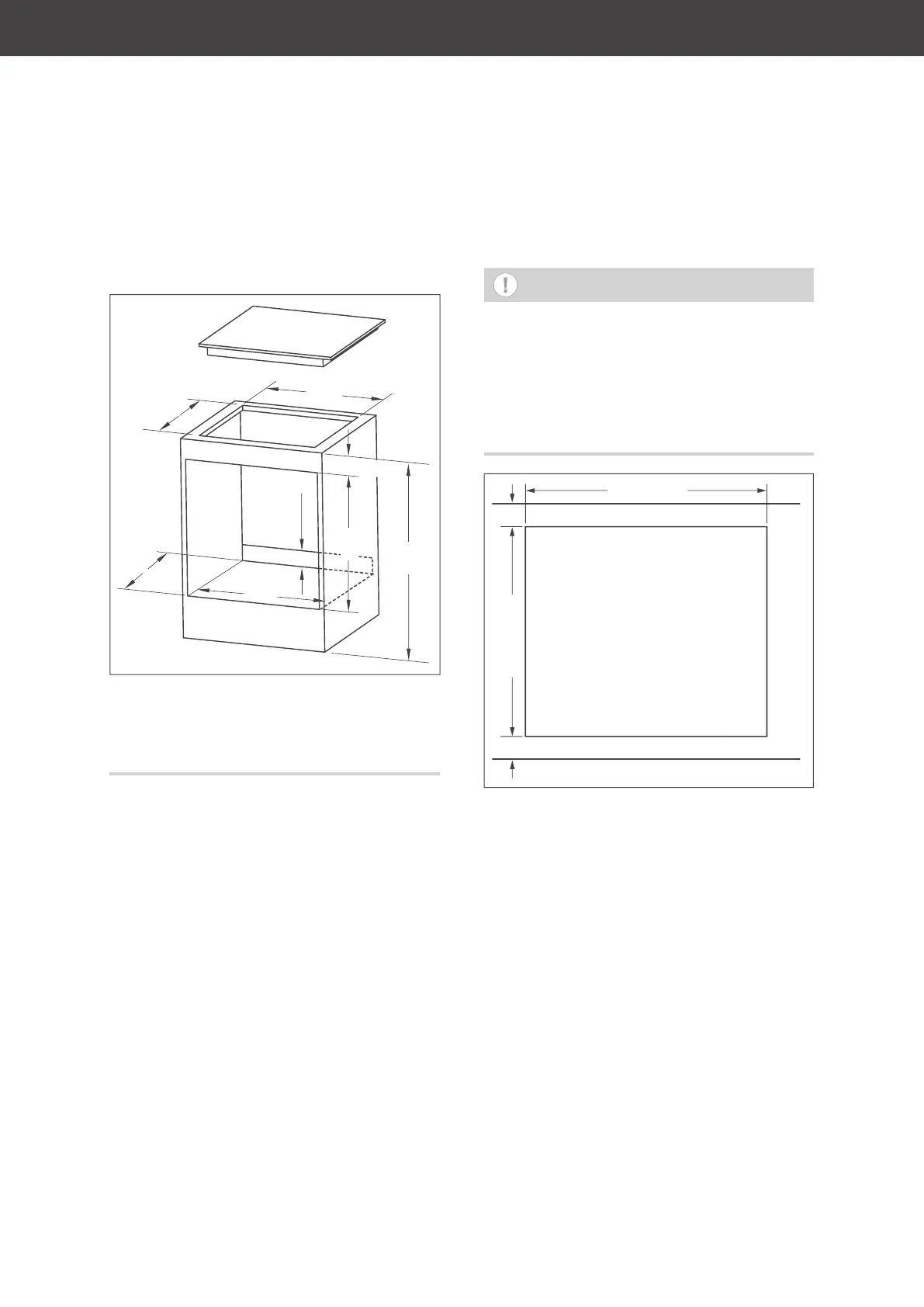

• Note that the recess and the cut-out in the
worktop must have the following dimen-
sions (provided in mm):
560
600
850
560
max. 50
490
min.
570
min. 50
The minimum installation depth must also
take account of the connection socket, oth-
erwise it will not be possible to push the ap-
pliance in completely.
Preparing food
NOTICE
Risk of damage to property!
Improper installation of the hob may
result in damage.
■ If a hob was previously installed, the
cut-out for it must be no larger than:
Width: 574 mm, depth: 492 mm
560–562
490–492
≥ 50
≥ 50
1. With a jigsaw, saw the cut-out for the
hob into the worktop with the dimensions
shown in the diagram (provided in mm).
