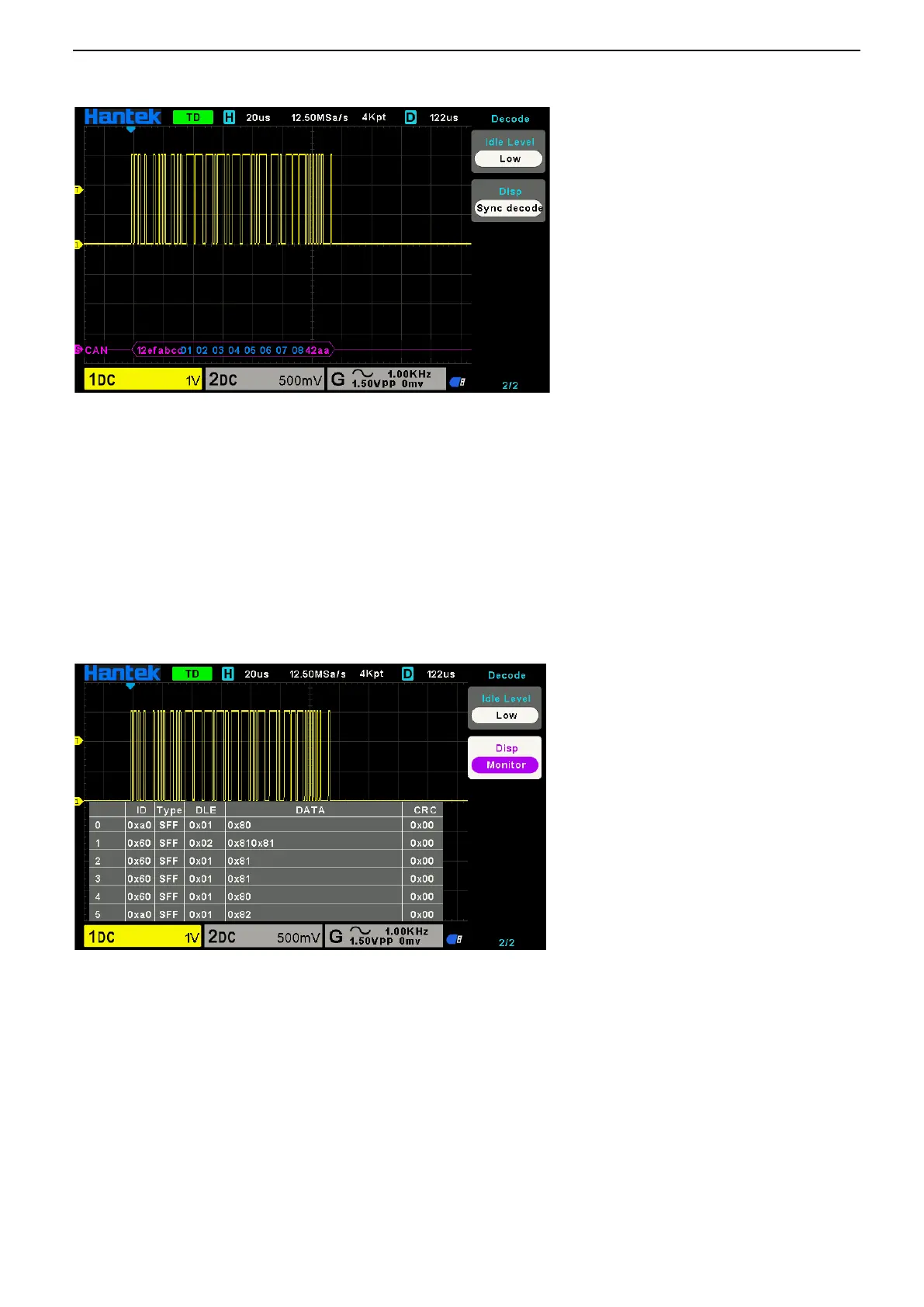

The trigger result is shown below:
CAN Decode interpretation:
1. The decode data is displayed in hexadecimal;
2. The decoded data is at the bottom of the waveform interface. The color of “frame ID” is displayed
purple, the “Data” is blue, the “CRC” is purple;
3. When there are "?" or "adjust the time base", you need to adjust the time base to see the decoding
results.
CAN text interface is shown as below:
ID: The ID value of the current frame, displayed as hexadecimal;
Type: Frame type. “SFF”- Standard data frame, “SRF”- Standard remote frame, “EFF”- Extended data
frame, “ERF”- Extended remote frame;
DLE: Data bytes of current frame;
Data: The data of current frame;
CRC：The CRC check code of current frame.

Hantek DSO2D10 Specifications

General

Bandwidth	100 MHz
Channels	2
Sample Rate	1 GSa/s
Vertical Sensitivity	2 mV/div to 10 V/div
Trigger Modes	Edge, Pulse, Video, Slope, Alternate
Interface	USB Host, USB Device
Math Functions	+, -, *, /, FFT
Vertical Resolution	8 bits
Display Resolution	800 x 480 pixels
Power Supply	100-240 V AC, 50/60 Hz
Weight	2.5 kg
Display	7 inch LCD
Built-in Generator	Yes, 25 MHz
Input Impedance	1 MΩ ± 2%
