2.
Check to make sure blades (O) will be at least 30 in.
from any obstruction and at least 7 ft. above the
floor.
3.
6
Lowes.com/harborbreeze
3
2

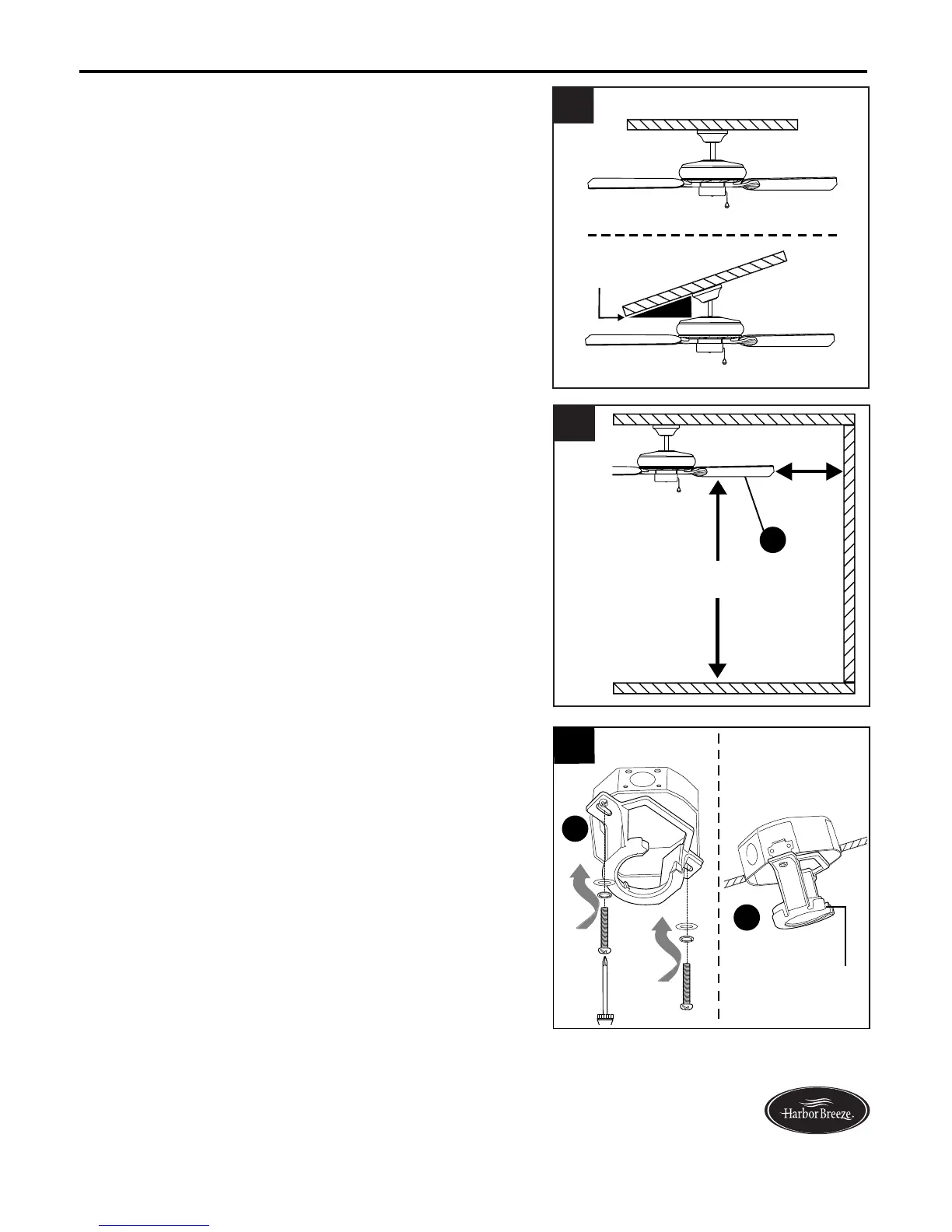

INITIAL INSTALLATION
Determine mounting method to use.
A. Standard mount
B. Angle mount
IMPORTANT: If using the angle mount, ensure the
ceiling angle is not steeper than 19°.
*Helpful Hint: Standard mounting is best suited for
ceilings 8 ft. high or higher. For taller ceilings you
may want to use a longer downrod (not included).
Angle mounting is best suited for angled or vaulted
ceilings. A longer downrod is sometimes necessary
to ensure proper blade clearance.
Open End
4
B
B
ANGLE MOUNTSTANDARD MOUNT
Secure mounting bracket (B) to outlet box (not
included) using screws, spring washers and flat
washers provided with the outlet box.
*NOTE: It is very important you use the proper
hardware when installing the mounting bracket (B)
as this will support the fan.
IMPORTANT: If using the angle mount, make sure
open end of mounting bracket (B) is installed facing
the higher point of the ceiling.
4.
7 ft.
min.
30 in.
min.
O
B
A
19° max.
