3 - Description
16
Liquid system
Pump
Diaphragm pump with 6 diaphragms, model 464. Standard = 540 r.p.m. (6 splines shaft). Optional = 1000 r.p.m. (21 splines
shaft). The design of the diaphragm pump is simple, with easily accessible diaphragms and valves which ensures liquid does
not contact the vital parts of the pump.
FlexCapacity pump
Some sprayers facilitates a dual pump setup with an extra hydraulically driven pump of same type as the main pump, placed
on sprayers right side.
The FlexCapacity pump is turned ON/OFF with a separate hydraulic lever in the tractor cabin.
Valves and symbols
The possible functions of valves are distinguished by colored identification on the function labels. The modular valve system
facilitates the addition of optional extras on both pressure side and suction side. A function is activated by turning the
handle to the desired function.
ATTENTION! Only the functions used should be open - always close remaining valves.
ATTENTION! If a valve is too tight to operate - or to loose (= liquid leakage) -the valve needs to be serviced. Please see
Adjustment of 3-way valve” on page 73 for further information.

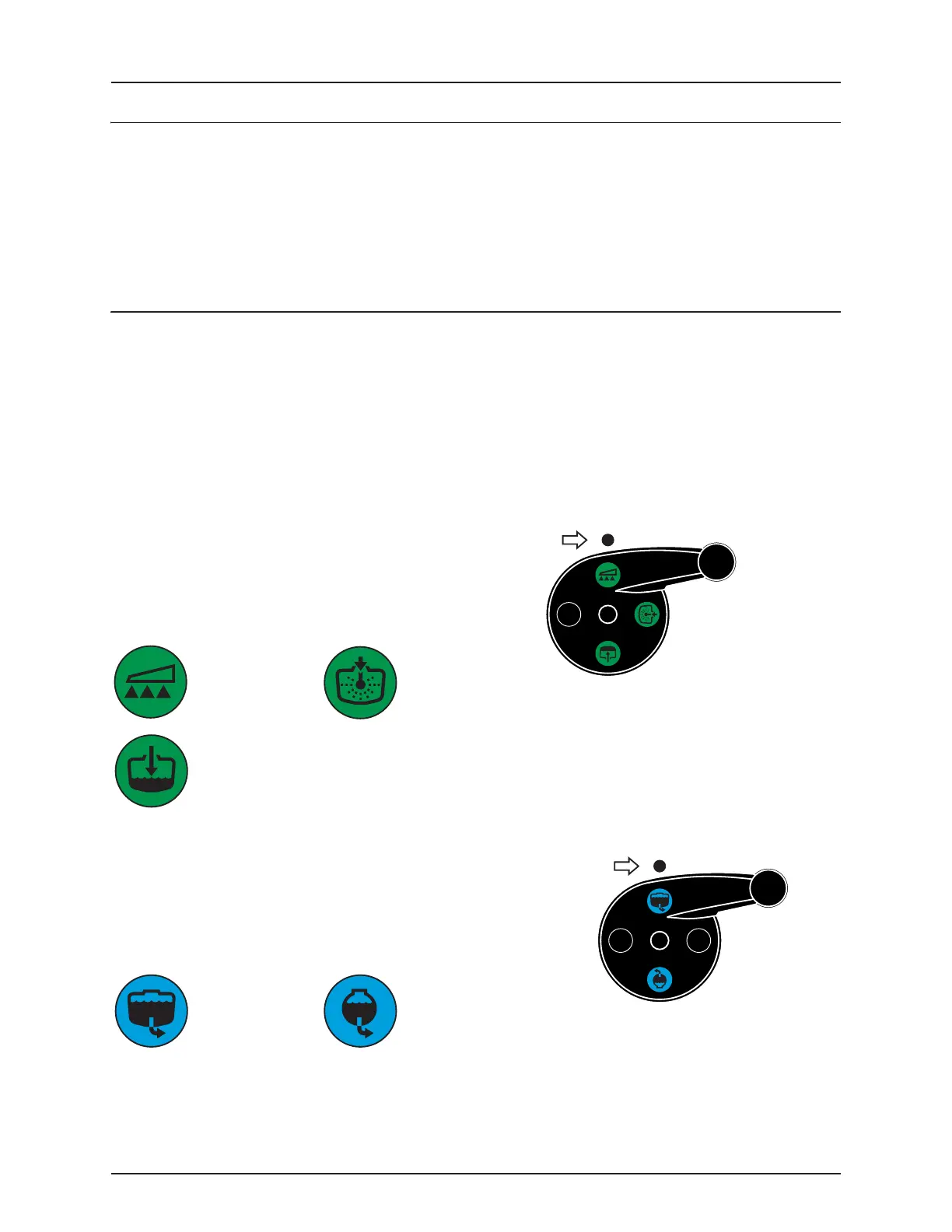

Pressure SmartValve (Green symbols)
This valve is to select which function the pressurized liquid from the
pump will be routed to.
The active function is indicated by the indicator. The handle is turned so
the indicator points to the label for required function. If handle is turned
to a position without label (unused function) then the valve is closed.
Suction SmartValve (Blue symbols)
This valve is to select suction from main tank or from the rinsing tank.
The handle is turned so the label for required function is directed to the
indicator. If handle is turned to vertical position (indicator not pointing
at a label) then the valve is closed.
Spraying Internal tank rinsing
TurboFiller
Main tank Rinsing tank
