Hydraulic support leg

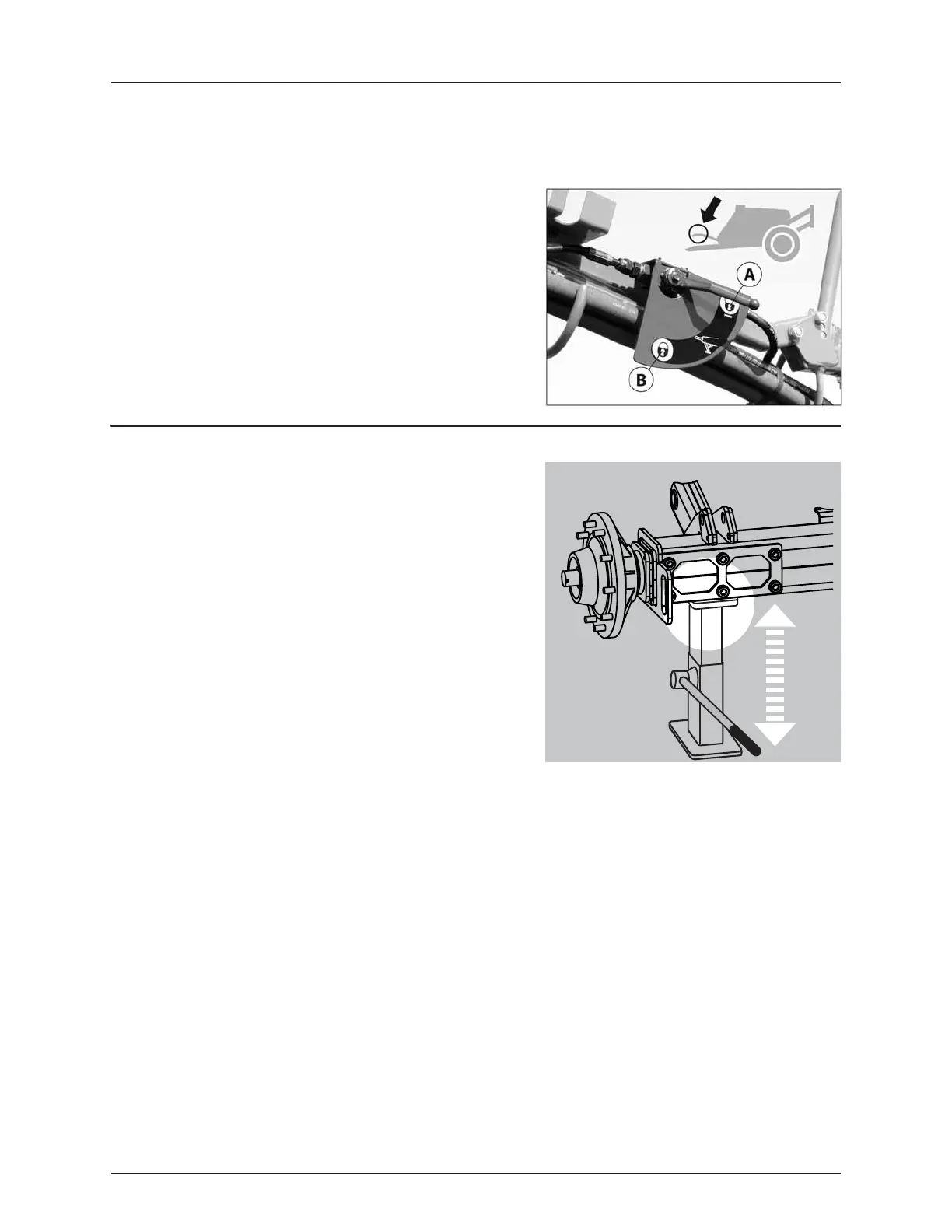

The hydraulic support leg is driven by a separate double acting hydraulic outlet on the tractor. The support leg is stored in
its retracted position when the sprayer is attached to the tractor.
To raise/lower the support legs
1. Unlock the leg by turning the securing grip to position (A).
2. Use the tractor’s hydraulic lever to raise or lower the support leg.
3. Secure the leg by turning the grip to position (B).
€
DANGER! Do never leave the sprayer standing unlocked on the
support leg. Always double check that the lever is in position (B).
Jack up the sprayer
When the sprayer needs wheel mounting, wheel changing, or wheel
bearing changing etc. then jack up the sprayer under the axle as shown.
€
DANGER! Be sure to place sprayer at level and firm ground to
avoid sprayer falling down from the jack.
ATTENTION! It is good practice to use stop wedges at the
opposite wheel!
