6 - Maintenance
64

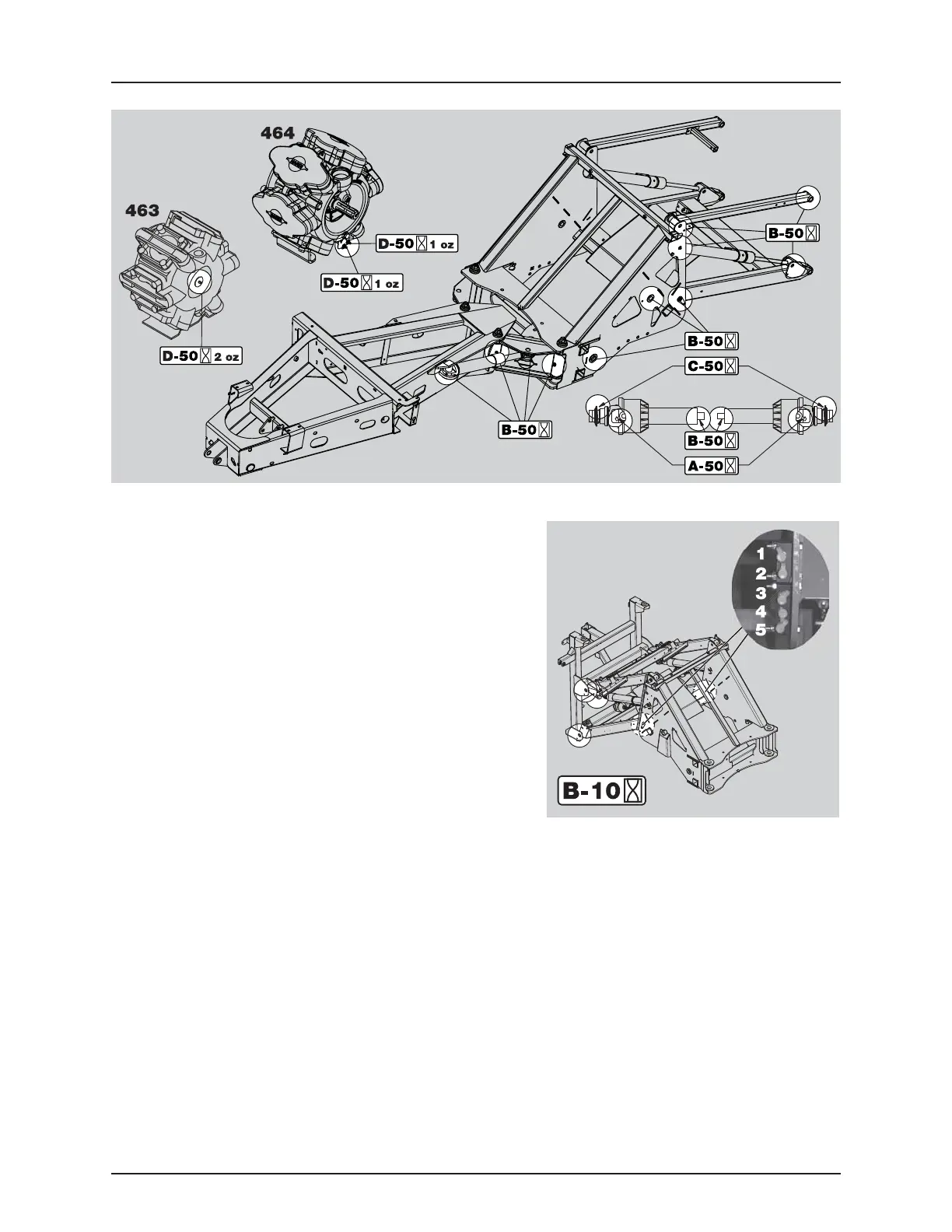

Trailer/ParaLift lubrication & oiling plan
The lift is remote lubricated from the inside of the trailer’s rear end.
1. Suspended axle attach point.
2. Suspension cylinder attach point.
3. Upper lift arm attach point.
4. Lift cylinder attach point.
5. Lower lift arm attach point.
÷
NOTE! Position 1 and 2 are for suspended sprayers only.
