3 - Description
44

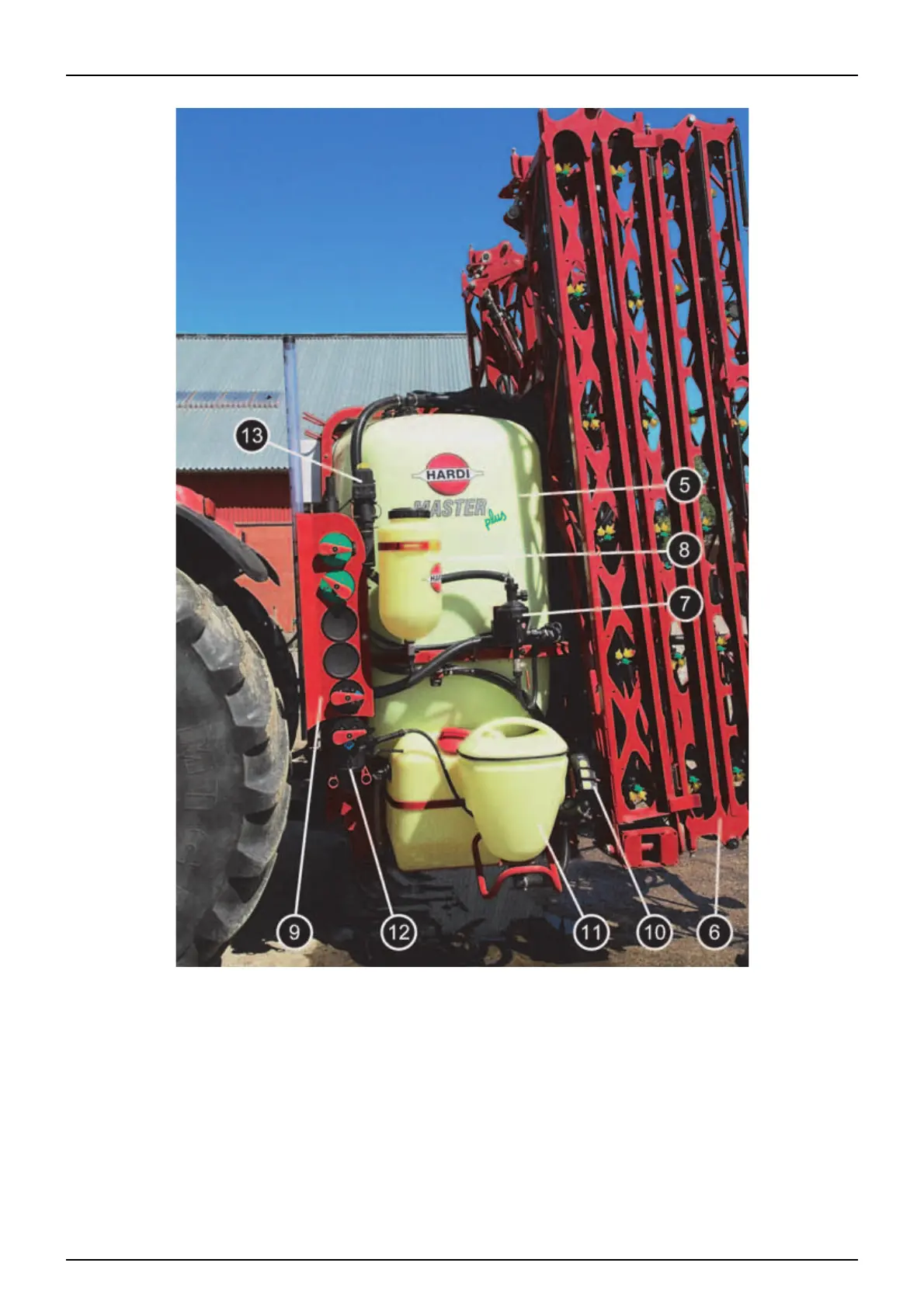

Side view
5. Main tank.
6. Spray boom.
7. Self-cleaning filter.
8. Clean water tank 15 litres.
9. Filling device for main tank.
10. Controls for TurboFiller. Manual valve control.
11. TurboFiller. Device for filling chemicals into the tank.
12. Manifold valve system. Valves to operate the liquid system.
13. Pressure regulation valve.
