HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL
5.9 Control Box for ESC-Controls
The control box for ESC-Controls should be mounted at a convenient
place in the tractor cab. The control box has 4 screw holes in the back
cover, which need to be drilled out for mounting on a flat surface, using
the mount plate, bracket, and hardware furnished with the sprayer.
Power requirement is 12V DC. There should be a 8amp fuse protecting
this circuit. Note polarity.
Brown pos. (+), Blue neg. (-)
Use the optional HARDI Electric 12 volt outlet box (No. 817925) if more
than one power outlet is required.

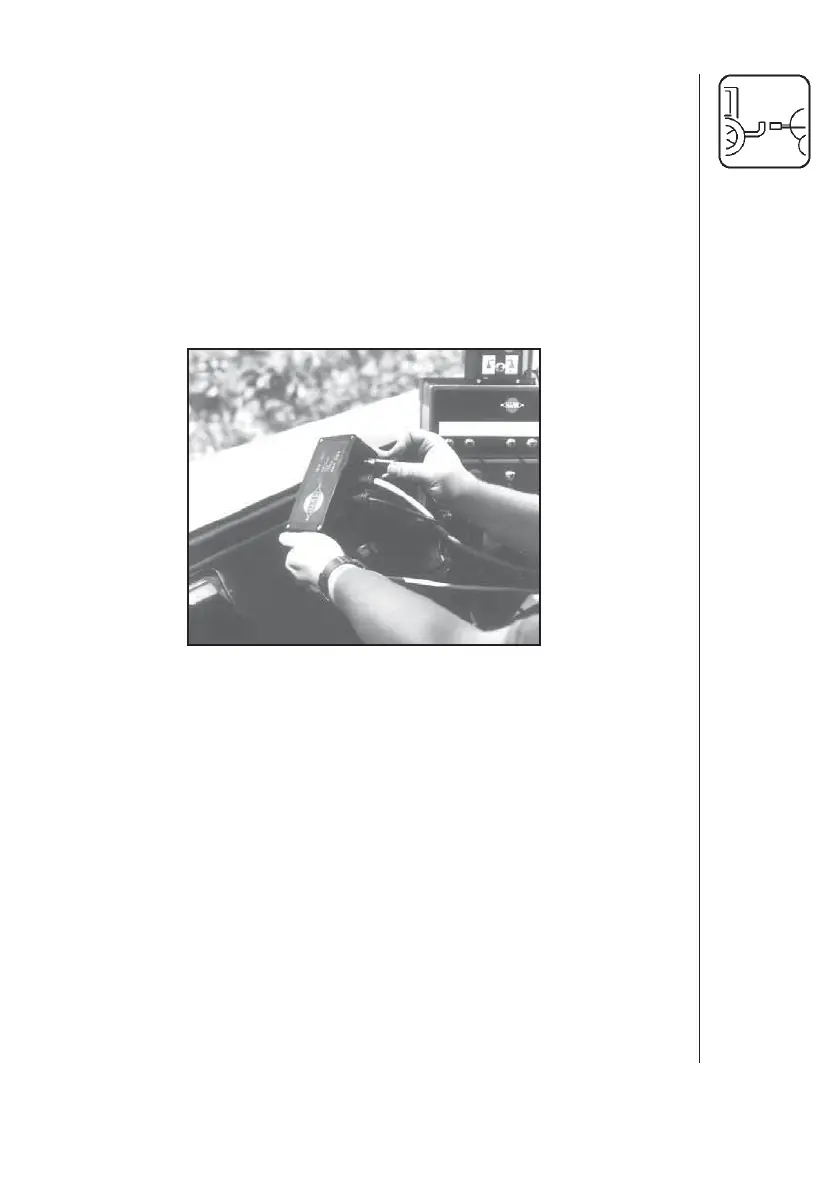

Fig. 16
(12-volt junction box for 12-volt hook-up for ESC controls, foam marker,
boom hydraulic controls, etc)
