HARDI MEGA 230 / 350 CENTRIFUGAL OPERATORS MANUAL

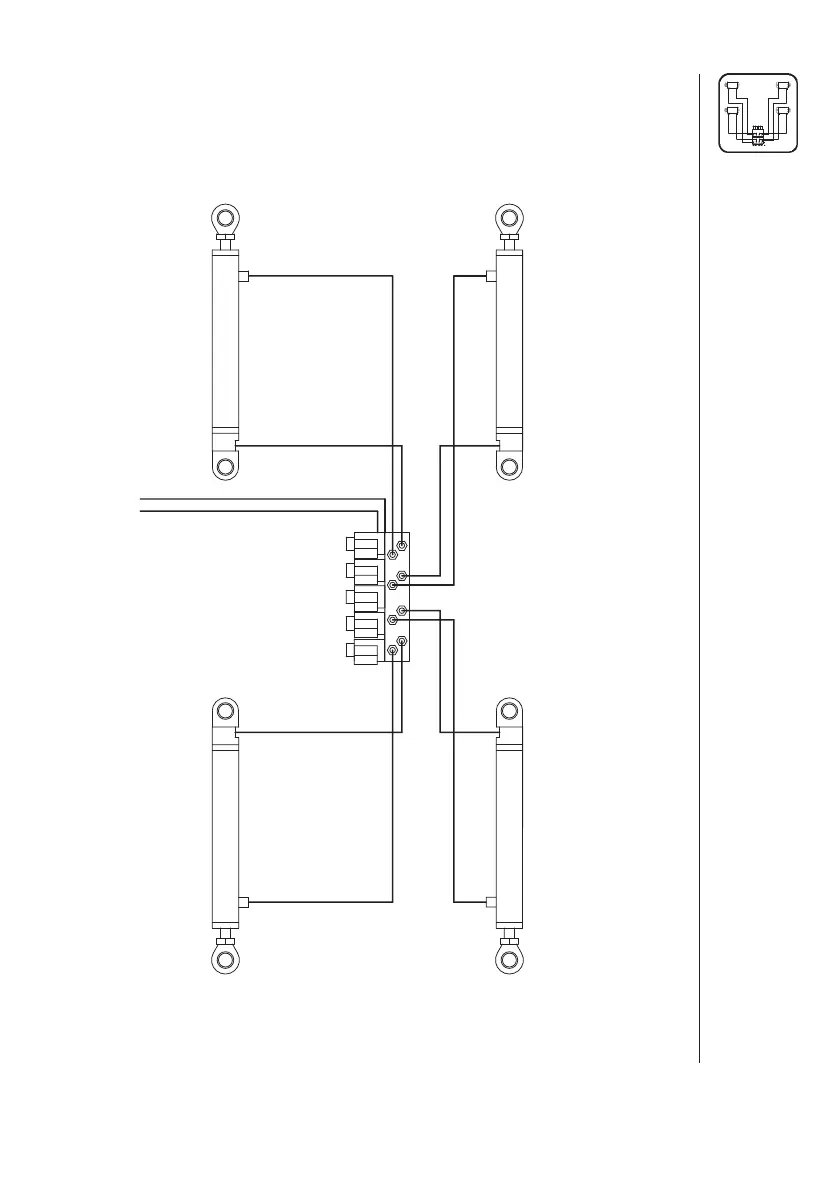

11.7 HZ-Schematic
Fig. 50
LEFT FOLD
RIGHT FOLD
RIGHT TILT
LEFT TILT
L= 3100 (10'2")
L= 3000 (9'10") L= 3000 (9'10") L= 3100 (10'2")
L= 2300 (7'7") L= 2300 (7'7")
L= 2450 (8') L= 2450 (8')
L= 5000 (16'5")
TO TRACTOR
