8.3 Aligning Wing Assemblies (cont'd)
4. Disconnect cylinder rod eye (B) from the intermediate boom section.
5. Loosen jam nut (A) and adjust rod eye (B) IN to move boom forward
or OUT to move boom rearward. Tighten jam nut (A).
6. Reattach cylinder rod to boom and pressurize cylinder to check boom
alignment.
8.4 Aligning Intermediate and Outer Boom Sections
1. Unfold boom into operating (spraying) position.
2. Hold M12x100 adjusting bolt, loosen lock nut, and turn nut so cap
screw head contacts top stop with outer and intermediate boom sections
aligned.
3. Check to ensure that lock nut is tight.

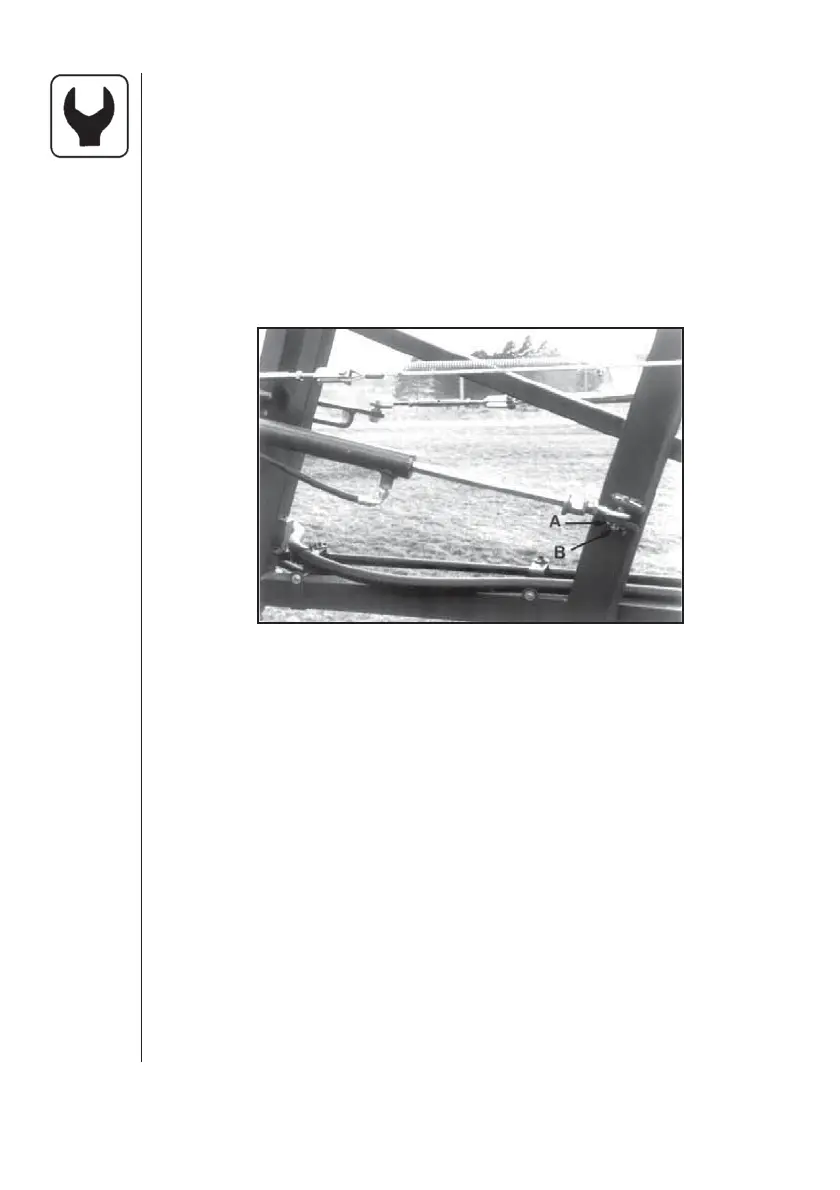

Fig. 37
