11HARDI
®
New NAVIGATOR OPERATOR’S MANUAL

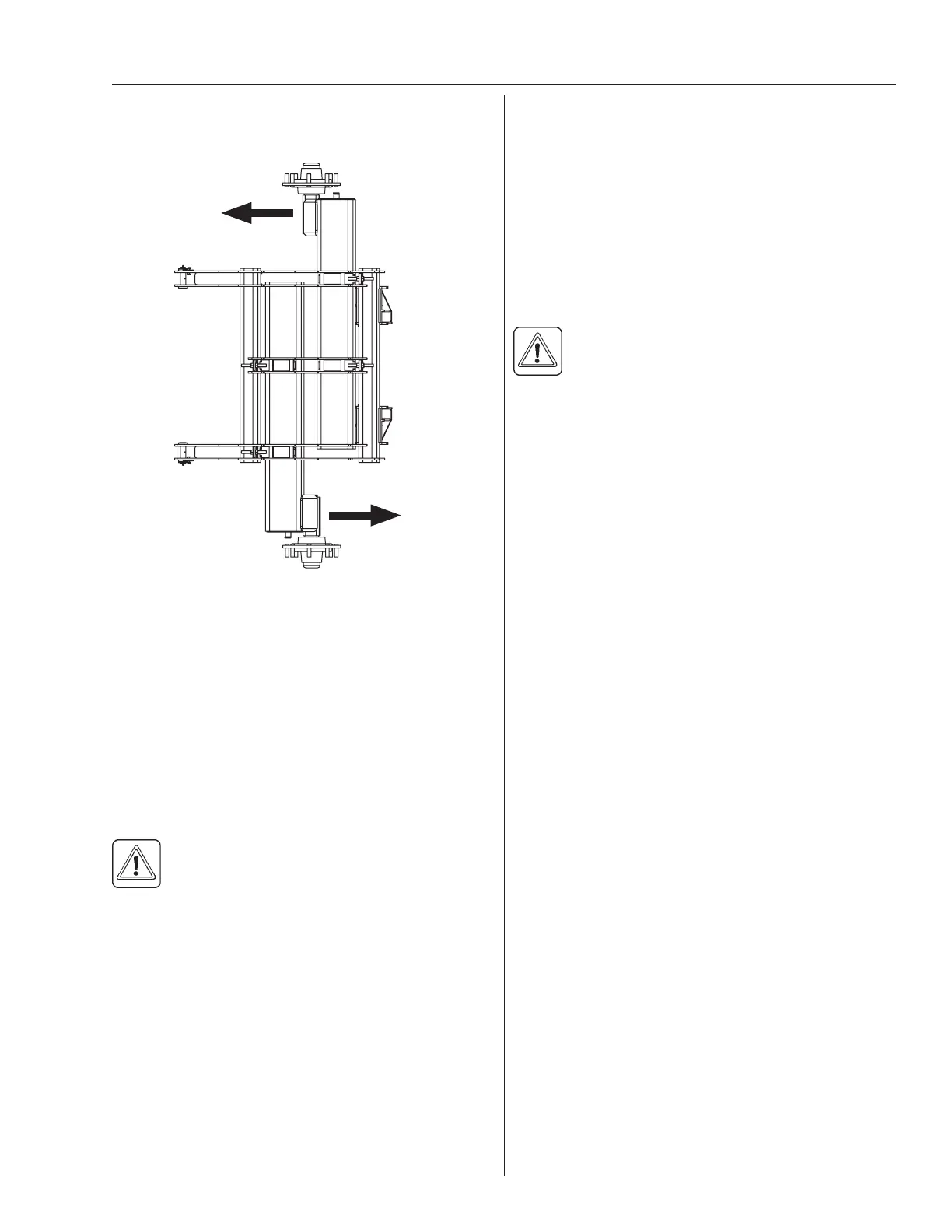

Note: Make sure the left axle offset faces the front of
the sprayer and the right axle offset faces the
rear of the sprayer so the axles are aligned.
3 Re-insert axle insert and follow steps 5-9 in "Wheel
spacing adjustment" section to tighten.
4 Repeat procedure for right axle insert.
Tires
Equal pressure in both tires is essential. Pressure
should be kept as low as practical. For recommended
pressures see
Tire pressures
(p. 34).
WARNING! Never infl ate tires above the
spec i fi ed pressures. Over-infl ated tires can
explode and cause severe personal injuries.
Note: Sprayers fi tted with rate controllers/mon i tors
must always main tain the same tire pressure as
when calibrated.
Sprayer Setup
Hydraulic System
Connection requirements
Connection requirements for
EAGLE™ booms
are:
• One single acting outlet for the lift function of the
spray boom.
• One double acting outlet for the folding and/or tilt
function of the spray boom.
Note: The hydrau lic system requires an oil capacity
of approximately 0.8 GPM (3 liters) and a minimum
pressure of 1,950 PSI (130 bar).
BE SURE TO HOOK UP HYDRAULIC LINES
PROP ER LY !
ENSURE HY DRAU LIC LINES HAVE NOT BEEN
DAM AGED DURING SHIPPING.
ESCAPING HYDRAULIC FLUID UNDER PRESSURE
CAN PENETRATE THE SKIN CAUSING SERIOUS
INJURY. AVOID THIS HAZARD BY RE LIEV ING
PRESSURE BEFORE DISCONNECTING
HY DRAU LIC LINES.
ENSURE ALL CONNECTIONS ARE TIGHT BEFORE
APPLYING PRESSURE, SEARCH FOR LEAKS WITH
A PIECE OF CARDBOARD NOT YOUR HANDS!
IMPROPER HOOK-UP CAN CAUSE DANGEROUS
BOOM MOVEMENTS AND/OR DAMAGE TO THE
SPRAYER HYDRAULICS.
DO NOT ALLOW ANYONE NEAR A HYDRAULIC
BOOM IN OPERATION.
ALWAYS SHUT TRACTOR OFF WHEN
CON NECT ING, SERVICING OR ADJUSTING BOOM.
Make sure that the hydraulic couplers are clean before
connecting to the tractor’s remote outlets.
IMPORTANT! Due to the variation in tractor hydraulic
systems and capacities, care should be exercised when
initially operating the sprayer hydraulic cylinders. It is
advisable to adjust the hydraulic fl ow control down to
the minimum rate before operating the system. Adjust/
increase the fl ow control after the system is bled of any
air, if necessary.
BOTTOM VIEW
