Hardi New NAVIGATOR 1100 User Manual

49HARDI
®
New NAVIGATOR OPERATOR’S MANUAL

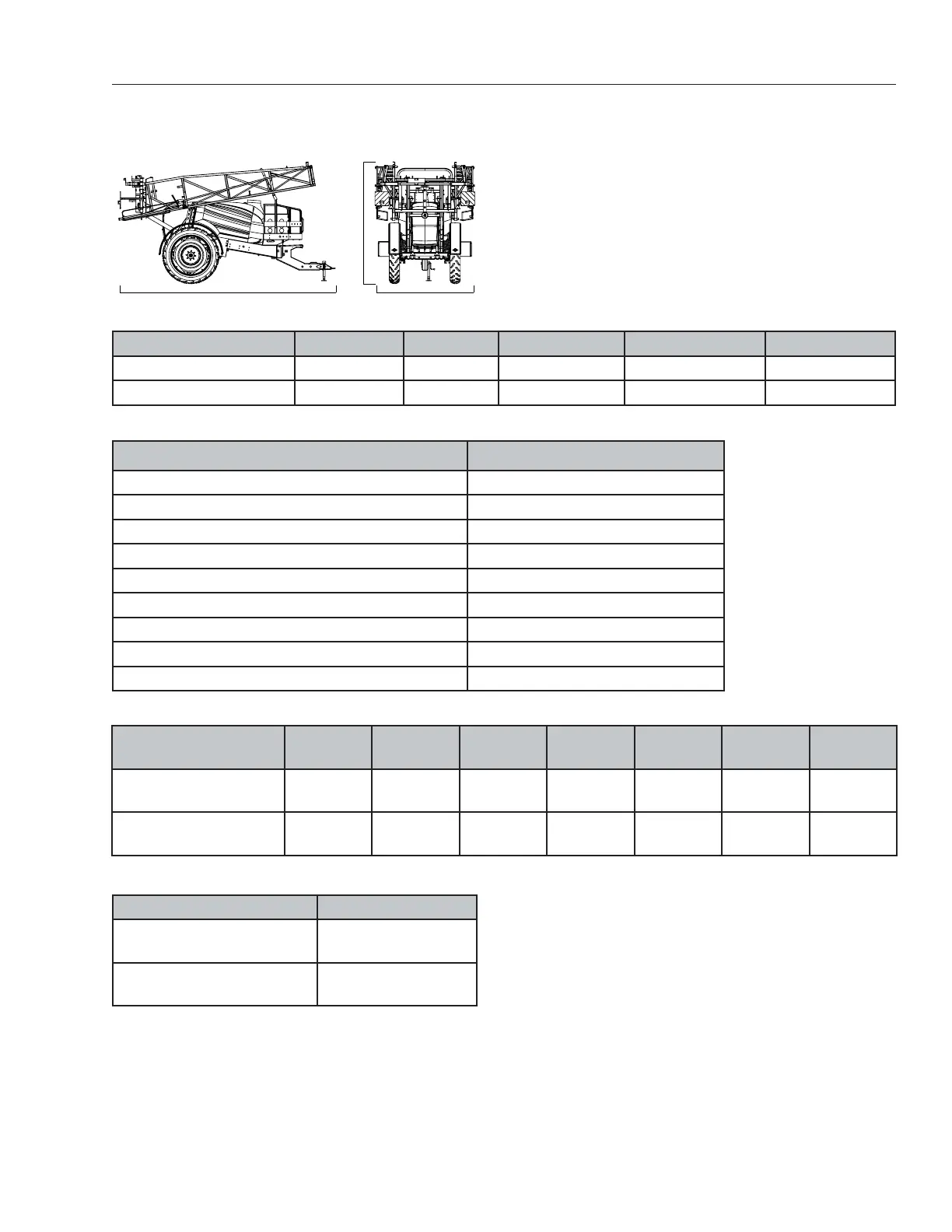

Technical specifi cations
Overall measurements:
Technical specifi cations
A
B
C
Note: 463 High Capacity (HC) diaphragm pump fl uid systems only for 80’- 100’ (24m- 30m) Eagle™ SPC booms.
Note: All weight measurements are approximate values with booms in transport position, fl ush tank & working
platform, clean water tank, chemical inductor and foam marker.
N/A = Not Available
SPECIFICATIONS 1100
Main tank capacity 1100 Gallon (4160 Liter)
Flush tank capacity 130 Gallon (500 Liter)
Foam marker tank capacity 20 or 40 gallon (75 or 150 Liter)
Weight:
60’ (18m) Eagle™ boom - Total weight empty N/A
60’ (18m) Eagle™ boom - Tongue weight empty N/A
100’ (30m) Eagle™ boom - Total weight empty 5495 lbs (2494 kg)
100’ (30m) Eagle™ boom - Tongue weight empty 935 lbs (425 kg)
ABC
Tank size Boom model Boom Size Total Length Total Width Total Height
1100 Gallon (4160 Liter) Eagle™ SPB 60' (18 m) 244" (6200 mm) 10.8 ft. (3270 mm) 120" (3050 mm)
1100 Gallon (4160 Liter) Eagle™ SPC 100' (30 m) 336" (8530 mm) 11.5 ft. (3500 mm) 153" (3880 mm)
Diaphragm
pump models:
1302-540 363-540 363-1000 463-540
463-540
HC
463-1000
463-1000
HC
Max. Pump capacity 30 GPM
(114 l/min)
49 GPM
(182 l/min)
49 GPM
(182 l/min)
69 GPM
(262 l/min)
85 GPM
(322 l/min)
69 GPM
(262 l/min)
77 GPM
(292 l/min)
Max. working pressure: 0-220 PSI
(0-15 bar)
0-220 PSI
(0-15 bar)
0-220 PSI
(0-15 bar)
0-220 PSI
(0-15 bar)
0-220 PSI
(0-15 bar)
0-220 PSI
(0-15 bar)
0-220 PSI
(0-15 bar)
Centrifugal pump models: ACE 206 & ACE 304
Max. Pump capacity
output will vary
with PSI and usage
Max. working pressure:
output will vary
with PSI and usage
