15HARDI
®
New NAVIGATOR OPERATOR’S MANUAL
The HARDI
®
New NAVIGATOR trailer sprayer is available with either diaphragm or centrifugal
plumbing systems. Take time to re view and study the plumb ing di a gram for your sprayer. By
fol low ing the fl ow through the diagram, you will better un der stand the var i ous func tions of your
spray er system.
1. Suction fi lter
2. Suction manifold
3. Pump
4. Pressure manifold
5. Agitation
6. Safety valve
7. HARDI-MATIC
8. Return line (Self-clean ing fi lter)
9. Self-cleaning fi lter
10. Check valves
11. Boom section valves
Operation

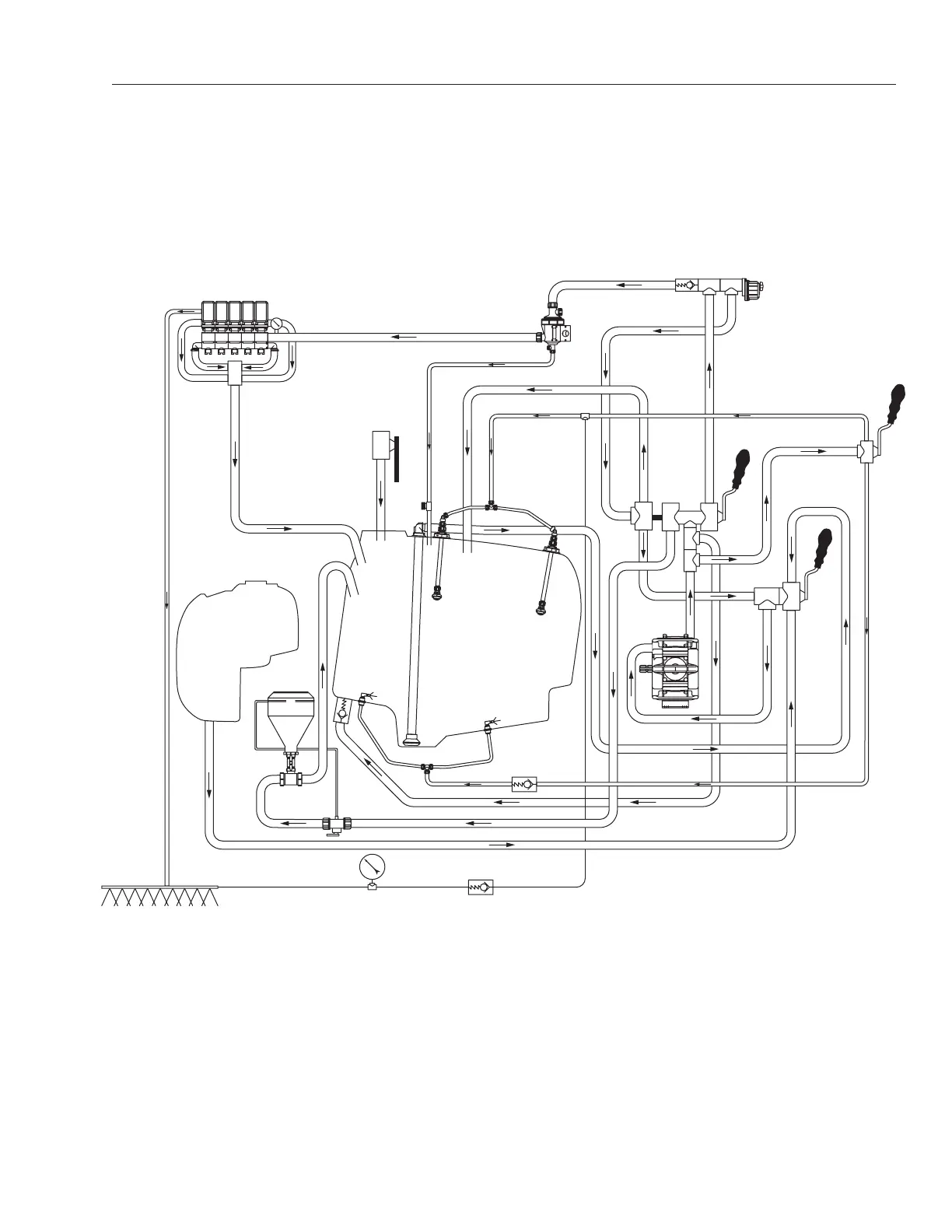

ECP PLUMBING DIAGRAM (for diaphragm pump systems)
12. Pressure equalization return
13. Boom
14. Boom pressure gauge
15. Flush tank
16. Quick fi ll
17. Variable Agitation manifold
18. HARDI
®
chemical inductor
19. Tank rinse nozzles
20. Self-cleaning fi lter shut-off
21. Return by-pass
1
2
3
4
5
5
9
11
12
13
14
15
16
18
19
19
10
10
8
20
10
6
21
17
7
