Hardi New NAVIGATOR 1100 User Manual

50 HARDI
®
New NAVIGATOR OPERATOR’S MANUAL
Filters and nozzles
Filter gauze width
30 mesh: 0.023” (0.58 mm)
50 mesh: 0.012” (0.30 mm)
80 mesh: 0.007” (0.18 mm)
100 mesh: 0.006” (0.15 mm)
Temperature and pressure ranges
Operating temperature range:
36°F to 104°F (2° to 40° C.)
Operating pressure for safety valve:
220 psi (15 bar)

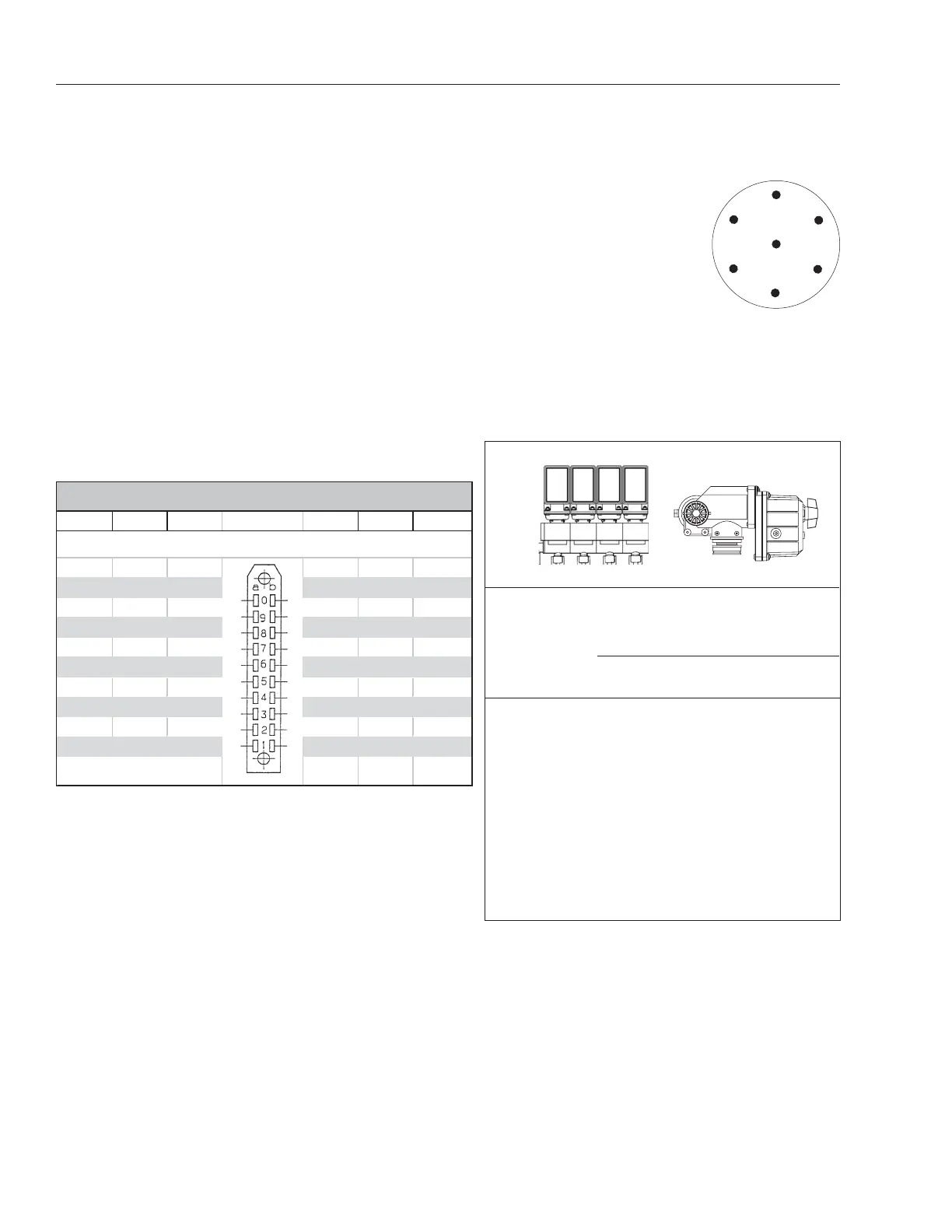

Technical specifi cations
Electrical connections
Rear lights
Position Wire color
1. Ground White
2. Work lamps Black
3. LH fl ashing & turn indicator Yellow
4. Free Red
5. RH fl ashing & turn indicator Green
6. Free Brown
7. Free Blue
The wiring is in accordance with ANSI/ASAE S279.11.
1
2
3
4
5
6
7
ECP/ECPC
B B B B
3/4 5/6 7
Valve Wire number or color code
B1 1-2 1-2 1-11
B2 3-4 3-4 2-12
B3 5-6 5-6 3-13
B4 7-8 7-8 4-14
B5 9-10 5-15
B6 11-12 6-16
B7 7-17
REG 9-10 13-14 9-10
B8
G/Y = Green/Yellow
Number of distribution valves
Electrical connections for ECP/ECPC
operating unit
20 pole plug with cable
13 10 10 14
G/Y 11 11 15
11
Number of distribution valve
Wire number or color code
6 & 5 4 3 & 2 2 & 3 4 5 & 6
G/Y = green/yellow
99
G/Y
G/Y
11
1
33
5
7
9
5
7
3
5
2
4
6
2
4
6
8
10
12
2
4
6
8
