24 HARDI
®
New NAVIGATOR OPERATOR’S MANUAL
Nozzle Se lec tion
Correct selection of noz zle and calibration of the spray er are critical to achieve ac cu rate and cost effective use of
farm crop protection prod ucts.
Your HARDI
®
sprayer has been supplied with 110° fl at spray Red ISO Color Tips™ that will apply approximately 20
U.S. GPA at 30 PSI and 5 MPH.
The 110° fl at spray noz zle was chosen rather than the 80 degree nozzle for two reasons: 1- It may be used at a
lower minimum height which reduces the risk of wind drift; 2- it's greater overlap permits better uni for mi ty of spray
distribution, particularly if boom height varies on rough ground. Normal boom height setting with 110° nozzles is 18"
to 20" above the crop or weeds, whichever is taller.
Should you wish a different application rate or different type of nozzle, HARDI
®
manufactures a nozzle for virtually
every need.
IMPORTANT: Always consult your chemical supplier for rec om mend ed chemical rate and water
application rate. Always wear protective gloves when handling nozzles.

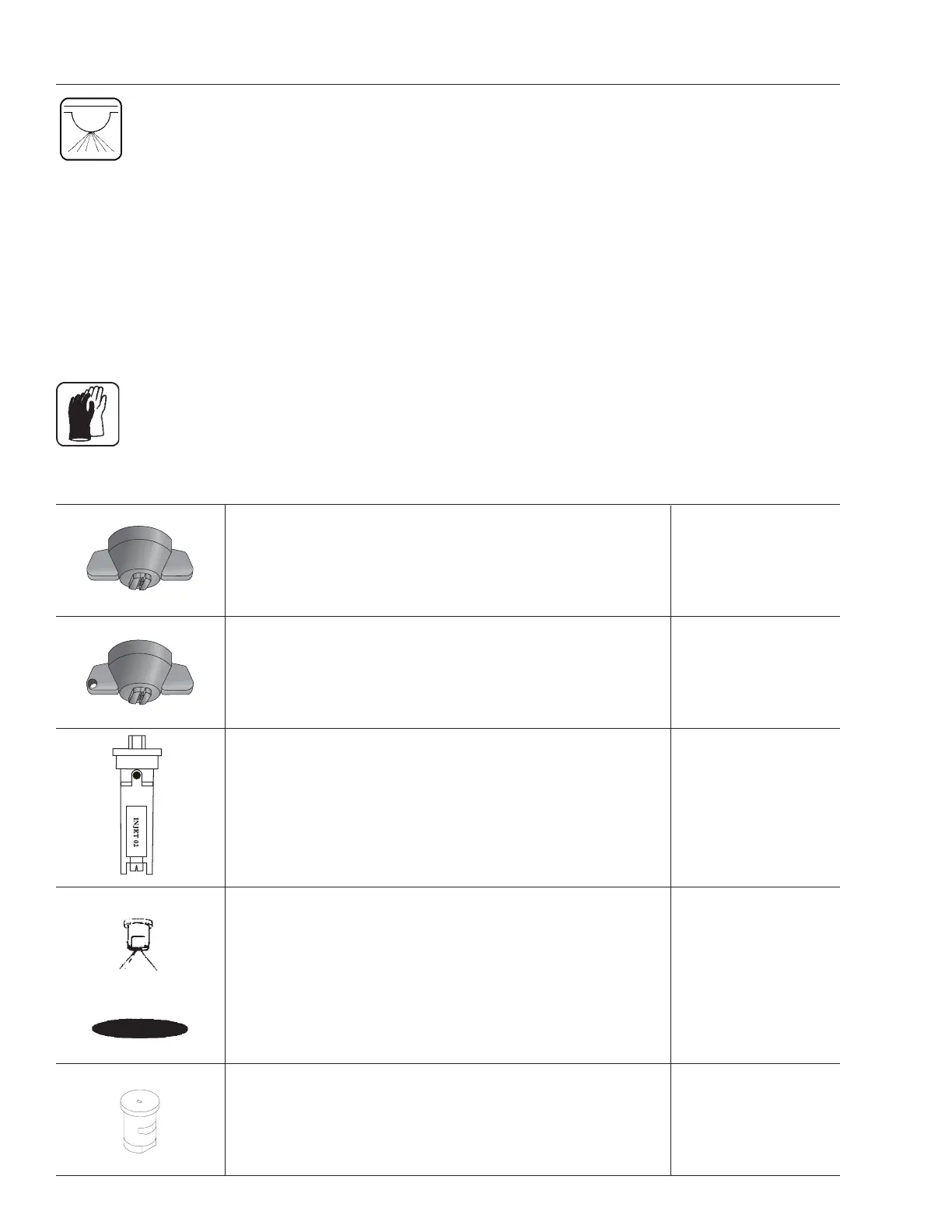

The following tables show what types of spray nozzles are suit able for different applications. It is im por tant to use
the correct nozzle.
Nozzle Selection
HARDI
®
ISO COLOR TIPS™ 110 degree fl at fan,one piece
cap and nozzle; color coded for fl ow rate selection.
For herbicides, insecticides, and fertilizer applications. 50,
80, and 100 mesh screens are normally used.
HARDI
®
ISO LowDrift COLOR TIPS™ 110 degree fl at
fan,one piece cap and nozzle, 1553 solid stream nozzle;
color coded for fl ow rate selection.
F110
LD110
HARDI
®
INJET™ Nozzles; air inclusion nozzles with
removable restrictor. Color coded for fl ow rate selection.
In-Line Filters will normally be used.
FLAT SPRAY NOZZLES in 65 degree, 80 degree, and
110 degree spray angles. For herbicides, insecticides, and
fertilizer applications. 50, 80, and 100 mesh screens are
normally used.
4665-65 degree
2080-80 degree
4110-110 degree
Part # 330013-
O-ring
FLOOD NOZZLES set at 40" spacing. Designed for high
volume application.
4598
