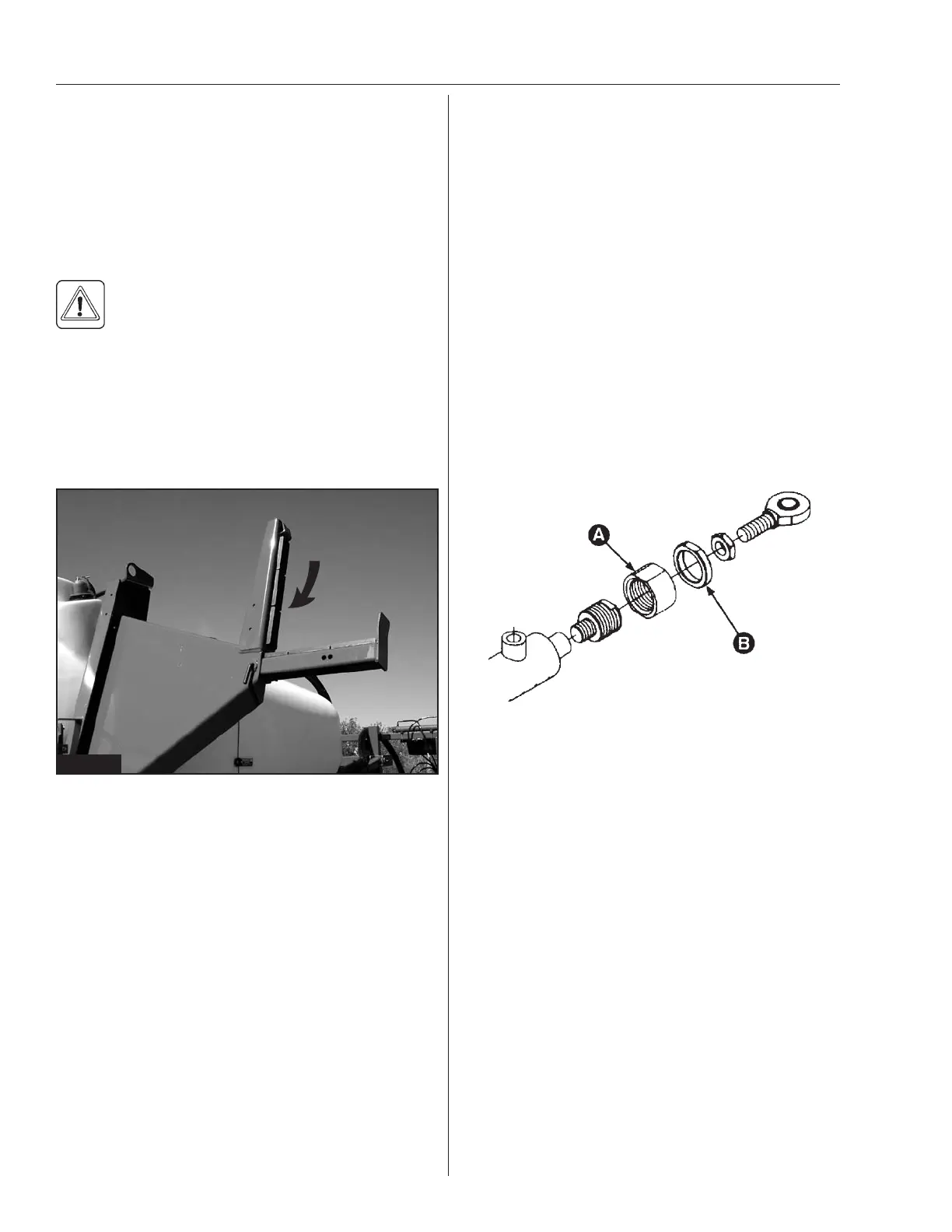

Adjusting boom transport position
If the boom wings do not rest accurately in the
trans port brackets, the hydraulic fold cylinders can be
adjusted so the wings stop at the right position above
the transport brackets (
Fig 13
).
Fig. 14
The cylinders can be adjusted as described below:
1. Lift the boom all the way to the top.
2. Fold the boom into transport position. With the fold
cylinder pressurized, determine if the boom wings
need to be adjusted inwards or outwards.
3. Relieve the pressure from the fold cylinder by
un fold ing the boom a few inches.
If the boom rests too far in on the transport brackets,
loosen the nut (B
Fig 14
) and adjust collar (A
Fig 14
)
in towards the cylinder housing.
If the boom rests too far out on the transport brack ets,
the collar (A
Fig 14
) has to go out from the cylinder
housing.
4. Secure jam nut (B
Fig 14
).
5. Pressurize the cylinder to see if the boom is properly
adjusted. If not, repeat the above pro ce dure until it is
correctly adjusted.
Sprayer Setup
Transport bracket settings
The transport brackets on the New Navigator for the
Eagle™ SPB and SPC booms are installed at the fac-
tory and have no adjustment.
The rear transport lock is adjustable, but is set at the
factory according to the boom installed on the sprayer.
This should not need adjustment unless a different
boom is installed on the sprayer.
WARNING! Always measure the actual total
height of your sprayer to be sure that there is
plenty of clearance at all times while trans-
port ing the sprayer.
Eagle™ Transport bracket
Fig. 13
