21HARDI
®
New NAVIGATOR OPERATOR’S MANUAL
ADDING CHEMICALS
Chemicals can be fi lled into the tank two different ways:
1. Through the tank lid.
2. By using the HARDI
®
CHEMICAL FILLER device.
WARNING! Be careful not to slip or splash
chem i cals when carrying chemicals up to
the tank lid.
WARNING! Always use the personal
pro tec tion stated on the chemical container
and as a minimum, always use gloves, face
pro tec tion shield and coveralls.

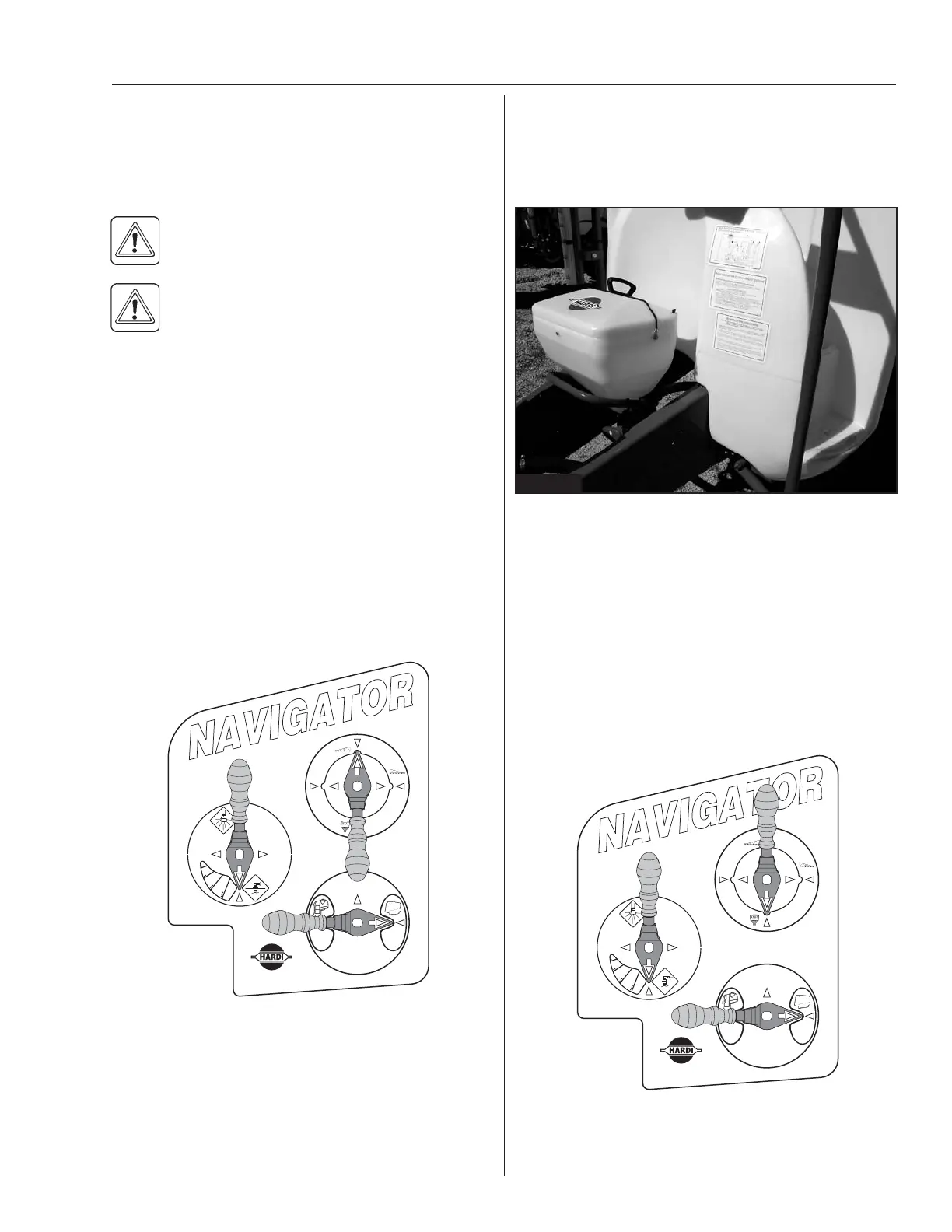

Filling through the tank lid
The chemicals are fi lled through the tank lid - Note
instructions on the chemical container!
1 Fill the main tank with clean water, allowing space for
the addition of chemicals. See Filling tanks with water
(pp. 17-18).
2 Make sure the ECP operating unit main on/off switch
is in the off position.
3 Turn the Select Source handle to MAIN TANK. Turn the
Select Function handle to SPRAY MAX AG I TA TION,
and turn the Variable Agitation handle straight down for
maximum fl ow through the agitation nozzles ( Fig 22 ).
4 Engage the pump and set P.T.O. revolutions to 540
r.p.m. or 1000 r.p.m. (depending on pump model).
5 Add the chemicals through the main tank hole.
6 When the spray liquid is well mixed, it may be
sprayed on the crop. Leave the Select Function
handle pointing to the SPRAY MAX AGITATION
arrow and turn the Variable Agitation handle down
so the spray liquid is continuously ag i tat ed while
spraying ( Fig 22 ).
Operation
Filling with the HARDI
®
chemical fi ller
(optional)
The HARDI
®
CHEMICAL FILLER is located directly in
front of the fl ush tank / working platform.
Operating with Liquid-based chemicals
1 Make sure the ECP operating unit main on/off switch
is in the off position.
2 Fill the fl ush tank with clean water and fi ll the main
tank at least 1/3 with clean water (unless something
else is stated on the chemical container label). See
Filling tanks with water (pp. 17-18).
3 Turn the Select Source handle to MAIN TANK. Turn
the Select Function handle to CHEM FILL and
turn the Variable Agitation handle straight down for
maximum fl ow through the agitation nozzles ( Fig 24 ).
SPRAY
SPRAY
BYPASS
TO
SUCTION
BYPASS
TO TANK,
PRIME,
MAX AGITATION
SELECT FUNCTION
OFF
SELECT SOURCE
MAIN
TANK
97608703
SAFETY
VALVE
PURGE
CHEM
FILL
FLUSH
CHEM
FILL
FLUSH
BOOM
OFFOFF
FLUSH
TANK
FLUSH
TANK
FLUSH
TANK
Fig. 22
SPRAY
SPRAY
BYPASS
TO
SUCTION
BYPASS
TO TANK,
PRIME,
MAX AGITATION
SELECT FUNCTION
OFF
SELECT SOURCE
MAIN
TANK
97608703
SAFETY
VALVE
PURGE
CHEM
FILL
FLUSH
CHEM
FILL
FLUSH
BOOM
OFFOFF
FLUSH
TANK
FLUSH
TANK
FLUSH
TANK
Fig. 24
Fig. 23
