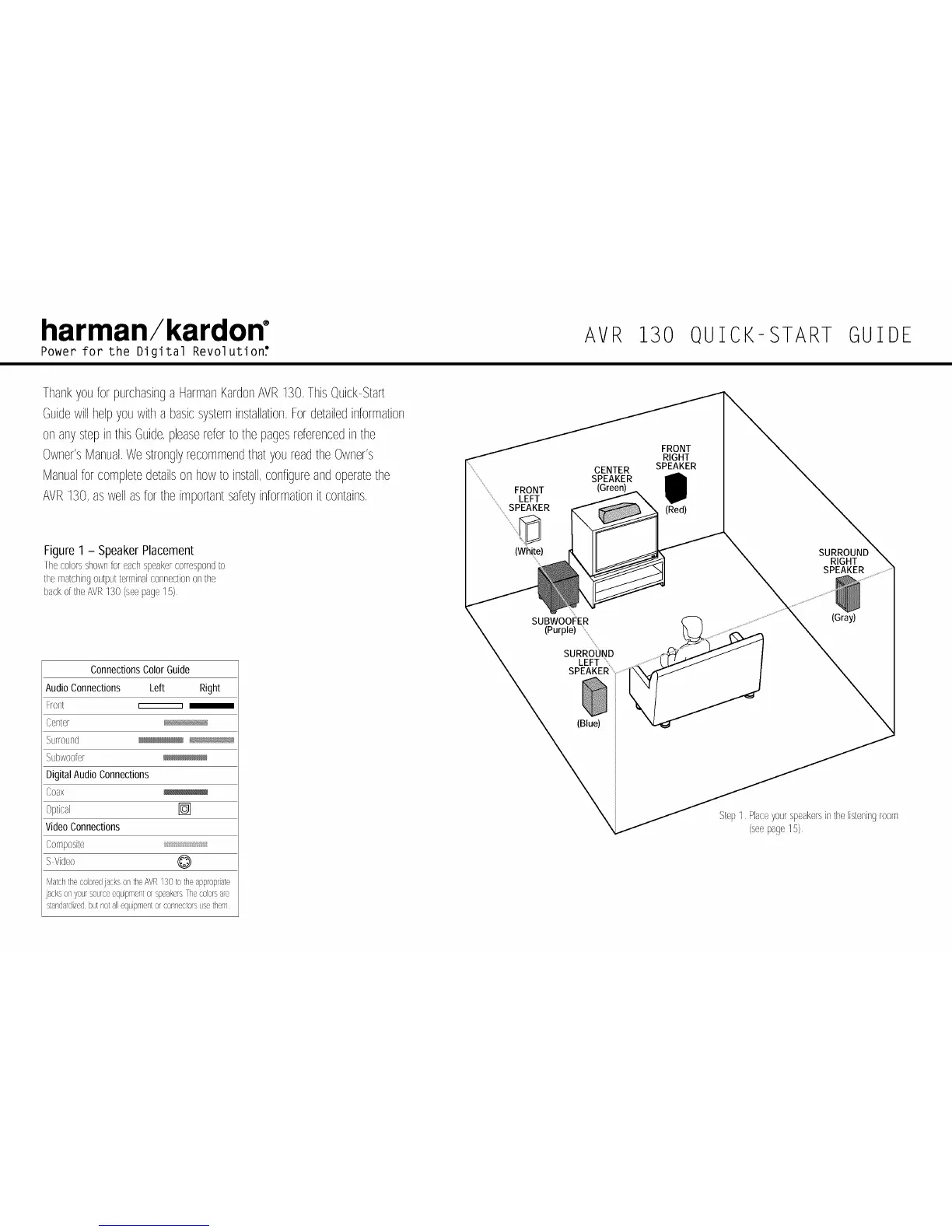

harman/kardon ° AVR 130 QUICK-START GUIDE
Power for the Digital Revolution:
Thankyou for purchasinga HarmanKardonAVR130,ThisQuick-Start
Guidewill helpyouwitha basicsysteminstallation,Fordetailedinformation
on any stepin thisGuide,pleasereferto the pagesreferencedin the
Owner'sManual,Westronglyrecommendthatyou readtheOwner's
Manualfor completedetailson howto install,configureandoperatethe
AVR130,as wellasforthe importantsafetyinformationit contains,
Figure1- SpeakerPlacement
Ihe colorsshownlot eachspeakercorrespondto
thematchingoutputterminalconnectiononthe
backof theAVR130 (seepage15)
ConnectionsColorGuide
AudioConnections Left Right
Fron't _
Cen'mr
Surround
Subwoofer
DigitalAudioConnections
Coax
[]
VideoConnections
S Video _)
Matchthecoloredjackson tie AVR]30 totie appropriate
jacksonyoursourceequipmentorspeakersThecolorsare
atandadized,butnotallequipmentorconnectorsusethem
FRONT
LEFT
SPEAKER
(White)
FRONT
RIGHT
CENTER SPEAKER
SPEAKER I
(Green)
(Red)
SURROUND
RIGHT
SPEAKER
SUBWOOFER
(Purple) ...............................
SURROUND
LEFT ........
(Gray)
(Blue)
Step1 Placeyourspeakersinthelisteningroom
(seepage15)

Harman Kardon AVR 130 Specifications

General

Type	AV Receiver
Channels	5.1
Component Video Inputs	2
Analog Audio Inputs	6
Total Harmonic Distortion	0.07%
Input Sensitivity	200mV
Tuner Type	AM/FM
Frequency Response	10 Hz - 100 kHz
Digital Audio Inputs	1 Coaxial, 2 Optical
Input Impedance	47 kOhms
Dimensions (W x H x D)	440mm x 165mm x 386mm
Video Inputs	3 Composite
Stereo Mode Power	50W
