Harman Kardon AVR 645 Owner's Manual

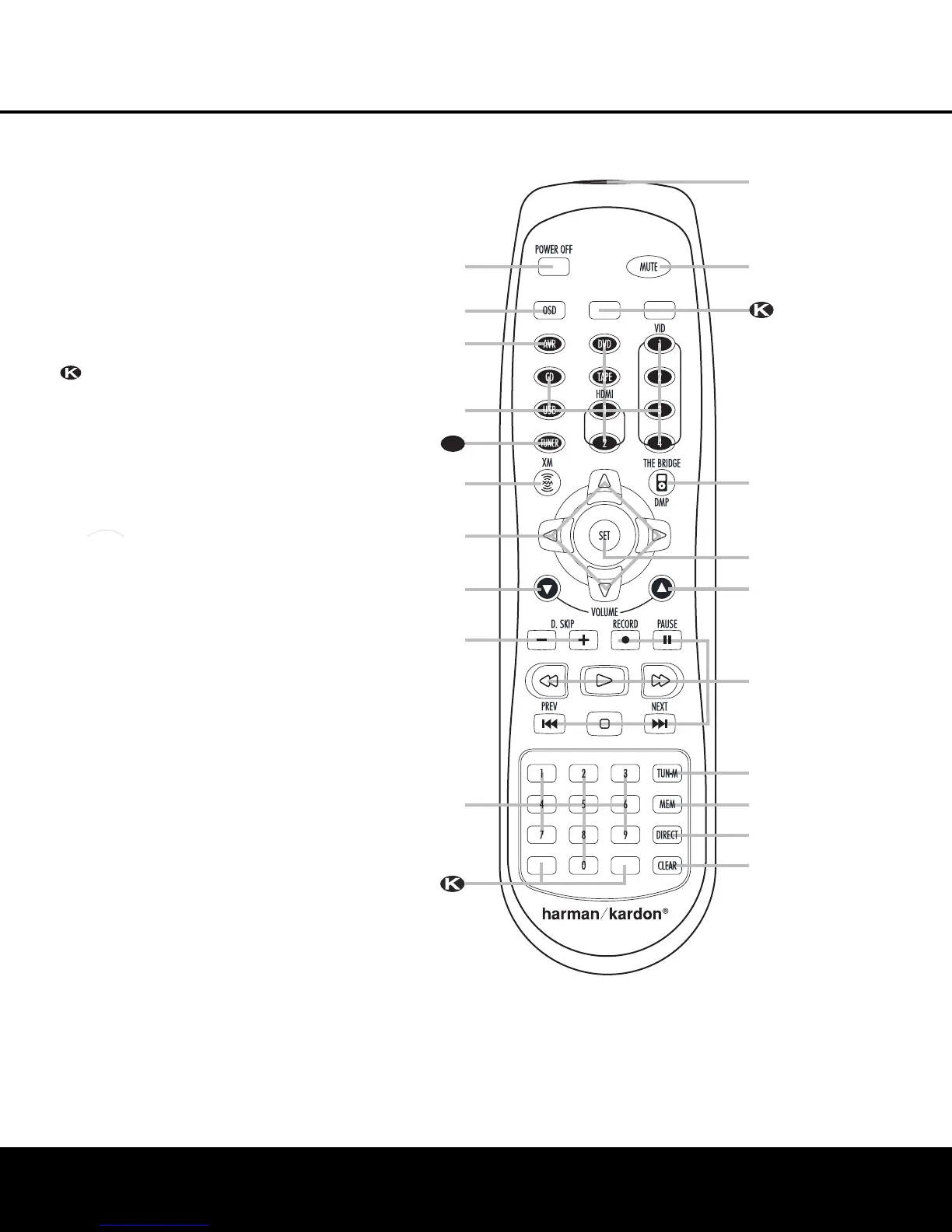

ZR 10 REMOTE CONTROL FUNCTIONS
å Power Off Button
∫ OSD Button
ç AVR Selector Button
∂ Input Selectors
≠ Tuner Selector
ƒ XM Radio Selector
© Navigation Controls
˙ Volume Up/Down Buttons
î Disc Skip Buttons
Δ Numeric Keys
Blank Buttons
¬ Clear Button
μ Direct Button
ñ Memory Button
ø Tuner Mode Button
π Transport Controls
œ Set Button
® /DMP Selector
ß Mute Button
† IR Transmitter Lens
The
Bridge
TM
å
∫
ç
∂
ƒ
©
˙
î
Δ
¬
μ
ñ
ø
π
œ
®
ß
†
E
˙
NOTES:
•
The ZR 10 remote may be used either in the same room
where the AVR 645 is located or in a separate room
with an optional infrared sensor or A-BUS
®
product that
is connected to the AVR 645’s
Multiroom IR Input
Jack
N. When it is used in the same room as the
AVR 645, it will control the functions of the AVR 645
or any compatible Harman Kardon products in that
room. When it is used in a separate room via a sensor
connected to the
Multiroom IR Input Jack e, the
buttons for Power, Input Source, Volume and Mute will
control the source and volume for the second zone, as
connected to the
Multiroom Audio Output Jacks
ª. (See page 46 for complete information on using
the Multiroom system.)
• To make it easier to follow the instructions that refer to
the controls and connectors in this illustration, a larger
copy may be downloaded from the Product Support
section for this product at www.harmankardon.com.
ZR 10 REMOTE CONTROL FUNCTIONS 15
HKP1445AVR645om 6/7/06 6:34 PM Page 15
