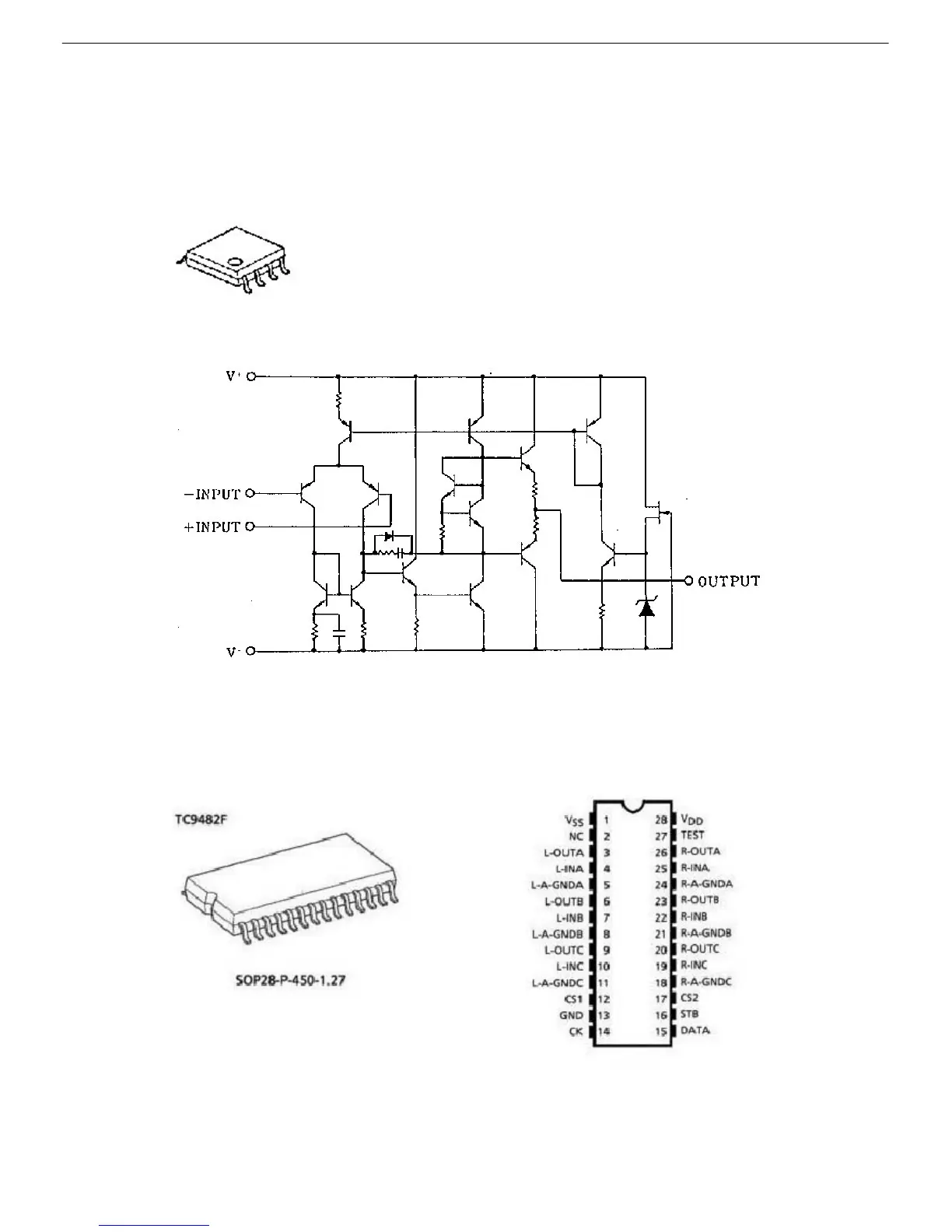

22. NJM2068M (DSP: IC13, 41, 42, 43, 44, 49, 60, 61, 62, 63, 64, 65, 66, 67, 68, 69, 71, 72)
(FRONT: IC50, MAIN: IC22)
(PROCESSOR: IC2, 3, 4, 5, 6, 7, 10, 11, 25, 13, 14, 18, 19, 21, 22, 23, 24, 26)
(RS232: IC61)
NJM4580M (PROCESSOR: IC1)
23. TC9482BFG (PROCESSOR:IC16, 17)
AVR745
harman/kardon
59
