Harman AMX DVX Series User Manual

41

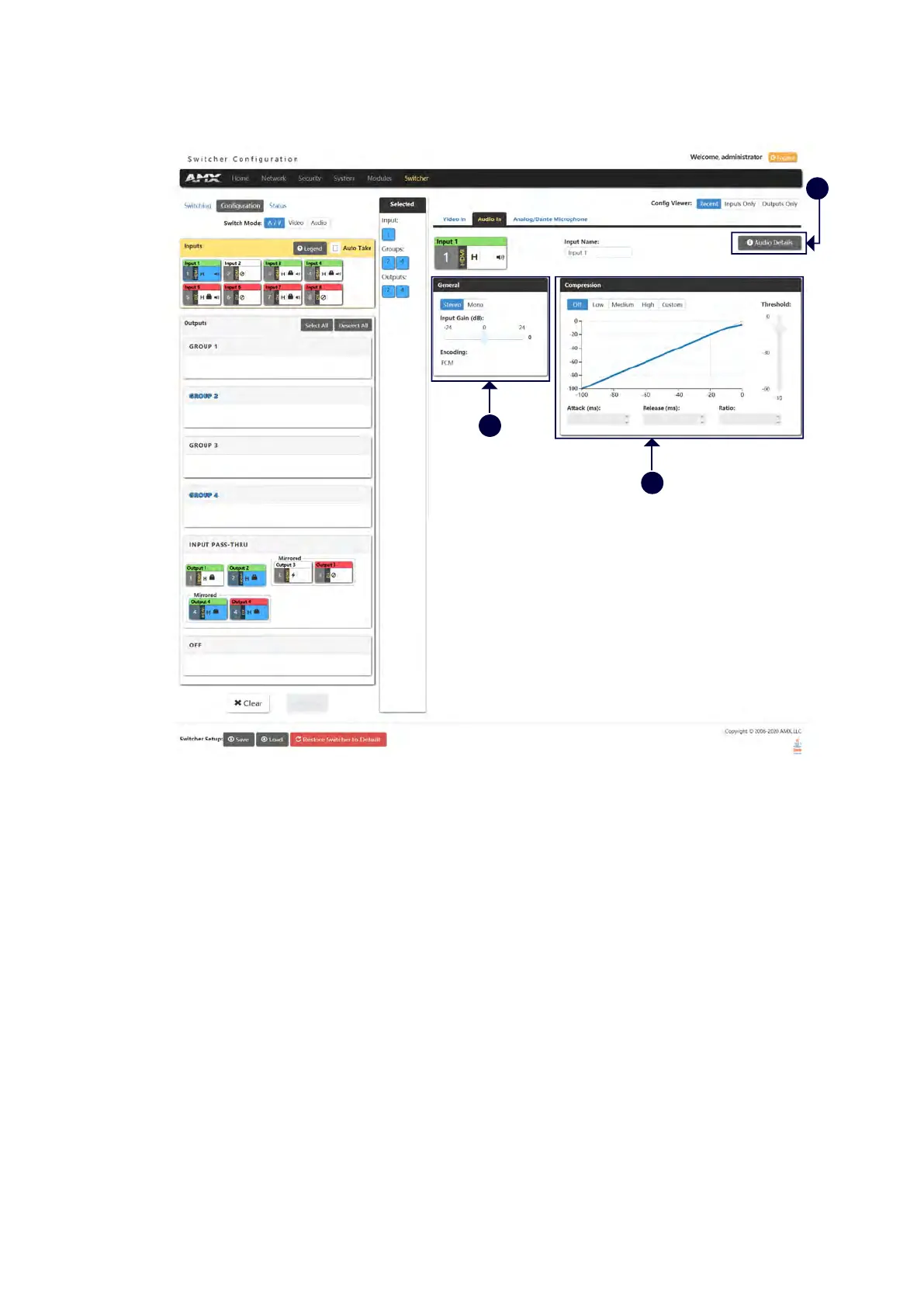

Settings for Audio In:
1
2
3
1- Audio Details: Click the button to enter the Audio detail information page of the selected input port.
2- General: This area enables you to set analog format and gain for the selected input port.
Stereo/Mono Selection Buttons: Use the menu to select the format for the audio input. You can choose
from Stereo or Mono.
Input Gain (dB): Use the slider to adjust the gain level of the audio input. You can set the gain from -24 to
+24dB in 1dB increments. The default setting is 0.
Encoding: Shows the audio encoding format.
3- Compression: Use the menu to select the compression level of the selected audio input. You can choose
from Off, Low, Medium, High, and Custom. The default value is Off. Selecting any option other than Off
enables you to adjust settings for Attack, Release, Ratio, and Threshold.
Attack: Sets the duration, in milliseconds, of the attack phase while compressing. You can set a value
between 1 and 2000.
Release: Sets the duration, in milliseconds, of the release phase while compressing. You can set a value
between 1 and 5000.
Ratio: Sets the ratio while compressing. You can set a value between 1 and 20.
Threshold: Sets the threshold while compressing. You can set a value between 0 and -60.
