Outside Lifts - Installation & Owner’s Manual 2013
15
Section 2 : inStaller
Preparation
INSTALLATION OVERVIEW
Read & understand this Manual prior
to installation or operation.
Knowing the lift’s adjustments and the tips on proper installation
techniques will save time, energy and avoid possible injury. If you
do not understand any portion of installation or operation, please
consult our technical service department or authorized mobility
dealer.
Quick Reference – Installation Procedure
1. Wire the Vehicle. See page 17.
Installing the wiring harness first will ensure you have power
to the lift during installation. This allows the motor to do the
lifting for you. (If you skip this step, use a shop battery.)
2. Position the
open box behind
the vehicle. Slice
the corner seams.

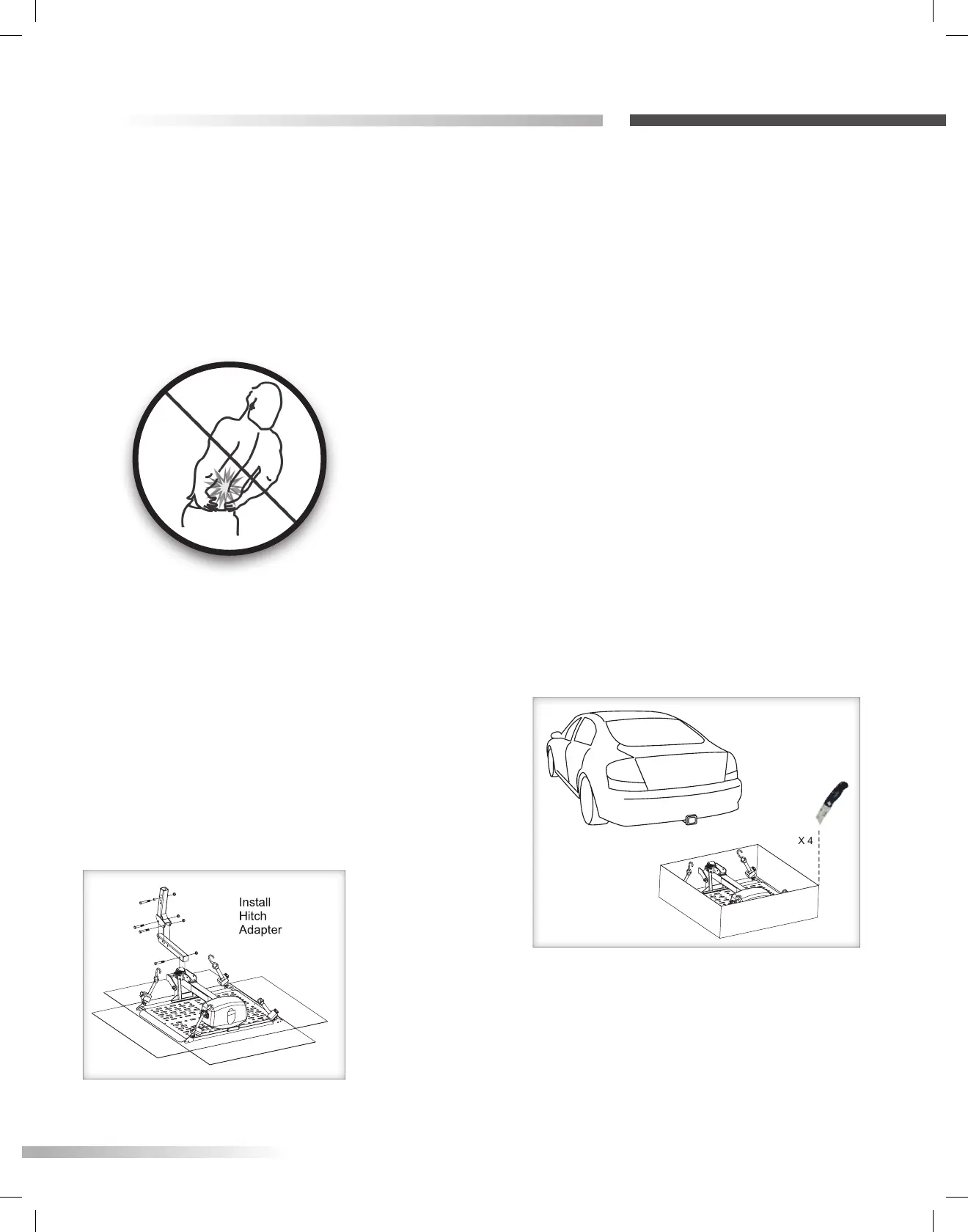

[Figure 15-1]
3. Determine / Install Hitch Height / Adapter. Measure the
hitch to ground distance so you can save time by selecting
components that fit between lift and vehicle so as to maintain
proper ground clearance. [Figure 15-2] Install Hitch Adapter
that fits the application. See pages 21 to 25.
Figure 15-2
Figure 15-1
Never attempt to pick up the lift from the box,
ground or on/off a vehicle alone.
If you follow the proper installation procedure, no
heavy lifting will be needed, and the lift practically
installs itself.
