CHAIR PREPARATION
A lift with four securement straps offers two options
for attaching strap hooks to the chair, Anchor Plate or U-Bolt Kit.
The lift includes both sets of options. [Figure 28-1]
ANCHOR PLATE
The Anchor Plate is a 20” long flat plate with a slot in each end. It attaches to the bottom of any chair or
scooter that has a center seat post. [Figure 28-2]
The Anchor Plate should extend about 1-1/2” out from the side of the cushion. The user can attach the
strap hooks to the Anchor Plate in order to secure the chair to the lift.

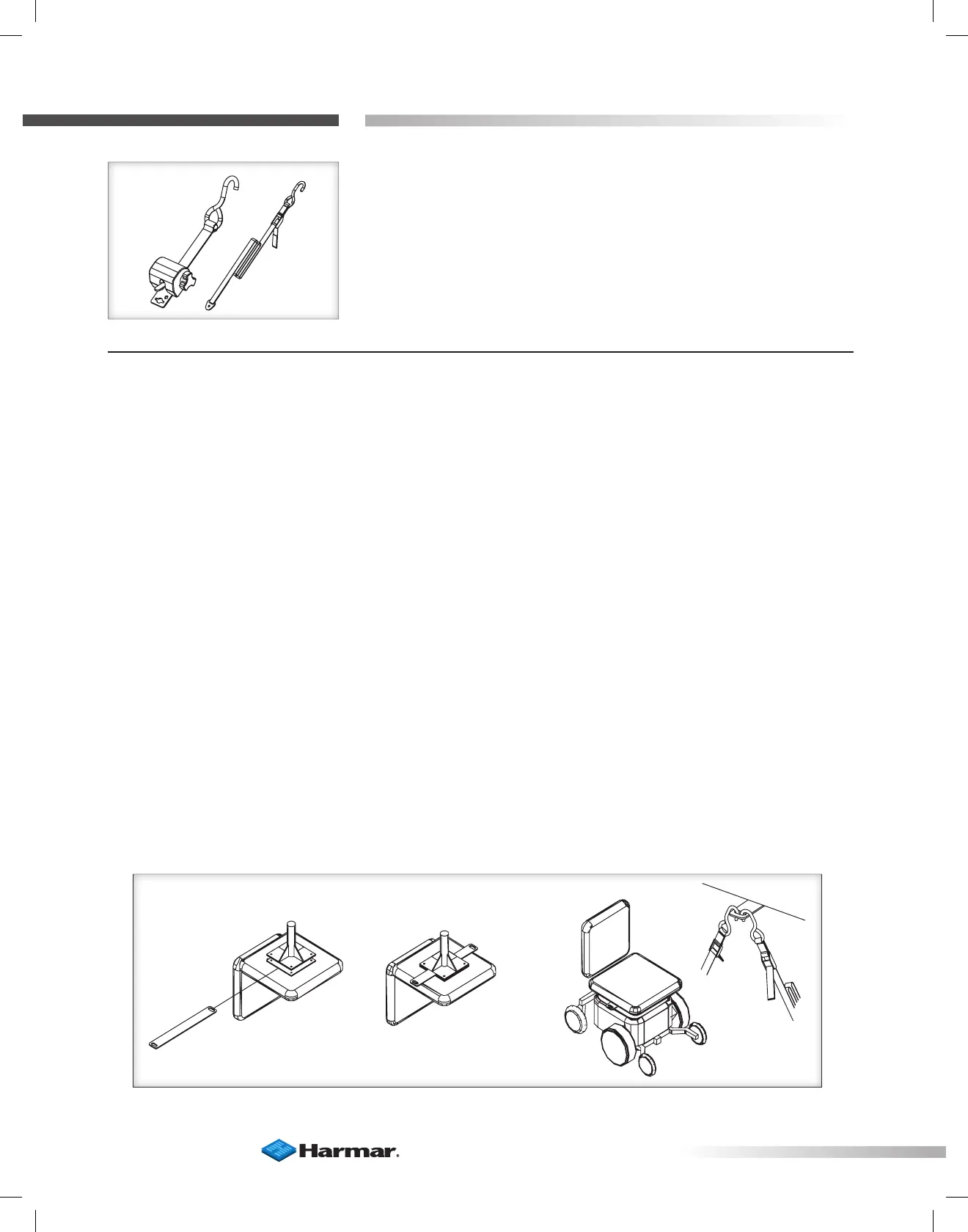

Figure 28-1
Figure 28-2
INSTALLING THE ANCHOR PLATE
1. Remove the seat from the chair.
2. Loosen the screws that attach the
plate of the bottom of the seat. Allow
enough room to slide the Anchor Plate
between the seat and the seat plate.
3. Attach the Anchor Plate in the
center of the seat plate with the holes
on each end extending evenly on each
side of the seat.
4. Re-tighten the screws that hold the seat
plate to the bottom of the seat.
5. Replace the seat on the chair.
[Figure 28-2]
