Harmar Mobility AL030 - Al015

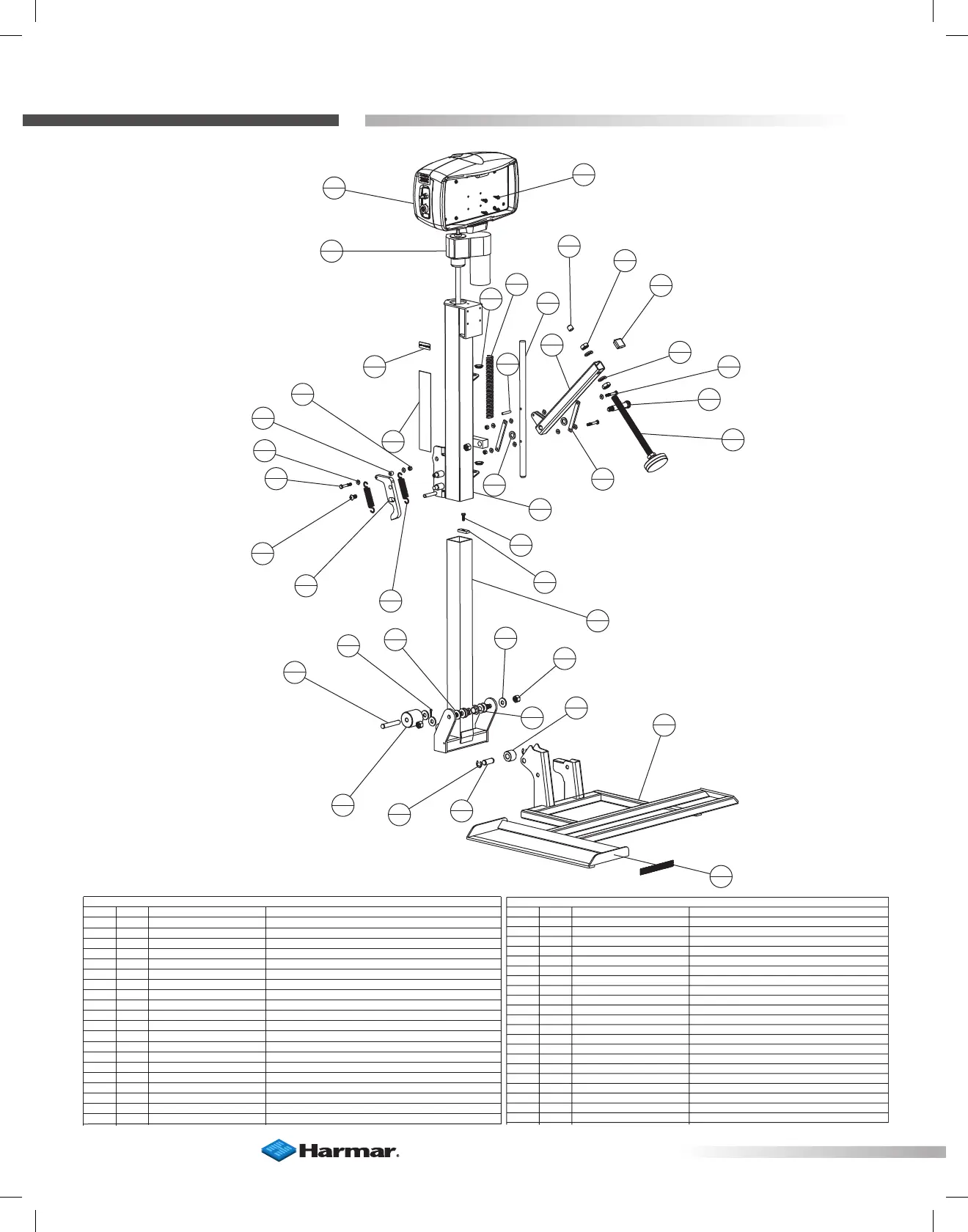

EXPLODED VIEW - AL015
ASSEMBLY PARTS
ASSEMBLY PARTS
ITEM
ITEM
QTY
PART NO.
PART NO.
DESCRIPTION
DESCRIPTION
1 1 201-ZA06-C INNER TUBE
2 1 202-ZA06-C OUTER TUBE
3 1 203-2A39-C GO GO ES PLATFORM
4 1 205-3A06-C HOLD DOWN ARM
5 1 400-2A06-A VINYL CAP FOR 1/2 OD STUD
6 2 502-ZA06-C BAR, LINK, 3/16"
7 1 200-2A01-A MOTOR COVER, ASSEMBLY, OUTSIDE LIFTS
8 1 903-2A36-A LONG HOLD DOWN FOOT
9 1 903-3A03-A .75" X 6.00" RED REFLECTIVE STICKER
10 1 ALA10010REV2 L.C. ACME ACTUATOR
11 1 ALA10032 ROLLER 2" DIA UHMW
12 1 ALA10050 TAB, ACTUATOR
13 1 ALA10095 STICKER, OUTSIDE LIFT
14 1 ALA108-PLT HOLD DOWN ARM ROD
15 2 ALA11025 EXTENSION SPRING
16 1 ALA125SPI INSERTS, 1 1/4 BLACK PLASTIC
17 1 ALA13025 COMPRESSION SPRING
18 2 ALA13030 NYLINEAR BEARINGS - 3/4"
19 2 ALA13050P HOLD DOWN ARM WASHER
20 1 ALA99995 LABEL, SERIAL NUMBER
21 1 BHCS-0_37-16--1_00-SS-NP BUTTON HEAD 3/8-16 x 1.00 SS
22 1 H11010 J-CAM
23 1 H14044 ROLLER
24 1 H14045 CLEVIS PIN
25 1 HHCS-0_25-20--0_75-NP-Z HEX HEAD, 1/4-20 x 0.75, ZP
26 3 HHCS-0_25-20--1_75-Z HEX HEAD, 1/4-20 x 1.75, ZP
27 2 HHCS-0_50-13--2_50-Z HEX HEAD, 1/2-13 x 2.50, ZP
28 4 HWTS-14--0_75-Z HEX WASHER, #14 SELF DRILL, 0.75, ZP
29 3 NUT-0_25-20-NYLOCK-Z NUT, NYLOCK, 1/4-20, ZP
30 3 NUT-0_50-13-NYLOCK-Z NUT, NYLOCK, 1/2-13, ZP
31 2 NUT-0_62-11-JAM-Z NUT, JAM, 5/8-11, ZP
32 1 PIN-0_12--1_50-CO-SS COTTER PIN
33 1 PIN-0_25--1_50-RP-Z ROLL PIN, 1/4 X 1.50, SPLIT, ZP
34 1 PIN-0_50--3_00-CL-Z CLEVIS PIN, 1/2" x 3" L, ZP
35 2 RR-0_62-EC-Z E-CLIP, 5/8" SHAFT
36 1 SHSB-0_62--2_50-Z SHOULDER BOLT, 5/8 DIA x 2.50, ZP
37 1 SPCR-0_25-0_50--0_31-N SPACER, 1/4", for CAM SPRINGS
38 10 WASH-0_25-0_62--0_04-RH-SS WASHER, FLAT, 1/4", SS
39 5 WASH-0_50-1_06--0_08-RH-SS WASHER, FLAT, 1/2", SS
40 4 WASH-0_50-1_50--0_12-N WASHER, FLAT, 1/2", NYLON
41 2 WASH-0_62-1_08--0_15-SL-Z WASHER, SPLIT-LOCK, 5/8 , ZP
1
1
2
1
3
1
4
1
5
1
6
2
7
1
8
1
10
1
11
1
12
1
13
1
14
1
15
2
16
1
17
1
18
2
19
2
20
1
21
1
22
1
23
1
24
1
25
1
26
1
27
2
28
4
29
3
30
3
31
2
32
1
33
1
34
1
35
2
36
1
37
1
38
10
39
5
40
4
41
2
26
2
9
1
42
Section 2 : inStaller
Exploded Views
AL015
