ASSEMBLY PARTS
ITEM QTY
PART NO. DESCRIPTION
1 1 201-2A03-C INNER TUBE
2 1 202-ZA03-C OUTER TUBE
3 1 203-ZA03-C PLATFORM
4 1 204-ZA03-C SPREADER BAR
5 1 500-2A03-A LOCKING TAB - L.C. ACME ACTUATOR
6 1 800-2A03-A L.C. ACME ACUTATOR
7 1 ALA10095 STICKER, OUTSIDE LIFT
8 1 ALA180 HARDWARE PACK
9 1 ALA580 U-BOLT HARDWARE KIT
10 1 ALA58040C ANCHOR PLATE
11 1 ALA99995 LABEL, SERIAL NUMBER
12 1 H00-1A03-A HARDWARE PACK
13 1 200-2A01-A MOTOR COVER ASSEMBLY
14 1 HHCS-0_25-20-0_75-NP-Z HEX HEAD, 1/4-20 x 0.75, ZP
15 4 HWTS-14--0_75-Z HEX WASHER, #14 SELF DRILL, 0.75, ZP
4
1
1
1
6
1
7
1
8
1
9
1
11
1
14
1
3
1
2
1
15
4
10
1
12
1
13
1
5
1

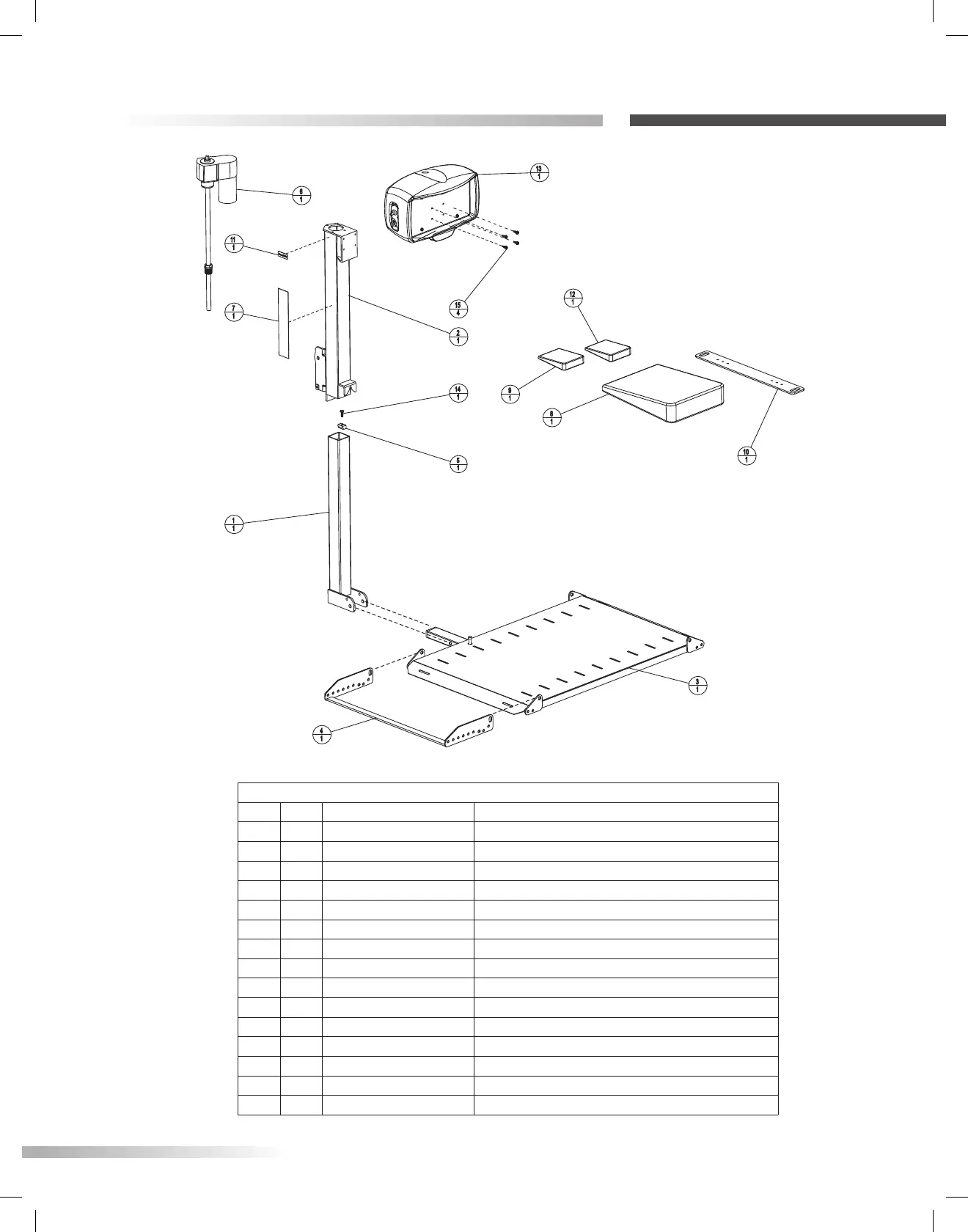

EXPLODED VIEW - AL010/050
27
Outside Lifts - Installation & Owner’s Manual 2013
41
Section 2 : inStaller
Exploded Views
AL010/050
