Harmar Mobility AL030 - Page 18

COIL ANY EXCESS
WIREHERE
DO CUT
OR SHORTEN
NOT
COIL ANY EXCESS
WIREHERE
DO CUT
OR SHORTEN
NOT
18
Section 2 : inStaller
Installatio n
CAUTION!
DO NOT cut or shorten the harness.

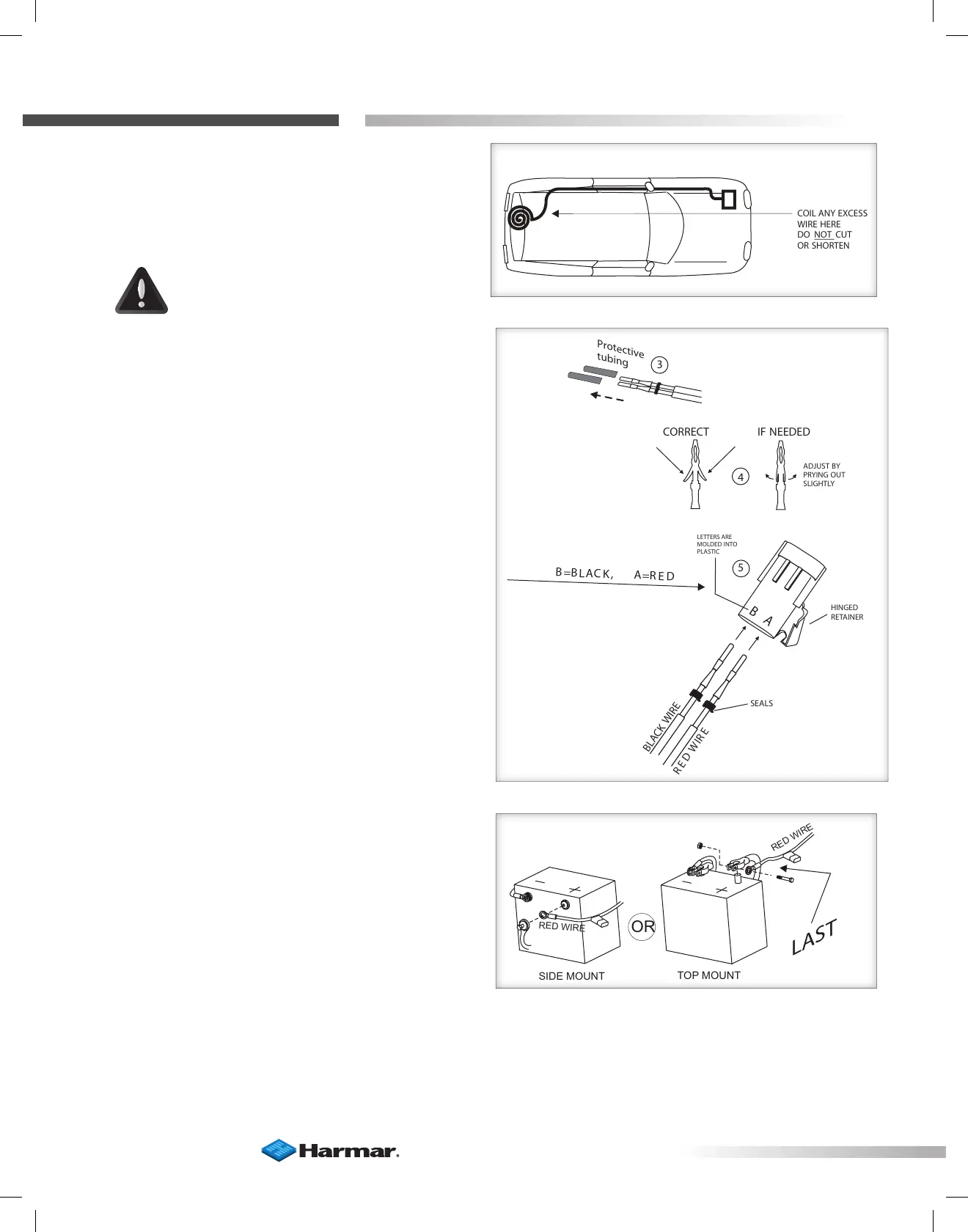

4. Once harness is run into the vehicle,
remove the pin's protective tubing.
5. Inspect the pin's retaining anges.
They may have become deformed while
run through the vehicle. These are critical to
secure the pins inside the connector. Adjust
as needed.
6. Flip open end connector's jigned
retainer, insert pins as shown. [Figure 18-2]
Verify the wires can not be pulled out by
moderately pulling on the wires.
Be sure rubber seals are inside back of
connector and close the hinged retainer.
7. Plug connector into the lift.
8. LAST…attach red wire to the positive
terminal on the battery. [Figure 18-3]
•
If the harness is too long, coil the
excess wire and secure it to the vehicle
frame/bumper with the supplied wire
ties. [Figure 18-1]
RED WIRE
RED WIRE
OR
LAST
SIDE MOUNT
TOPMOUNT
RED WIRE
RED WIRE
OR
LAST
SIDE MOUNT
TOPMOUNT
Figure 18-3
B
=B
L
A
C
K
,
A
=R
E
D
LETTERSARE
MOLDED INTO
PLASTIC
HINGED
RETAINER
A
B
BLACK WIRE
ERIWDER
Protective
tubing
CORRECT
ADJUST BY
PRYING OUT
SLIGHTLY
IF NEEDED
SEALS
3
4
5
B
=B
L
A
C
K
,
A
=R
E
D
LETTERSARE
MOLDED INTO
PLASTIC
HINGED
RETAINER
A
B
BLACK WIRE
ERIWDER
Protective
tubing
CORRECT
ADJUST BY
PRYING OUT
SLIGHTLY
IF NEEDED
SEALS
3
4
5
Figure 18-2
Figure 18-1
