PINCH
BOLT
TUBE
HHCS,
1/2-13x3-1/2or 4""
PressesHitch Adapter
againstreceiver wall
eliminatingrattles,
and lift movement
1/2" Hex
Nyloc Nut
HHCS,
1/2-13x3"
FULLY THREADED
THREADEDHOLE
1/2" Hex
Nyloc Nut
CLASS 2
CLASS 3
PINCH
BOLT
TUBE
HHCS,
1/2-13x3-1/2or 4""
PressesHitch Adapter
againstreceiver wall
eliminatingrattles,
and lift movement
1/2" Hex
Nyloc Nut
HHCS,
1/2-13x3"
FULLY THREADED
THREADEDHOLE
1/2" Hex
Nyloc Nut
CLASS 2
CLASS 3
26
Section 2 : inStaller
Installatio n

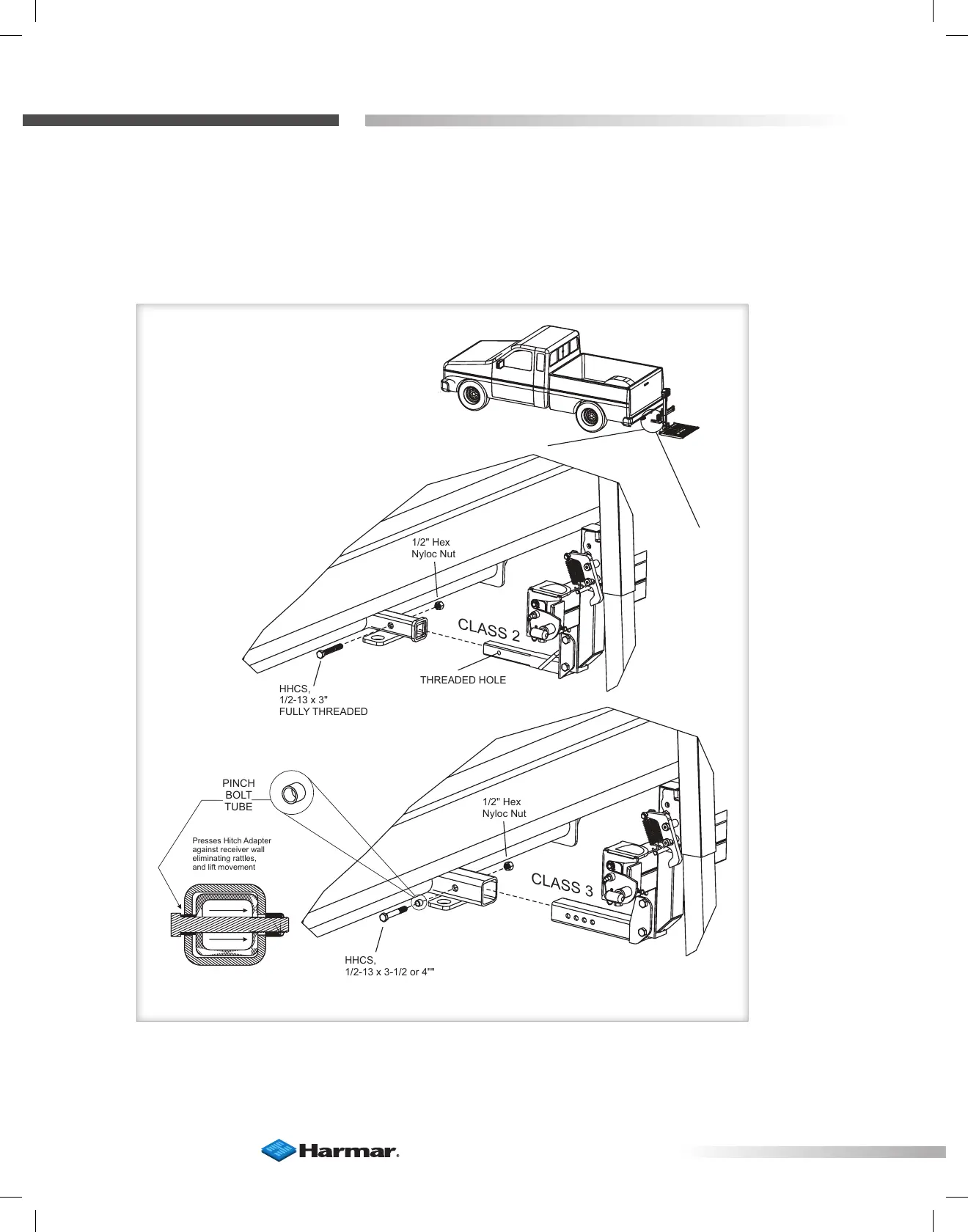

Figure 26-1
2. Slide Hitch Adapter
into vehicle’s hitch receiver.
[Figure 26-1] Fasten Adapter
according to hitch class.
