Loosen top nut
and bottom nut
Adjust threaded rod
to lengthen or
shorten foot
ENDOFTHREADED ROD
MUST PROTRUDE THROUGH
TO TOPOFUPPER NUT
NUT
SPLIT LOC
WASHER
NUT
SPLIT LOC
WASHER
PLATFORMMAY LOOK DIFFERENT
THANONE DEPICTED BASED
ON MODEL.
Loosen top nut
and bottom nut
Adjust threaded rod
to lengthen or
shorten foot
ENDOFTHREADED ROD
MUST PROTRUDE THROUGH
TO TOPOFUPPER NUT
NUT
SPLIT LOC
WASHER
NUT
SPLIT LOC
WASHER
PLATFORMMAY LOOK DIFFERENT
THANONE DEPICTED BASED
ON MODEL.
Outside Lifts - Installation & Owner’s Manual 2013
31
Section 2 : inStaller
Lift Adjustments
AL015, AL100, AL100HD, AL160
LIFT ADJUSTMENTS Con't)
7. Tighten the jam nut to lock it in place, when
the foot is positioned properly.
When the lift is properly adjusted, lower the platform
to the ground and raise it back to the transporting
position. Repeat this several times to ensure all parts
operate properly and that the scooter is well secured.
Next, remove the scooter from the lift and, using the
toggle switch, cycle the lift completely up and down to
make sure that all parts are in good working order and
the lift folds when it is empty.

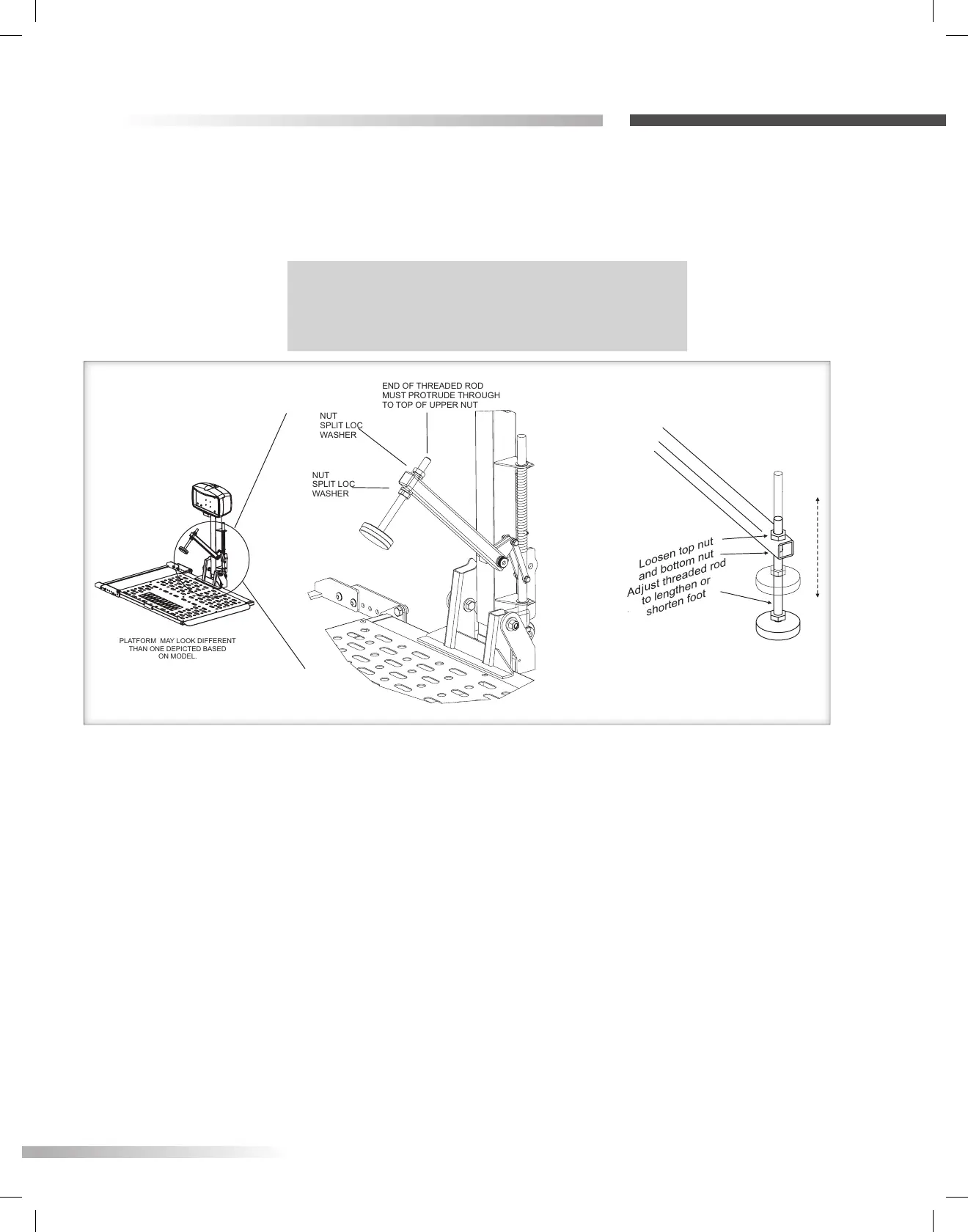

NOTE: When adjusting the leg down, ensure
that the top of the threaded rod still protrudes
from the top of the pivot tube. [Figure 31-1]
Figure 31-1
