Harmar Mobility AL350 - Hitch Adapters and Mounting

AL1265
4” Drop Class 2
AL1235
5” Drop Class 3
H128
Class 2 Short
AL127
Class 2 Extralong
AL126
Standard Class2
AL1232
2” Drop Class 3
H124
Class 3 Short
AL125
Class 3 Extralong
AL123
Standard Class 3
AL1265
4” Drop Class 2
AL1235
5” Drop Class 3
H128
Class 2 Short
AL127
Class 2 Extralong
AL126
Standard Class2
AL1232
2” Drop Class 3
H124
Class 3 Short
AL125
Class 3 Extralong
AL123
Standard Class 3
1-1/4"
1-1/4"
CLASS2
2"
2"
CLASS3
1-1/4"
1-1/4"
CLASS2
2"
2"
CLASS3
Bumper distance is the length from the
trailer hitch's bolt hole to the rear most
point on the vehicle.
Hitch Height is the distance from
reviecerhctihehtfomottobeht
to the ground
BUMPER
DISTANCE
HITCH
HEIGHT
GROUND
Bumper distance is the length from the
trailer hitch's bolt hole to the rear most
point on the vehicle.
Hitch Height is the distance from
reviecerhctihehtfomottobeht
to the ground
BUMPER
DISTANCE
HITCH
HEIGHT
GROUND
H128
Class2Short
H124
Class 3 Short
X
For shallow hitches,
ex.Spare Tire blocked hitches,
a short Hitch Adapter
maybe required.
SOME
AL126
Standard Class2
AL123
Standard Class3
X=0-7.5" X=7.5"-10" X=10"-13.5"
AL127
Class2Extra long
AL125
Class3Extra long
AL125
Class3Extra long
3SSALC
2SSALC
Pleasecontact
Harmar's Technical
ServiceDept.
IF:
H128
Class2Short
H124
Class 3 Short
X
For shallow hitches,
ex.Spare Tire blocked hitches,
a short Hitch Adapter
maybe required.
SOME
AL126
Standard Class2
AL123
Standard Class3
X=0-7.5" X=7.5"-10" X=10"-13.5"
AL127
Class2Extra long
AL125
Class3Extra long
AL125
Class3Extra long
3SSALC
2SSALC
Pleasecontact
Harmar's Technical
ServiceDept.
IF:
19

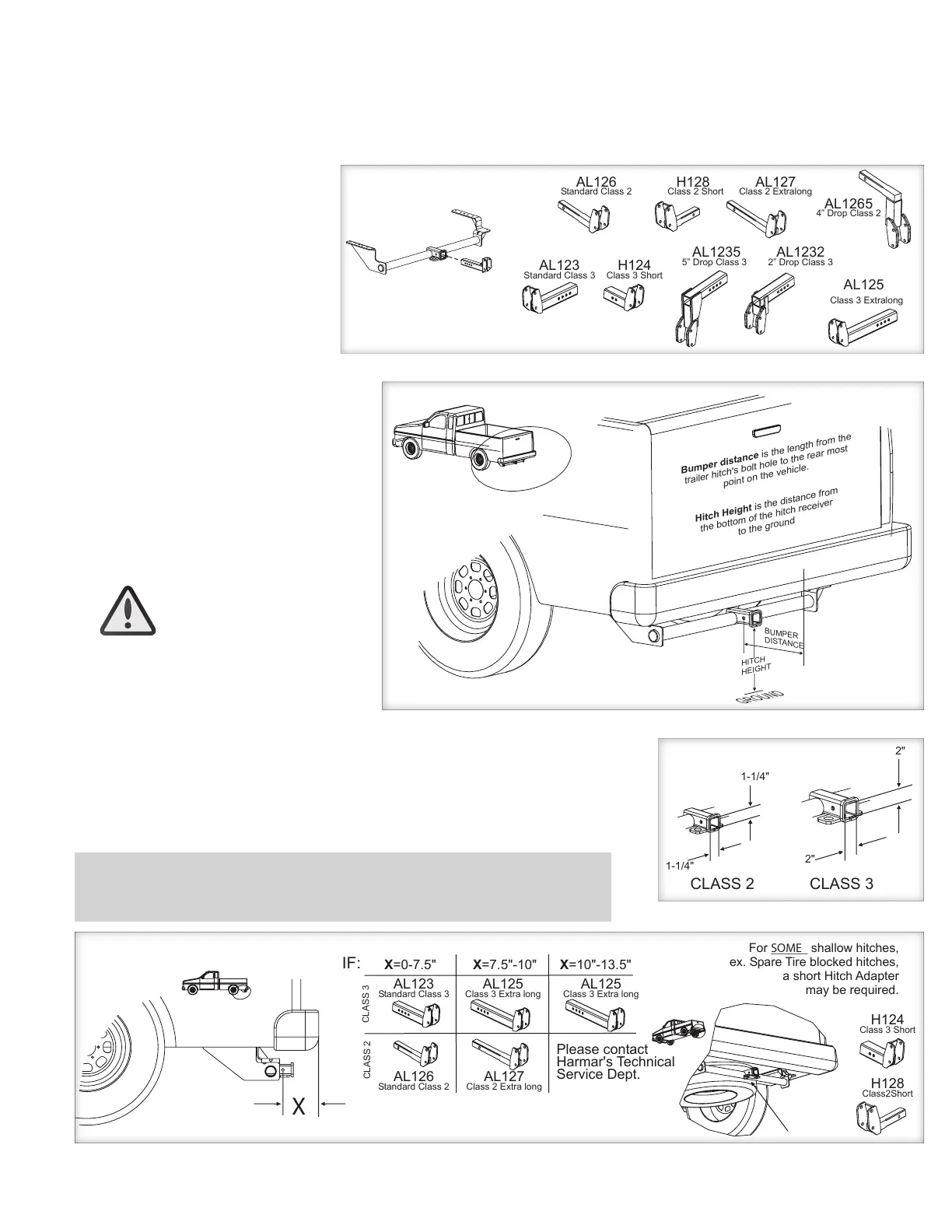

SECTION 2 : INSTALLER
Installation
HITCH ADAPTERS
The Hitch Adapter plugs into the
vehicle’s trailer hitch and serves
as the interface between the
lift and vehicle. Hitch adapters
are designed for the needs of
different vehicles. Some are
shown in. [Figure 19-1]
Selecting a Hitch Adapter
To determine the Hitch Adapter
that will ensure proper lift
operation, first determine the
Hitch Class. Measure the Bumper
Distance and the Hitch Height.
[Figure 19-2]
N
OTE: Some shallow hitches, ex. Spare tire blocked hitches,
may require a short Hitch Adapter. [Figure 19-4]
Figure 19-3
Figure 19
-1
Figure 19-2
WARNING!
Harmar lifts
require Harmar-
approved hitch
adapters. Hitch Expanders
and Extenders are strictly
prohibited – using them or any
other aftermarket accessory
may result in damage to the
vehicle, lift, and/or personal
injury to the user.
Hitch Class is usually printed on the
trailer hitch. Y
ou can also determine
it by measuring the inside of the
receiver on the trailer hitch as
shown. [Figure 19-3]
AL350 Hitch-Mounted Scooter and Power Chair Lift
Figure 19
-4
P/N: 610-00065 Rev A
