6
SECTION 1 : OWNER
Operating Your Lift

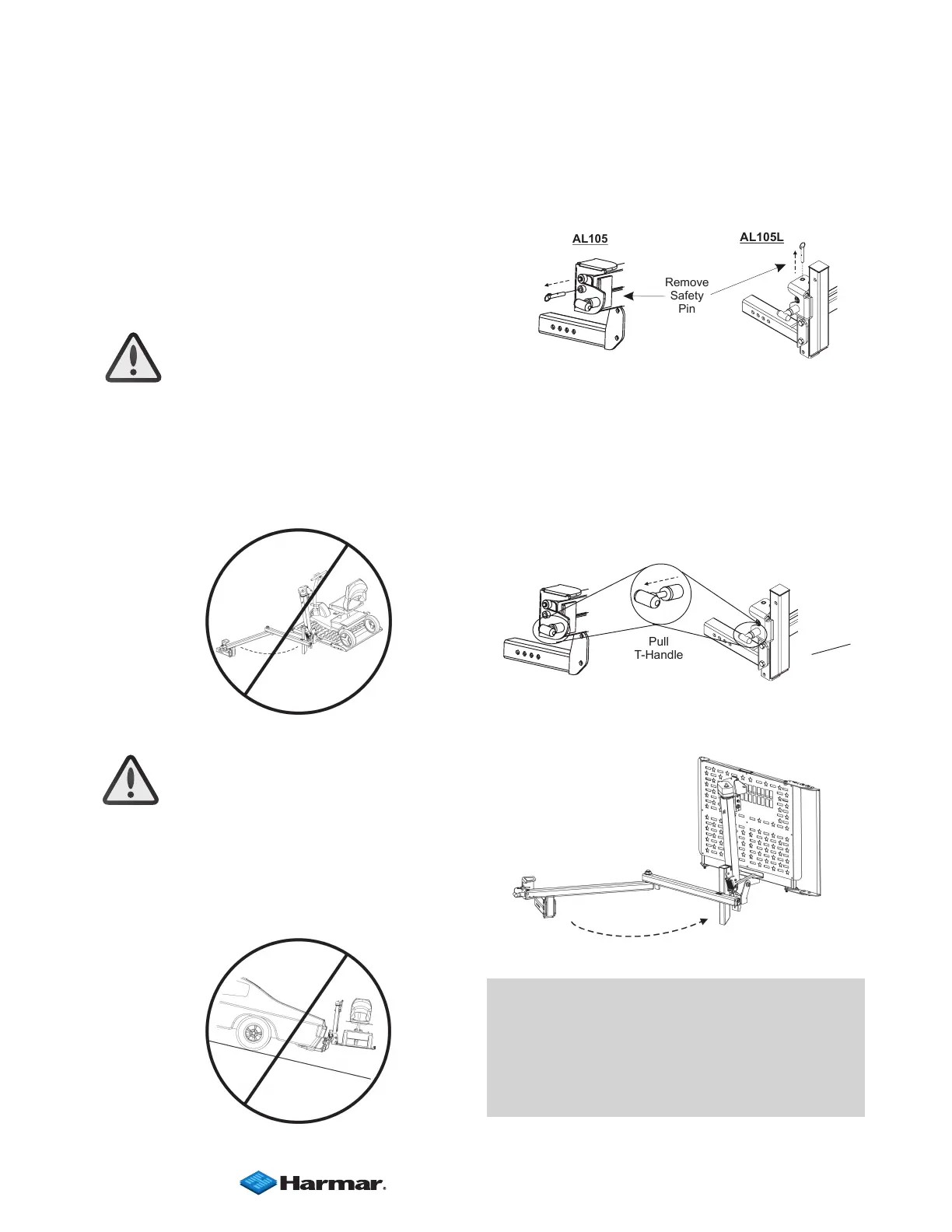

SWING-AWAY
The Swing-Away allows you to easily swing the
installed auto lift away from the back of the
vehicle for convenient access to the trunk or lift
gate. The Swing-Away option can be purchased
from an authorized dealer and added at any time.
NOTE: Two Swing-Away mod
els are available,
a standard AL105 and the lightweight
AL105L. They work basically the same way
but the parts differ slightly as noted in
[Figure 6-3].
Figure 6-2
WARNING
NEVER open the Swing-Away
with the chair on the lift.
You will damage the Swing-
Away and the lift. It will
potentially damage the vehicle
and the chair. Any of these
actions will VOID your warranty.
Figure 8-4
AL105
AL105L
Remove
Safety
Pin
Figure 6-3
Figure 6-5
OPENING THE SWING-AWAY
1. Remove Safety Pin [Figure 6-3]
2. Pull
T-Handle [Figure 6-4]
•
Grasp the lift rmly and swing it out, away
from the vehicle. The Swing-Away can be
opened up to 180 degrees from the closed
position to allow full access to the
vehicle’s cargo area. [Figure 6-5]
WARNING
Figure 6-1
O
pen ONLY on Level Ground
Failure to open on level
ground may result in losing
control of the lift, resulting in
personal injury or damage to
property.
| www.harmar.com | 800-833-0478
