SECTION 2 : INSTALLER
Preparation
INSTALLATION OVERVIEW
3. Determine / Install Hitch Height / Adapter. Measure the
hitch to ground distance so you can save time by selecting
components that fit between lift and vehicle so as to
maintain proper ground clearance. See pages 19-20. Install
Hitch Adapter that fits the application. Install Hitch Post
(shown) or swing-away. See pages 21-24.
Figure 13
-1
Never attempt to pick up the lift from the box,
ground or on/off a vehicle alone.
If you follow the proper installation procedure, no
heavy lifting will be needed, and the lift practically
installs itself.
Read & understand this Manual prior
to installation or operation.
Knowing the lift’s adjustments and the tips on proper installation
techniques will save time, energy and avoid possible injury. If you
do not understand any portion of installation or operation, please
consult our technical service department or authorized mobility
dealer.
Quick Reference – Installation Procedure
1. Wire the Vehicle. See page 15.
Installing the wiring harness first will ensure you have power
to the lift during installation. This allows the motor to do the
lifting for you. (If you skip this step, use a shop battery.)

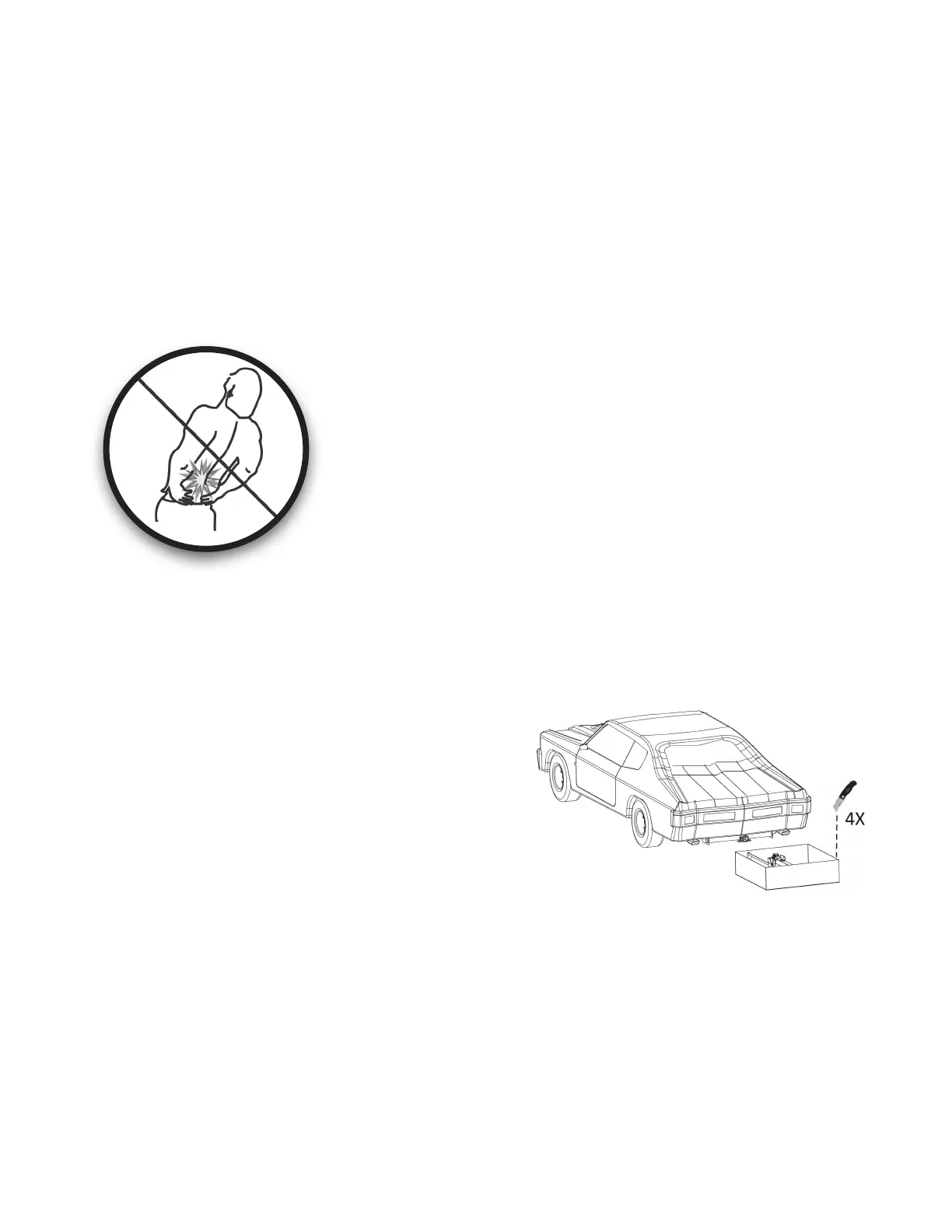

2 . Position th e
open box behin d
the vehicle. Sli ce
the corner seams.
[Figure 13-1]
AL350 Hitch-Mounted Scooter and Power Chair Lift P/N: 610-00065 Rev A
