Harmar Mobility AL350 - Page 24

PINCH
BOLT
TUBE
HHCS,
1/2-13x3-1/2or 4""
PressesHitch Adapter
againstreceiver wall
eliminatingrattles,
and lift movement
1/2" Hex
Nyloc Nut
HHCS,
1/2-13x3"
FULLY THREADED
THREADEDHOLE
1/2" Hex
Nyloc Nut
CLASS 2
CLASS 3
PINCH
BOLT
TUBE
HHCS,
1/2-13x3-1/2or 4""
PressesHitch Adapter
againstreceiver wall
eliminatingrattles,
and lift movement
1/2" Hex
Nyloc Nut
HHCS,
1/2-13x3"
FULLY THREADED
THREADEDHOLE
1/2" Hex
Nyloc Nut
CLASS 2
CLASS 3
24
SECTION 2 : INSTALLER
Installation
Figure 24-1

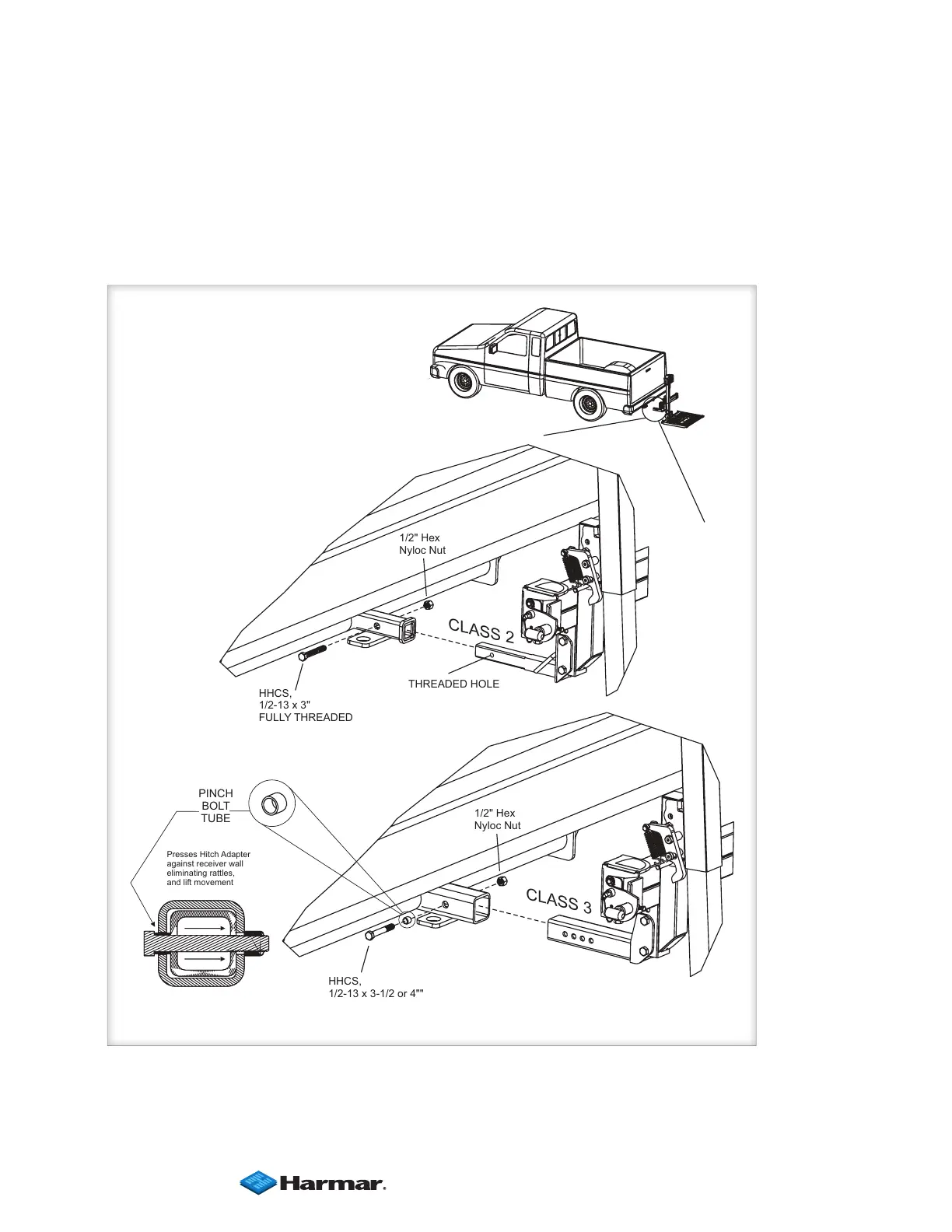

2. S
lide Hitch Adapter
into vehicle’s hitch
receiver.[Figure 24-1] Fasten
Adapter according to hitch
class.
| www.harmar.com | 800-833-0478
