AL625 Page 12
REV: 1-24-12
STEP 6

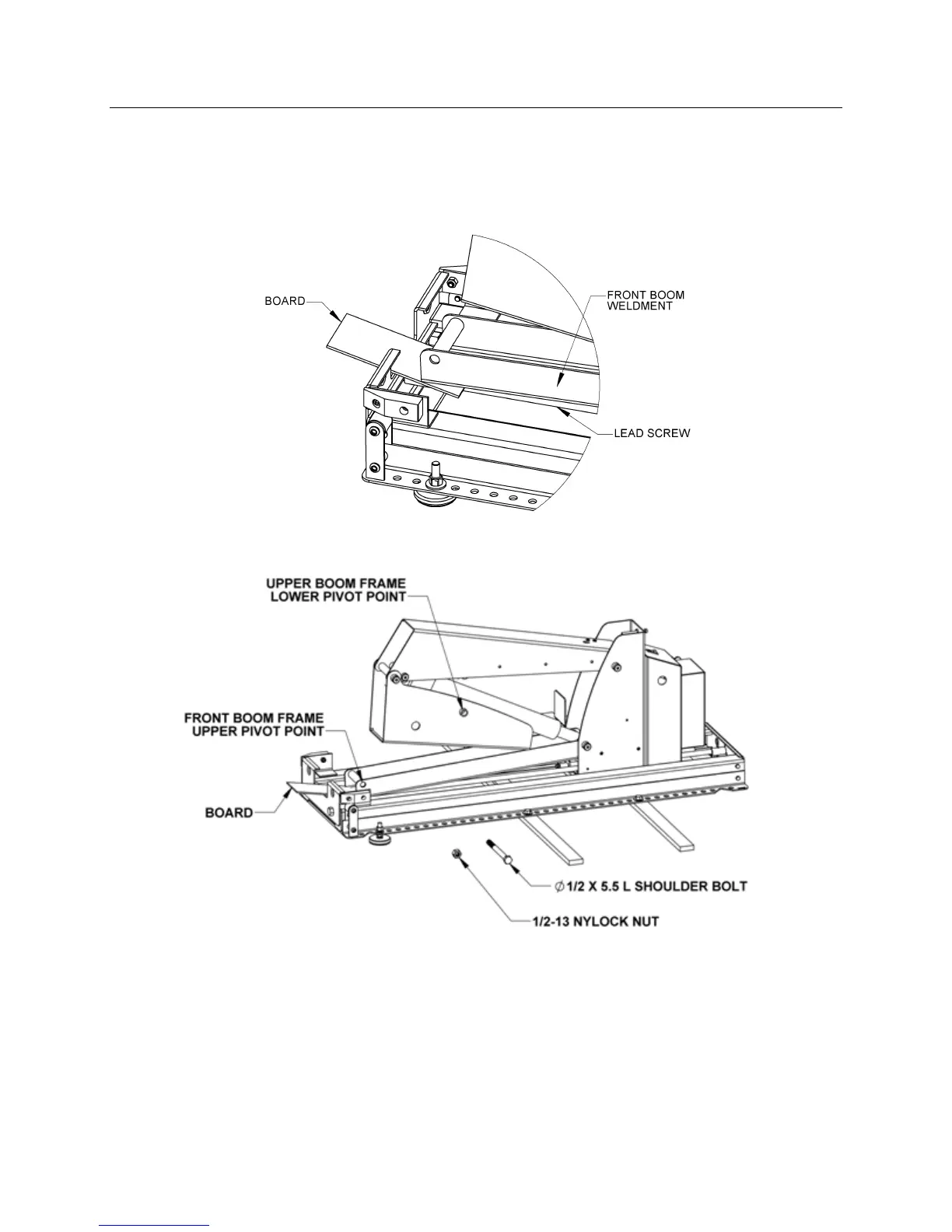

RAISE THE BOOM AND INSTALL THE BOLT
Have an assistant hold the front boom up off the lead screw OR put a small board under the front boom to prop it up
off of the lead screw/collar assembly; this will avoid plowing the front boom into the end of the track if you
accidentally press OUT instead of IN.
Now, using the pendant to control the lift, press “IN” to extend the actuator.
CAUTION: As you are raising the lift, watch the boom head to make certain it will not contact the roof of the
cargo area.
